KOLBUS KM 600

KOLBUS Perfect Binding Line KM 600

year 2011

A Kolbus KM 600 perfect binder is suitable for the production of perfect bound products

like brochures, journals, magazines and catalogues.

Overview:

ZU 804 gathering machine

KM 600 perfect binder

transport and drying line

HD 143.P high capacity three knife trimmer

Configuration:

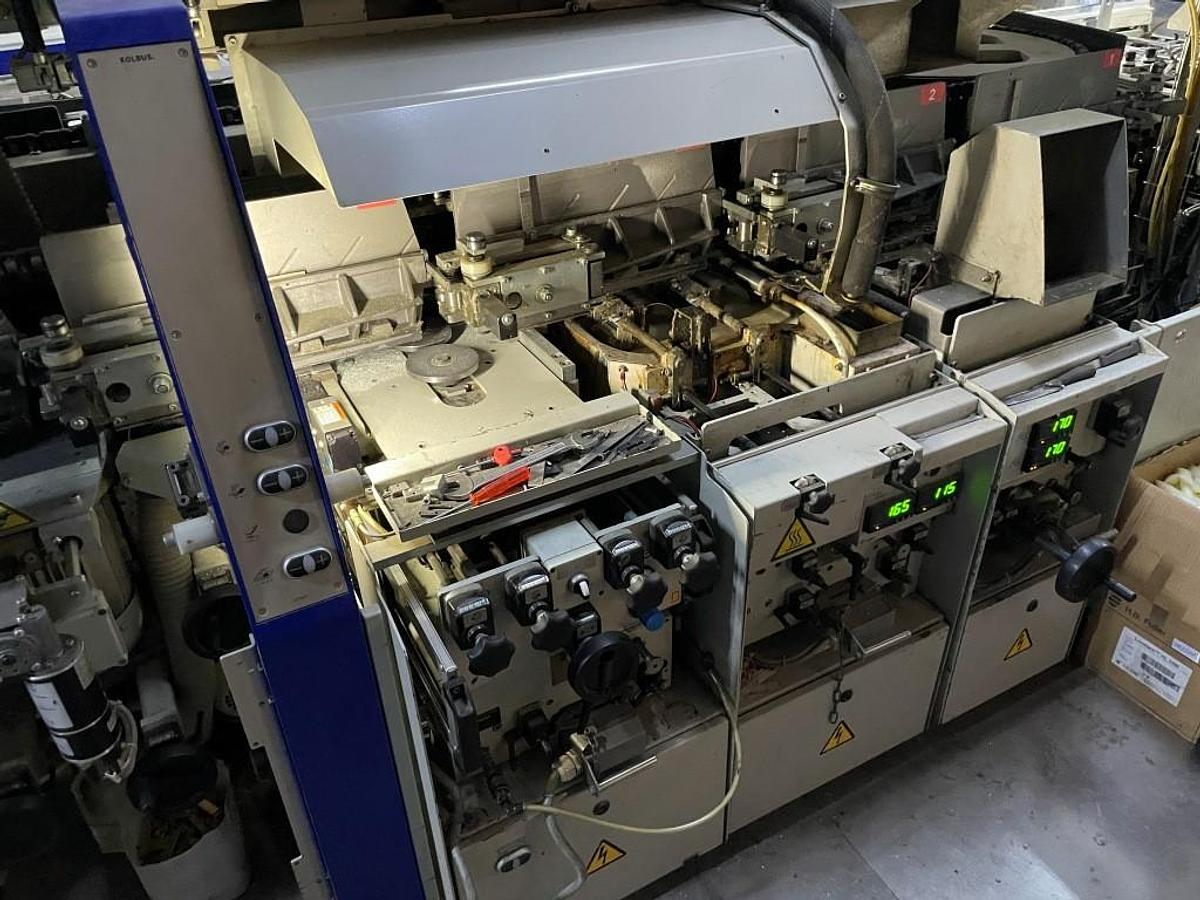

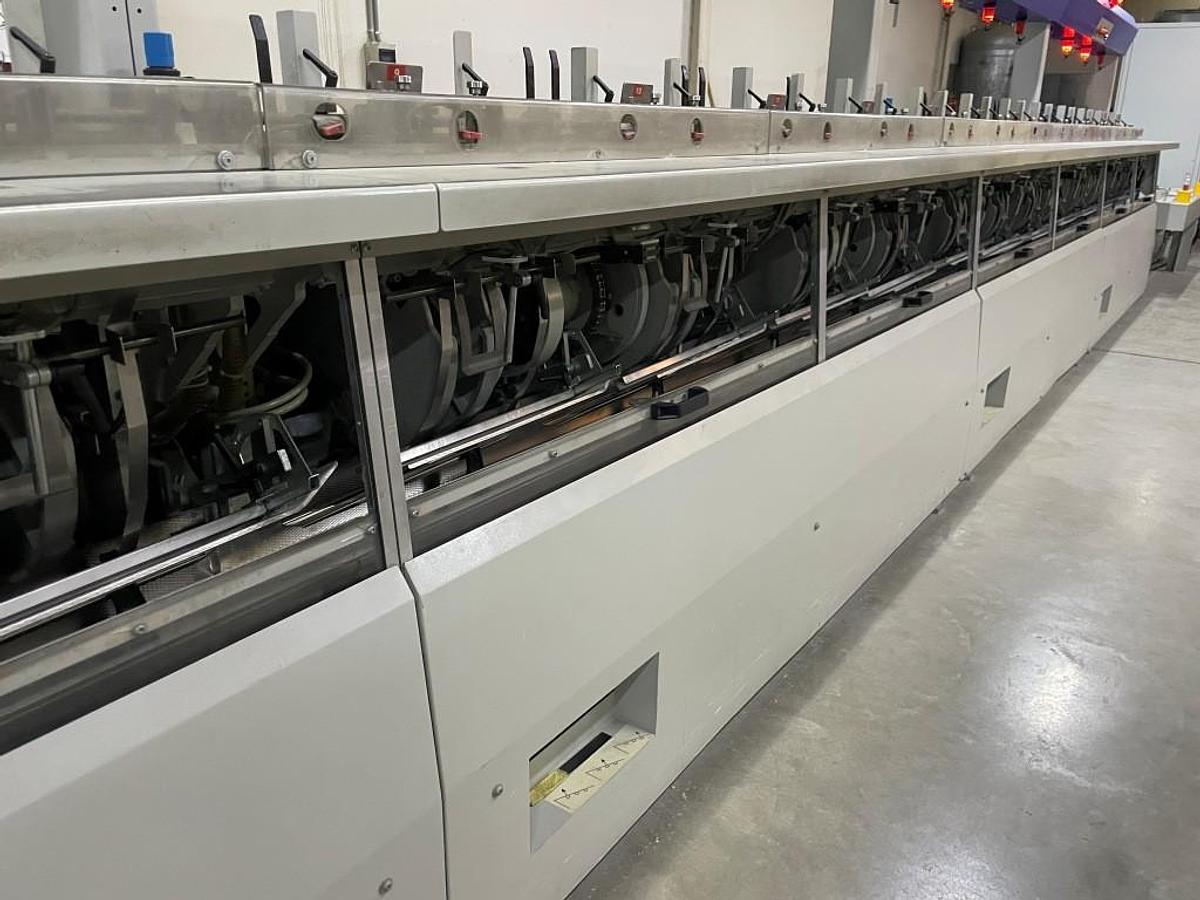

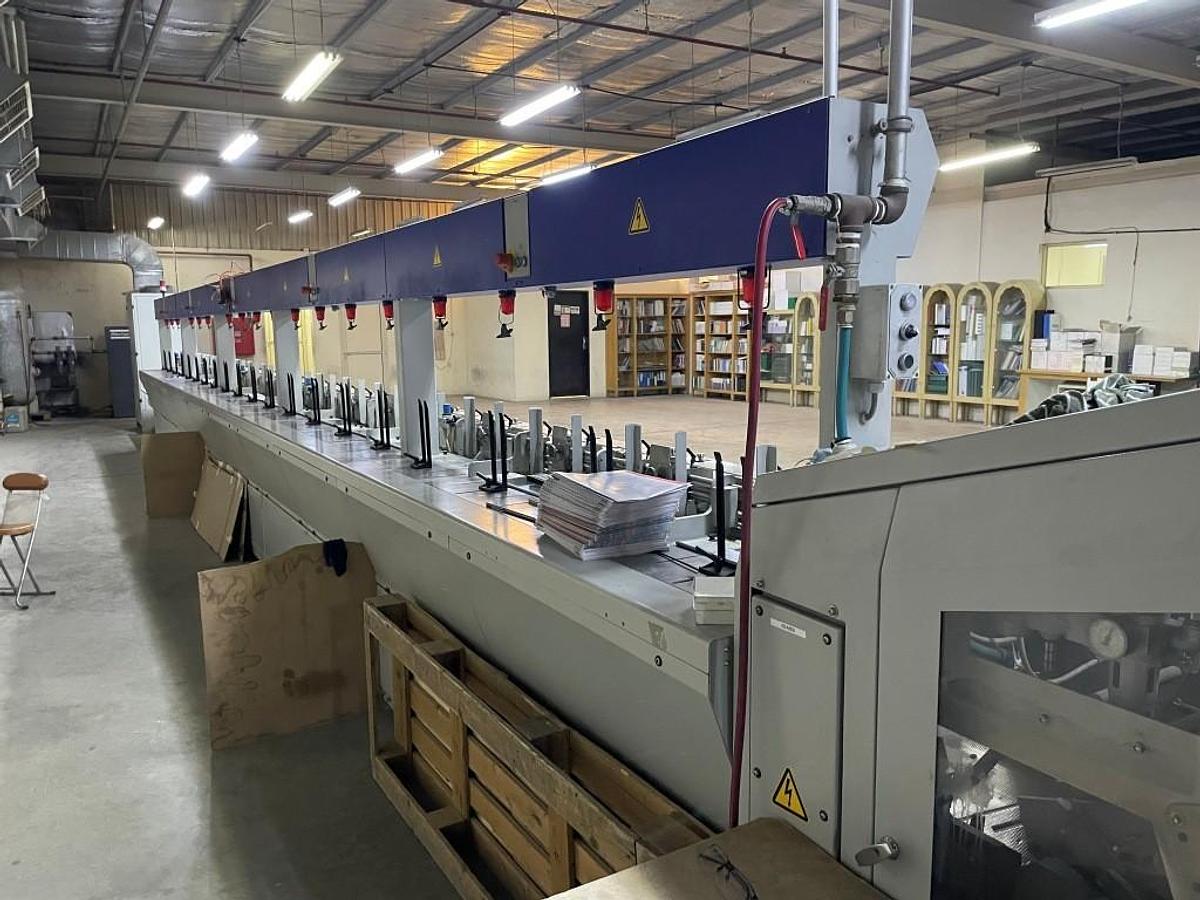

ZU 804 gathering machine

• handfeeding station
• 20 stations basic frame
• 20 feeders with signature recognition system SignaLynx
• reject unit AS 800 to the right
• transfer channel with integrated jogging station as connecting unit to the binder
• BECKER air center

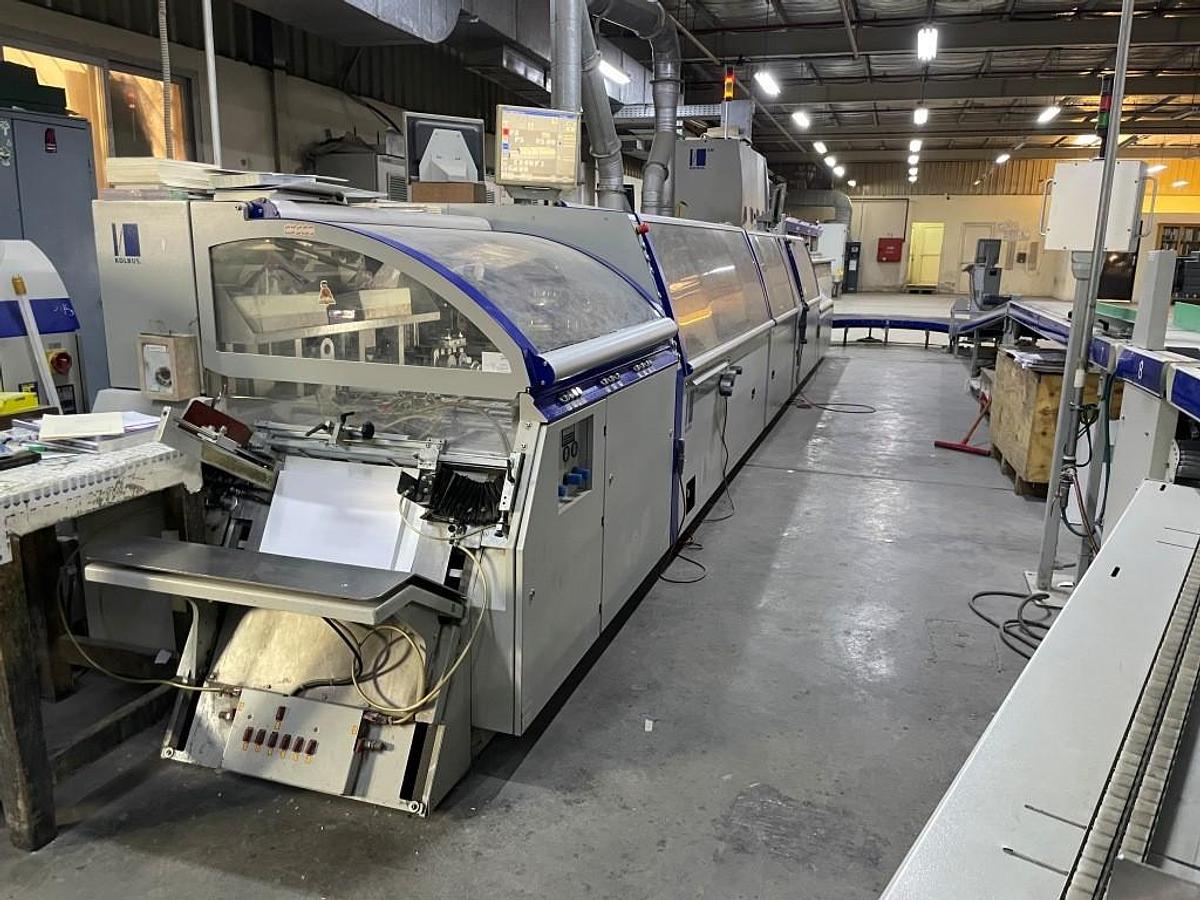

KM 600 perfect binder

• Copilot system with touchscreen monitor
• 21 clamps
• infeed incl. coupling to a ZU gathering machine
• main milling station
• 2 spine preparing units
• brushing station
• without dust extraction system (machine was connected to a central dust extraction system)
• spine gluing station
• hotmelt spine gluing unit, interchangeable
• premelter LH 375.B
• side gluing station
• hotmelt side gluing unit, interchangeable
• IR heating at curve
• rotary cover feeder RA 49.A
• double sheet control
• scoring station for 4 scores
• 2 pressing station
• straight delivery
• lay down device to the left

(counter approx. 12,9 mio. products)

Technical specifications:

mechanical speed: up to 7.000 cycles/h

size range max.: 320 x 383 x 60 mm

size range max.: 190 x 460 x 60 mm

size range min.: 100 x 105 x 3 mm

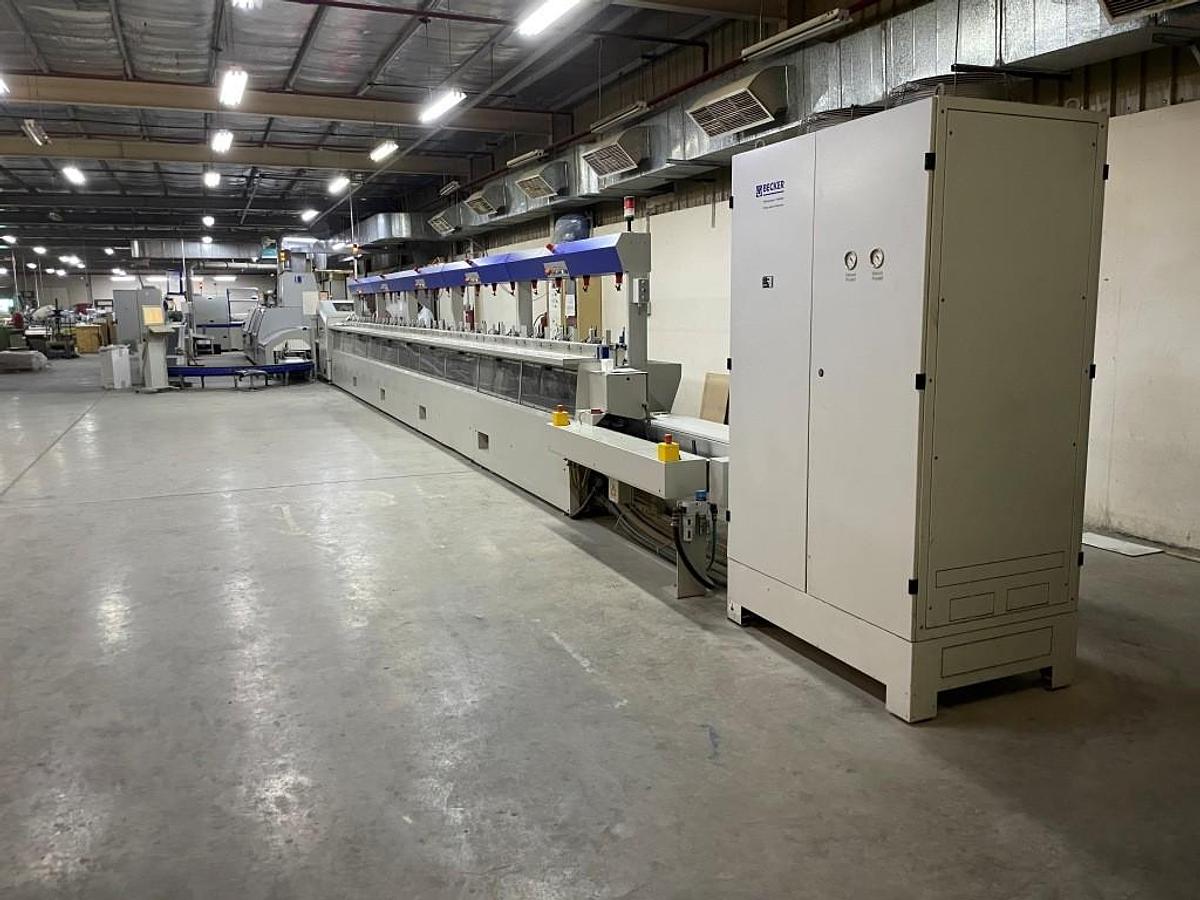

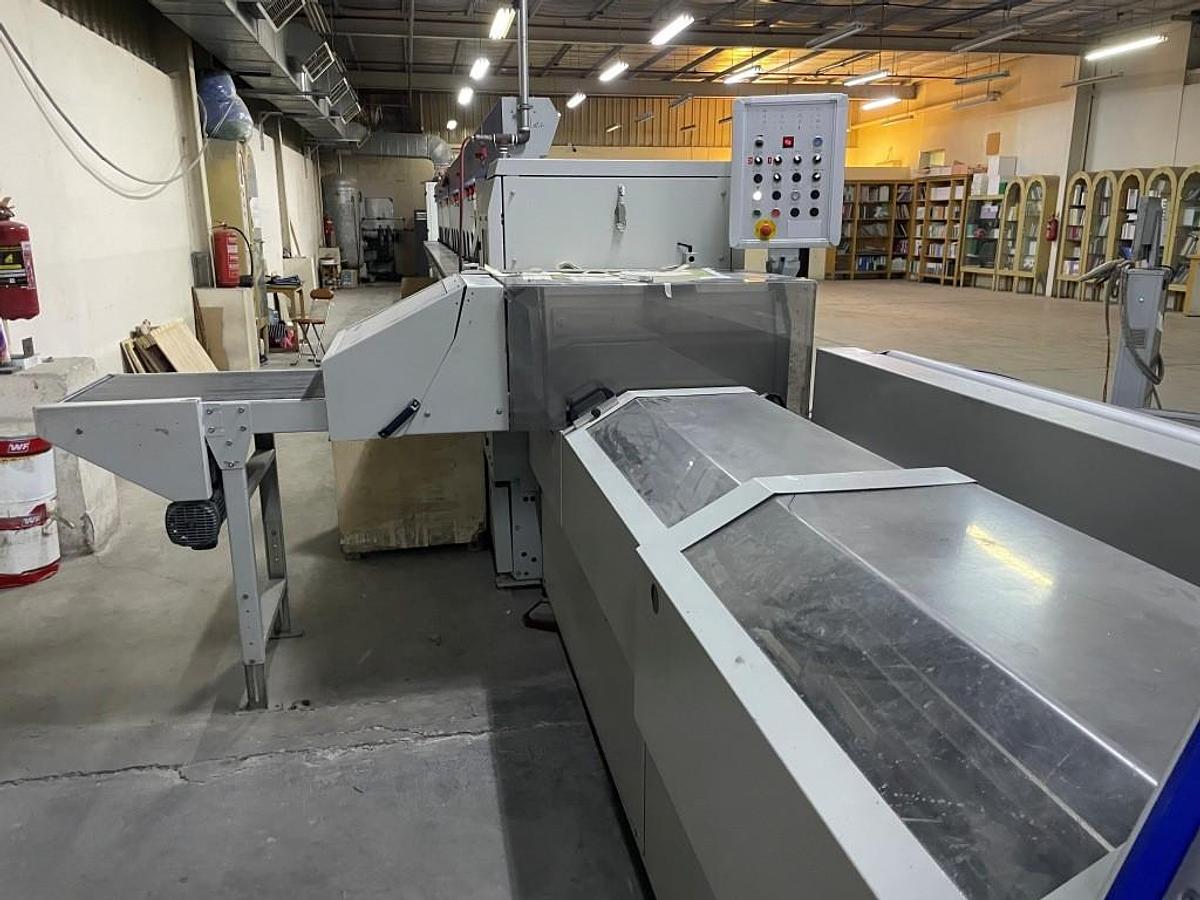

transport and drying line

• length: approx. 20 meters
• incl. emergency delivery TS.ZM with roll conveyor TS.RL

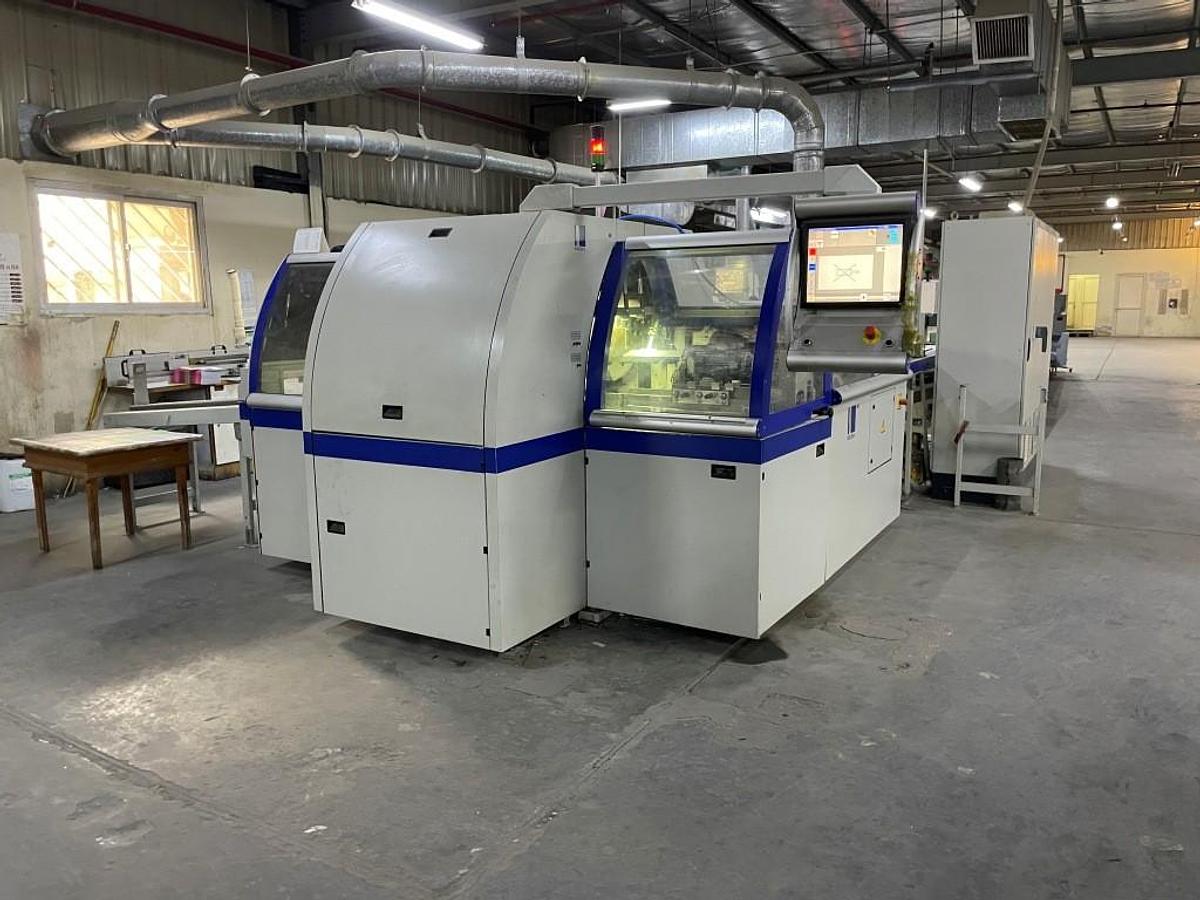

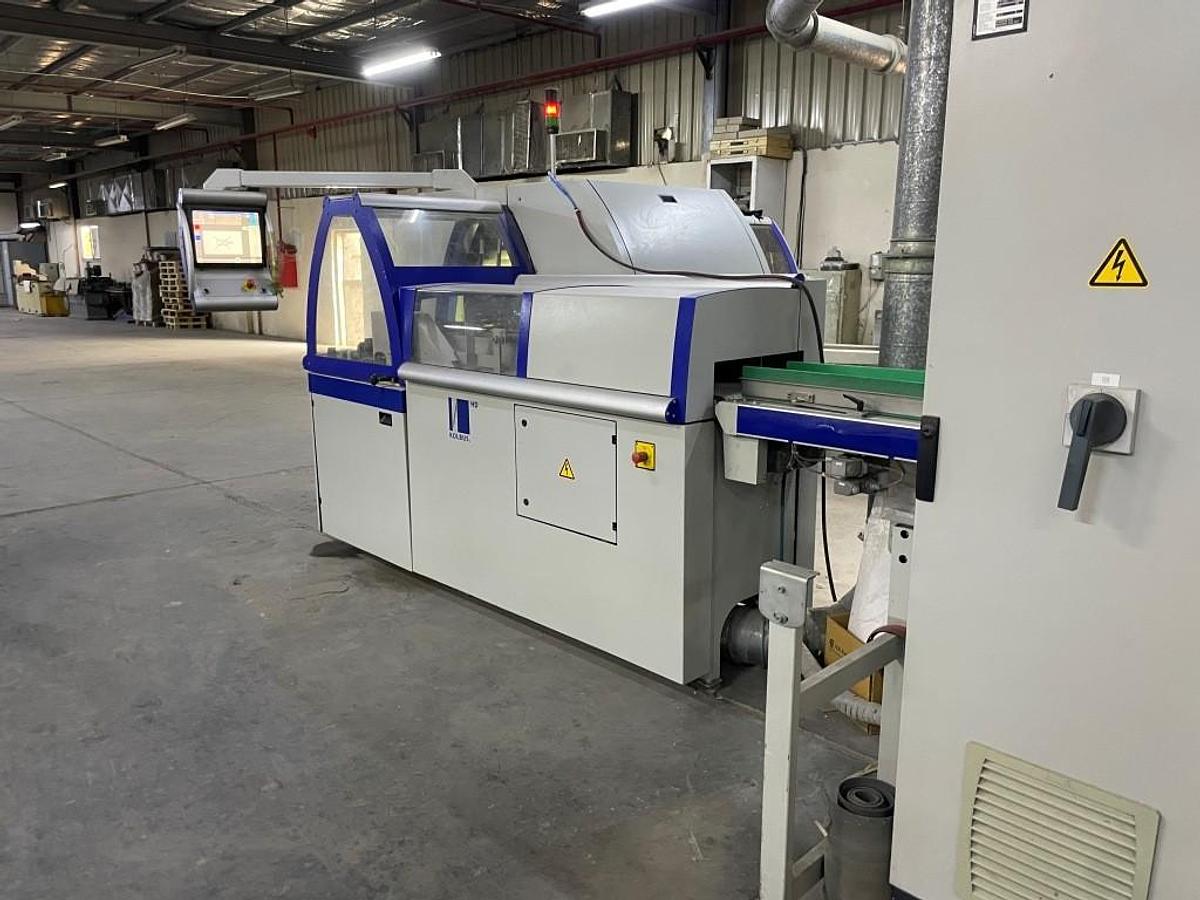

HD 143.P high capacity three knife trimmer

• Copilot with touch screen monitor
• right hand infeed
• standard cutting tables (no. 4 - 18)
• knife setting gauge
• cut counter

Special equipment:

• silicon-spraying device
• 2 set of knives
• delivery with roll conveyor TS.RL
• control of the transport and drying line

(counter approx. 12,6 mio. products)

Technical specifications:

mechanical speed: up to 4.200 cuts/h

size range cutted max.: 305 x 420 x 80 mm

size range cutted min.: 100 x 100 x 2 mm

size range uncutted max.: 320 x 450 x 80 mm

stack height max.: 80 mm

Option:

SH Side Stitching Unit

The side stitching unit is an additional accessory for the KM 600 perfect binder

and can be installed between the spine preparing and gluing unit in the binder.

Technical specifications:

mechanical speed: up to 6.000 cycles/h
