MULLER MARTINI CORONA C15 S/35

MULLER MARTINI Perfect Binding Line CORONA C15 S/35

year 2009

Overview:

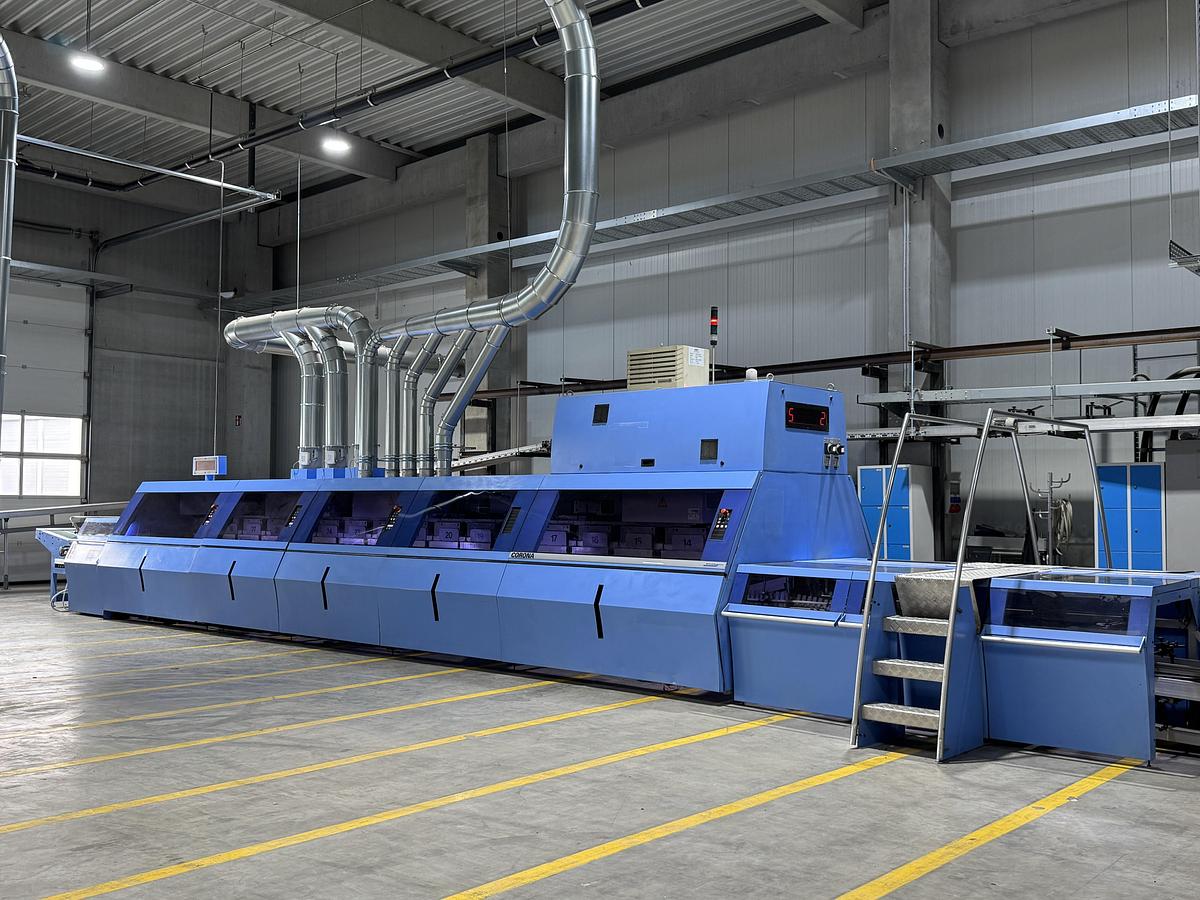

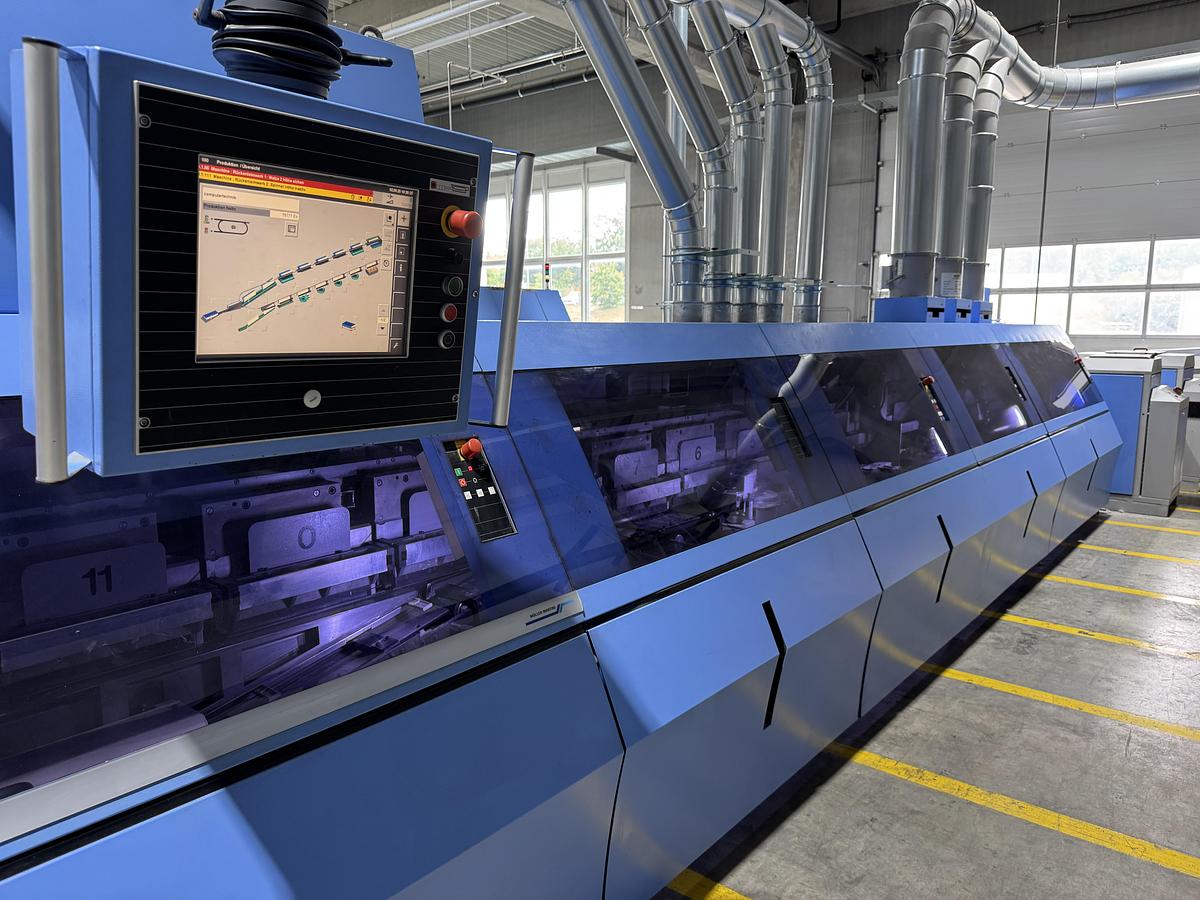

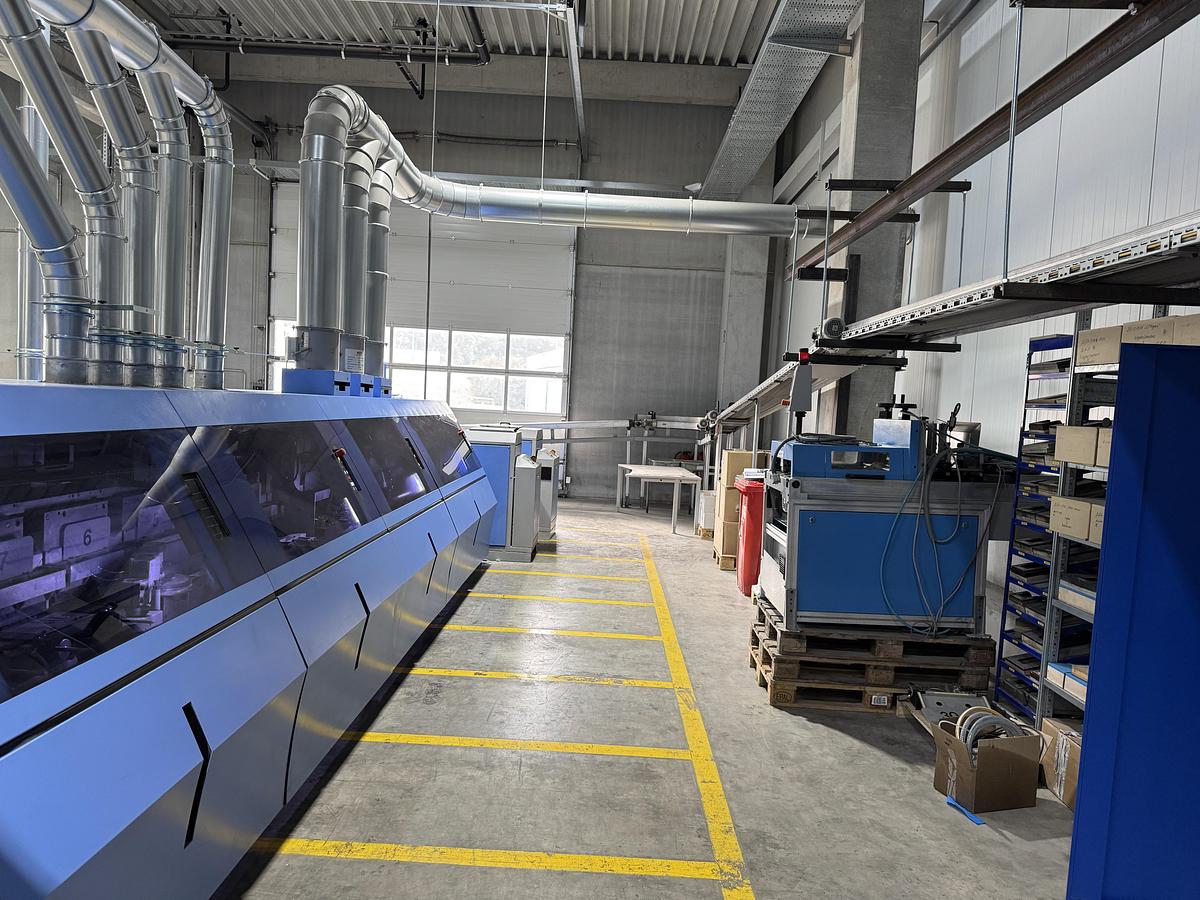

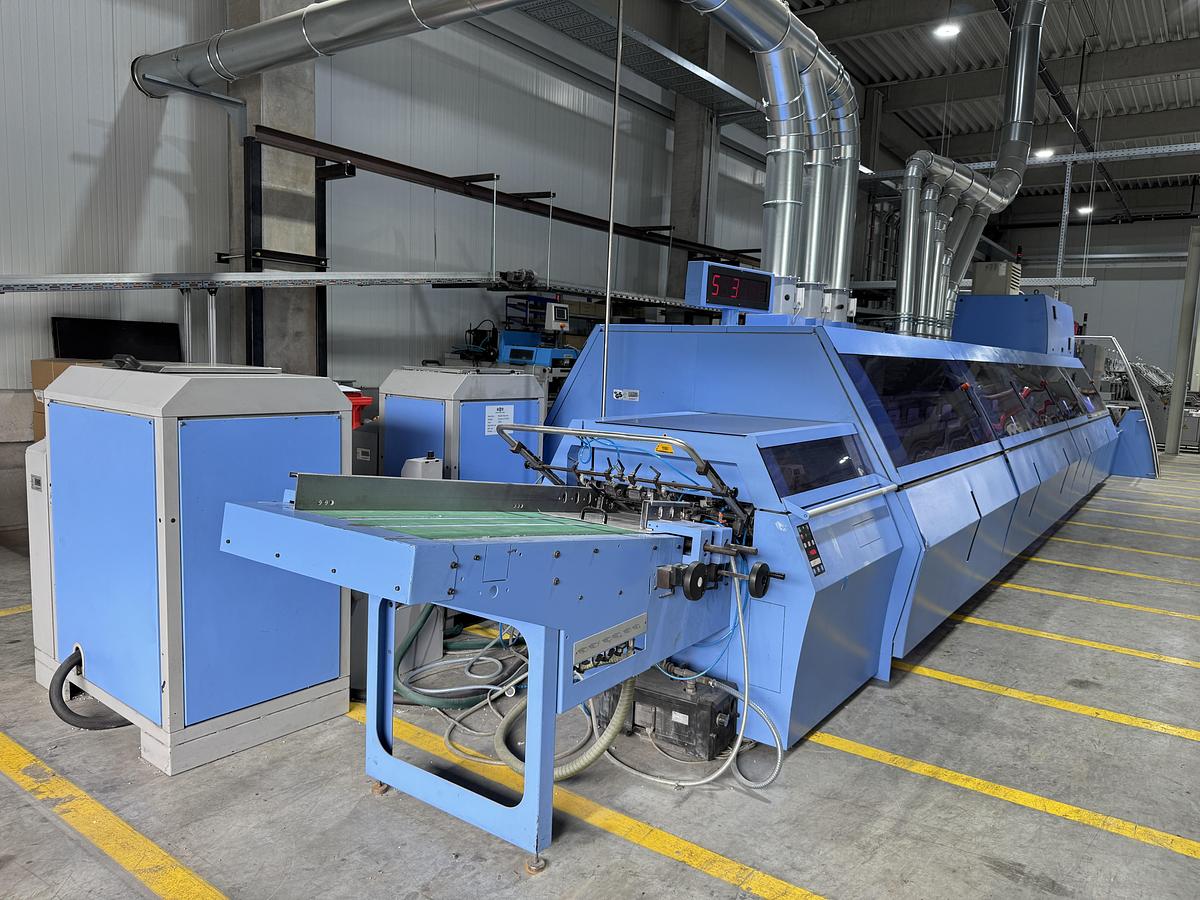

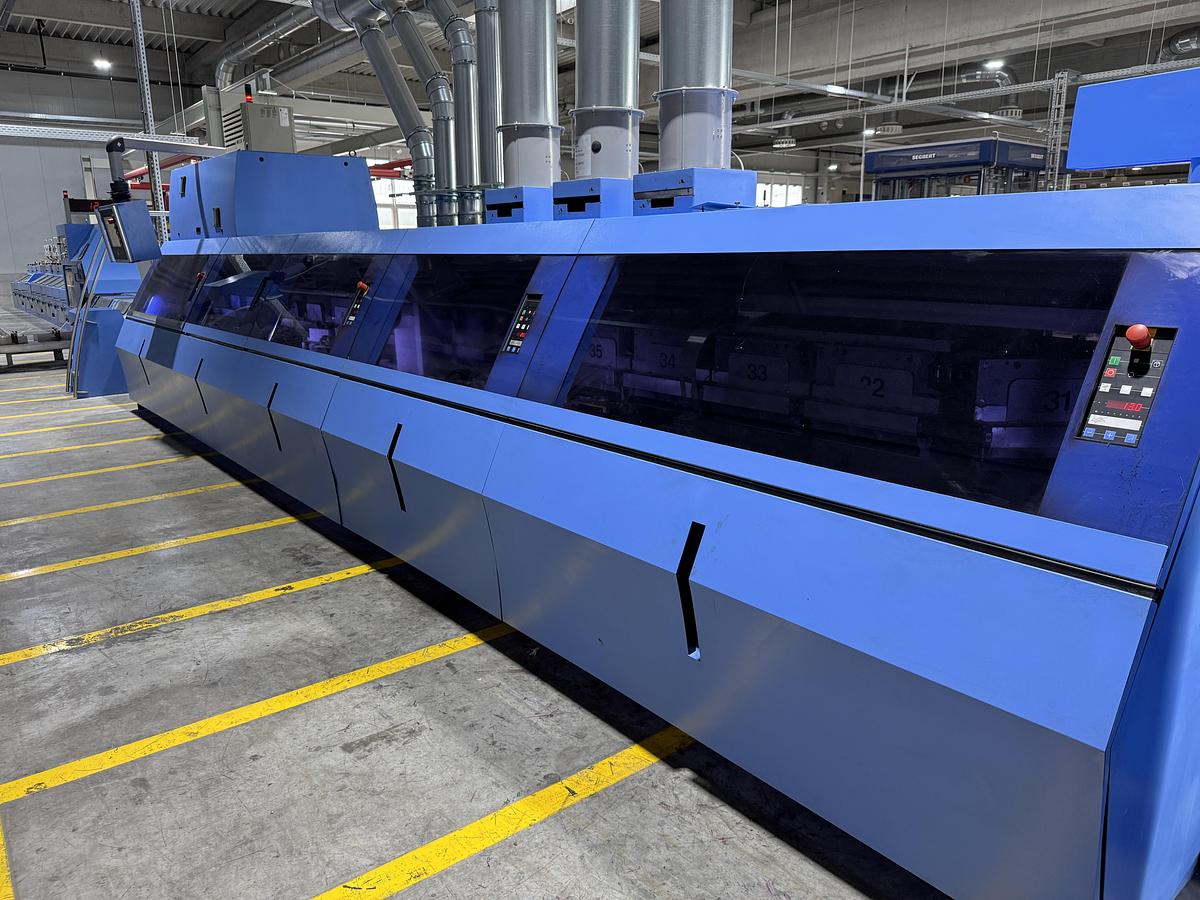

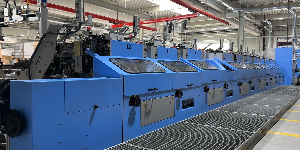

3681 gathering machine

PFAFF crane system (year 2023)

CORONA C15 S/35 perfect binder

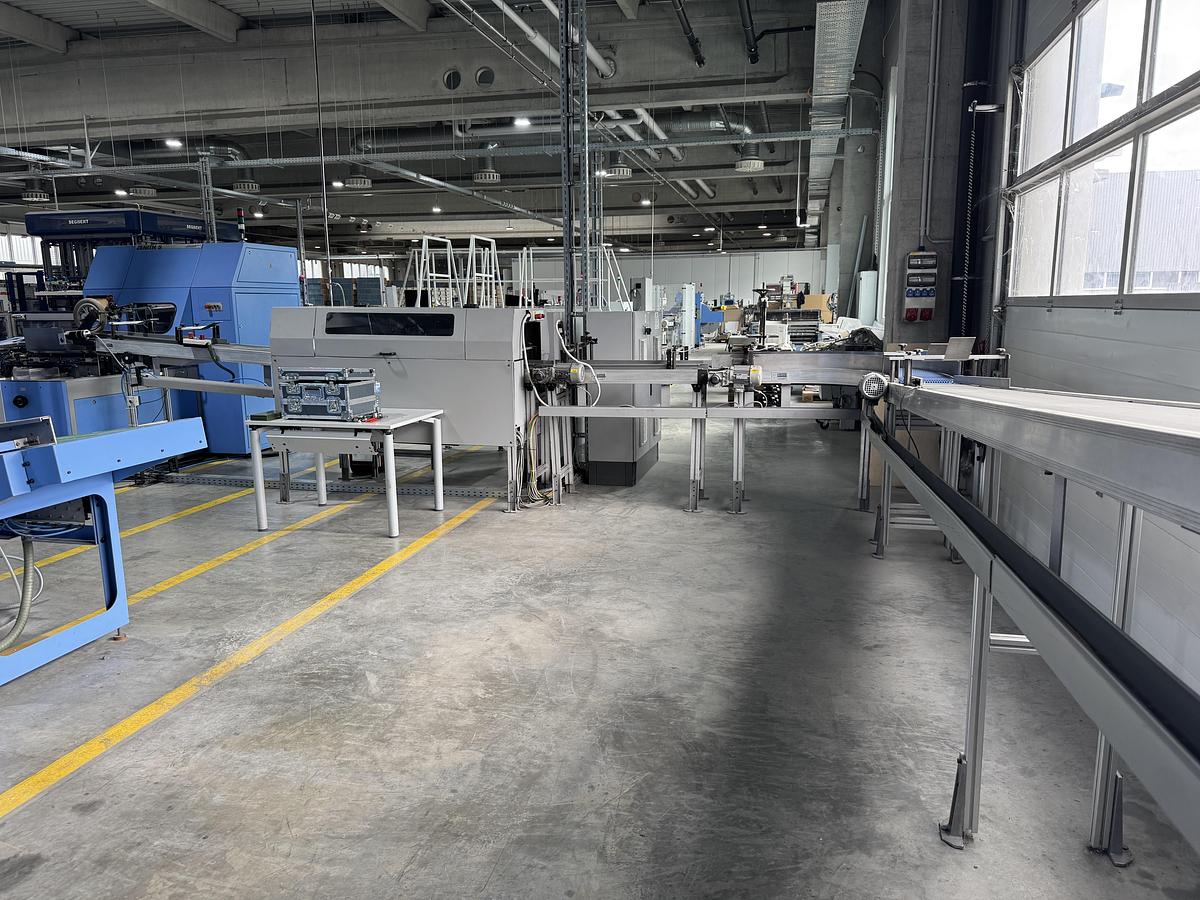

3520 transport and drying line

3672 ZENITH S three knife trimmer

3631 CB 16 book counter stacker

Configuration:

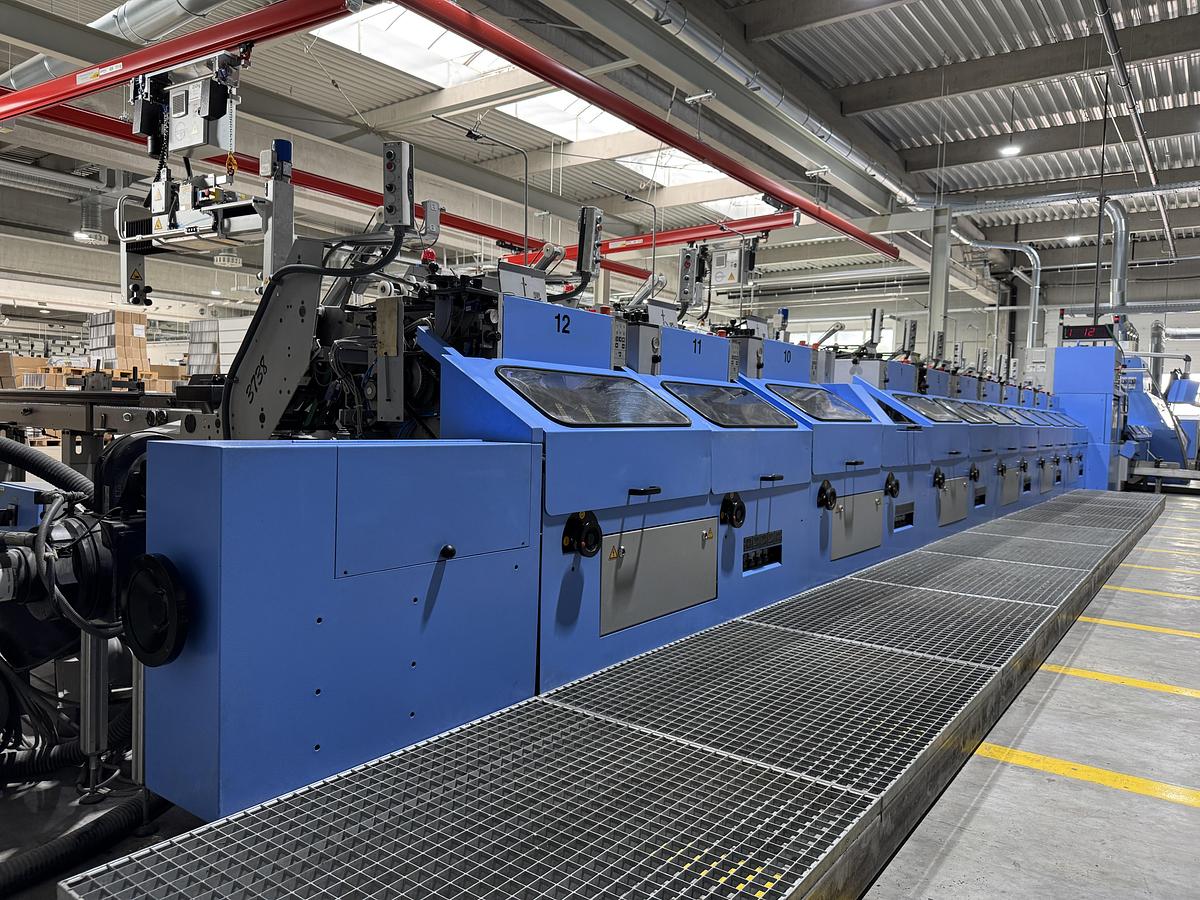

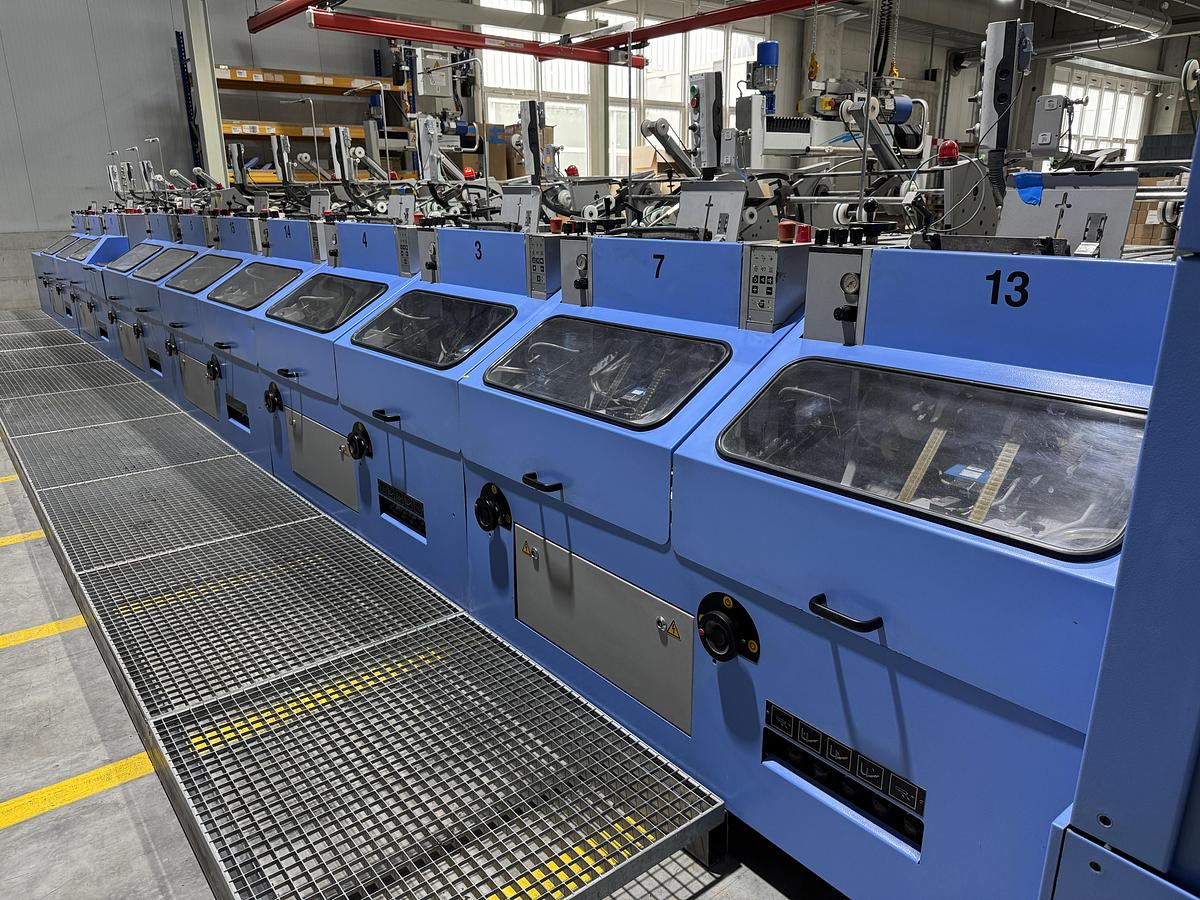

3681 gathering machine

• 12 stations (expandable up to 16 stations)
• automatic signature thickness control ASAC and automatic signature type control ASIR 3
• 10 streamfeeder 3738 (3x year 2008, 6x year 2006, 1x year 2003)
• reject unit 3714 with delivery conveyor to the left
• set-up element 3641
• 2 jogging elements 3643
• separating element 3646
• transfer to the binder
• vaccum pumps

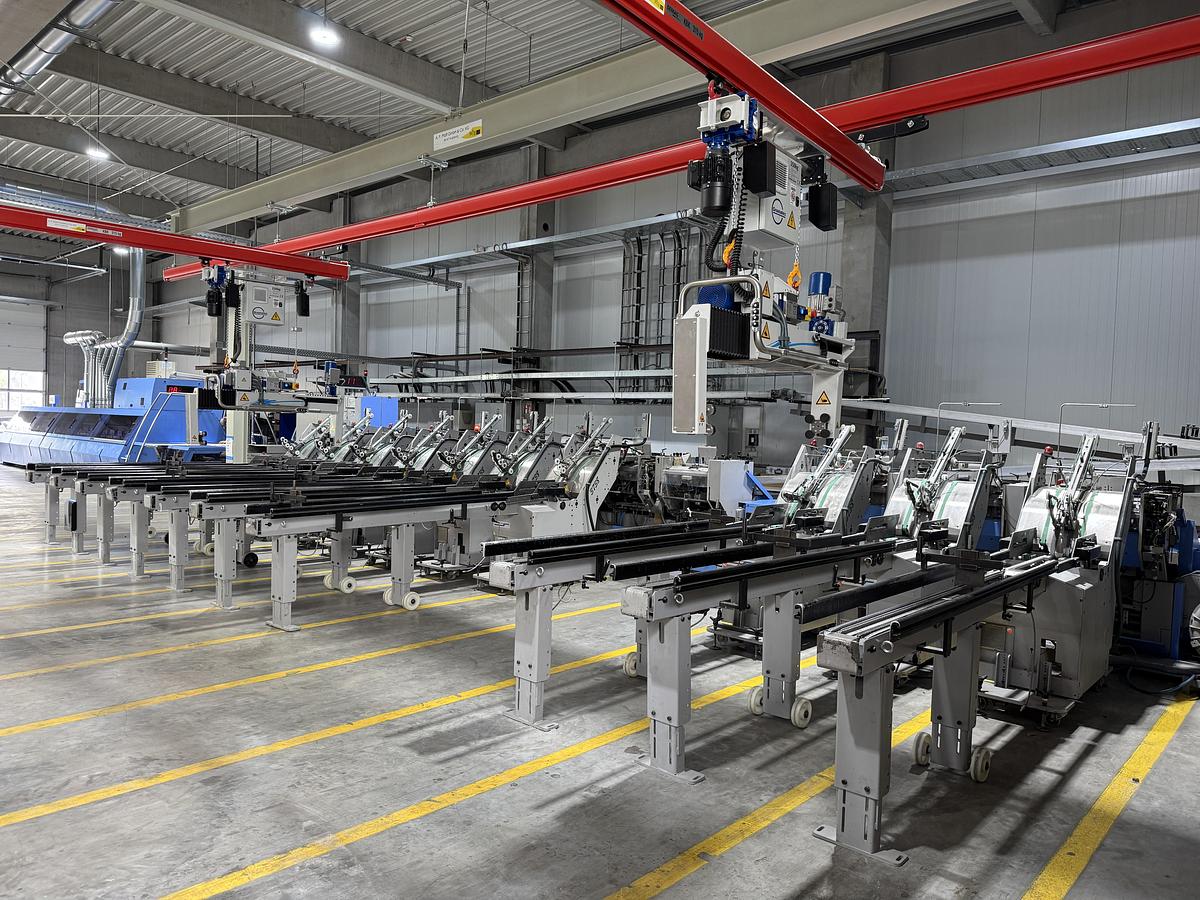

PFAFF crane system (year 2023)

• 2 GRAMATEC bundle clamp CL200
• GRAMATEC chain lift system CH200-2

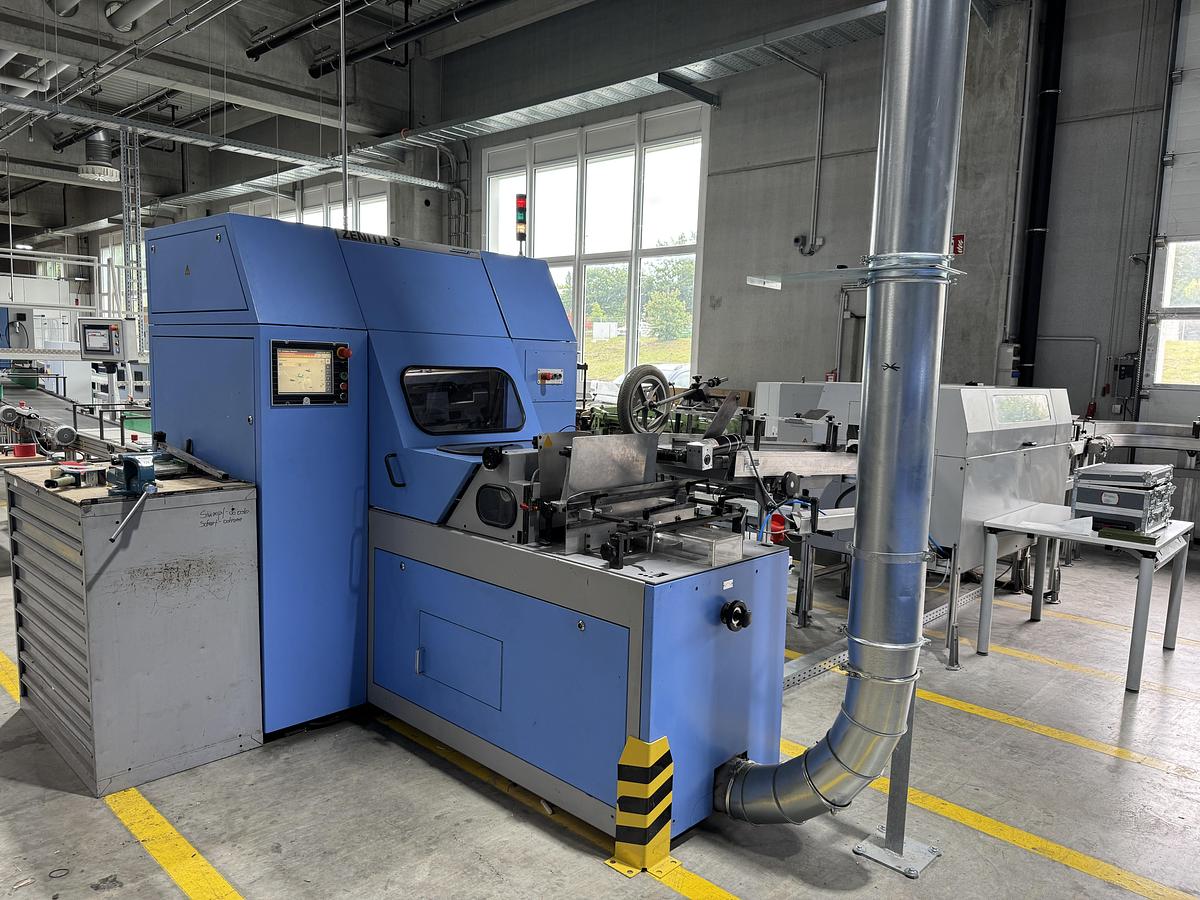

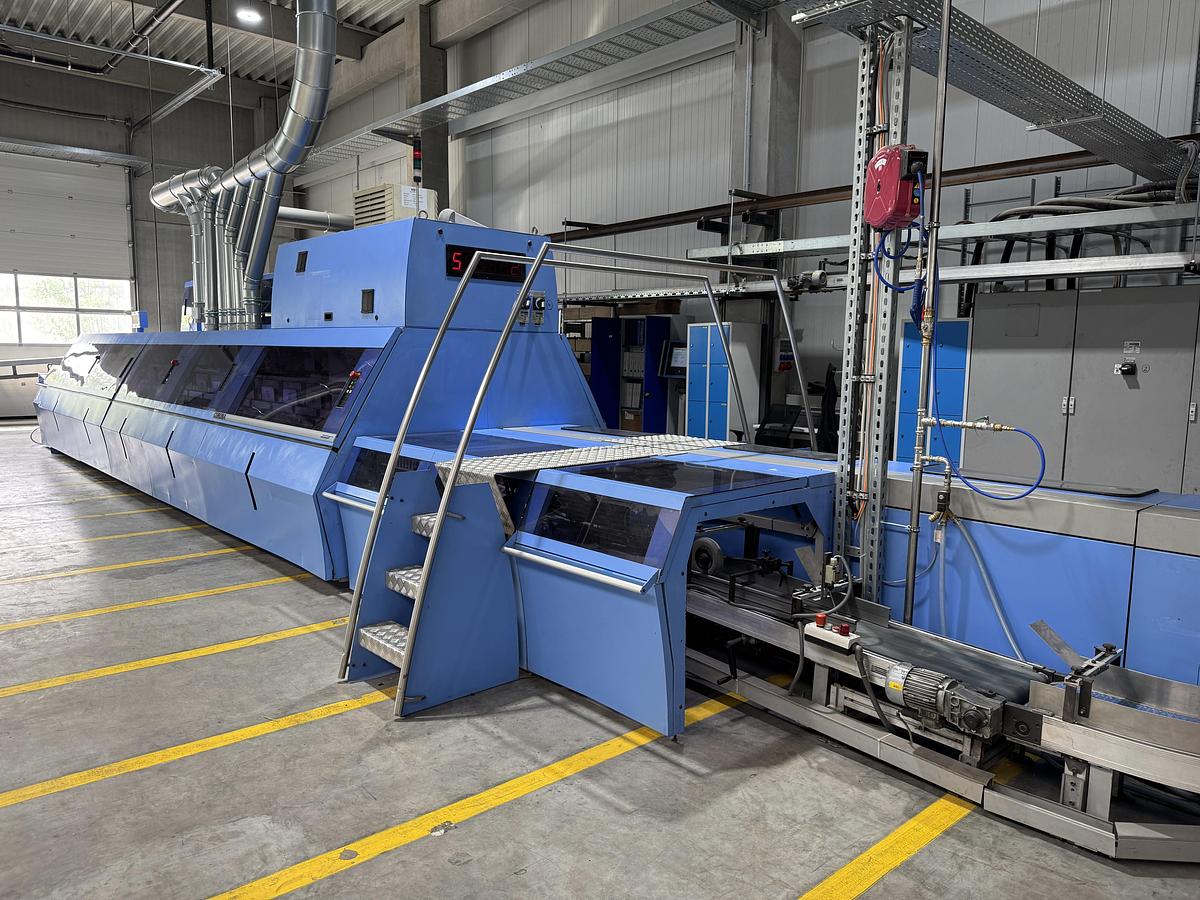

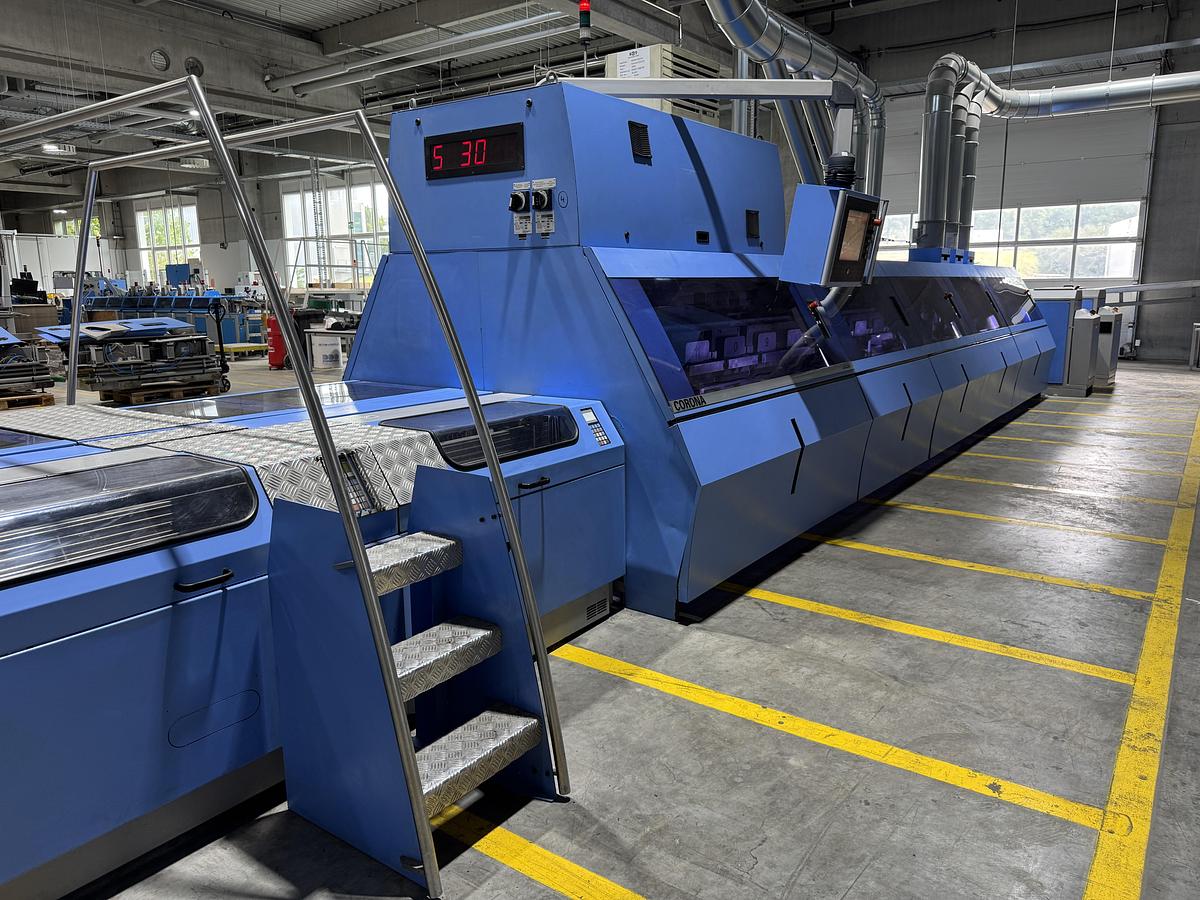

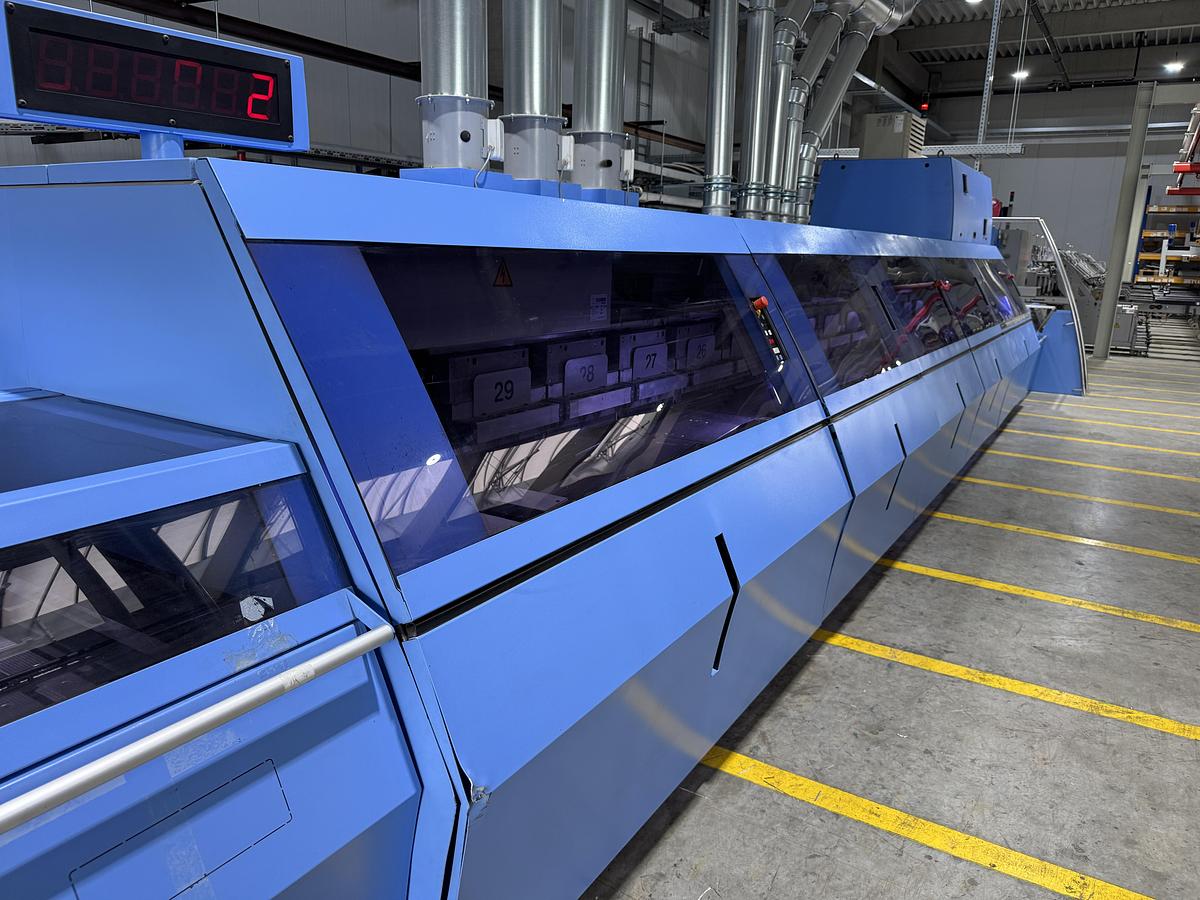

CORONA C15 S/35 (18") perfect binder

• 35 clamps
• commander
• main milling station (without dust exhaust system)
• 2 separate spine preparing units (equalizing, notching)
• brushing station
• 1^st Hotmelt spine gluing unit with premelter ICS C80 for spine gluing
• Hotmelt side gluing unit with premelter CLS C30 for side gluing
• 2^nd Hotmelt spine gluing unit with premelter ICS C160 for spine gluing
• stream cover feeder
• 2 pressing stations
• lay down device

Technical specifications:

mechanical speed: up to 15.000 cycles/h

size range max.: 360 x 310 x 60 mm

size range min.: 140 x 100 x 2 mm

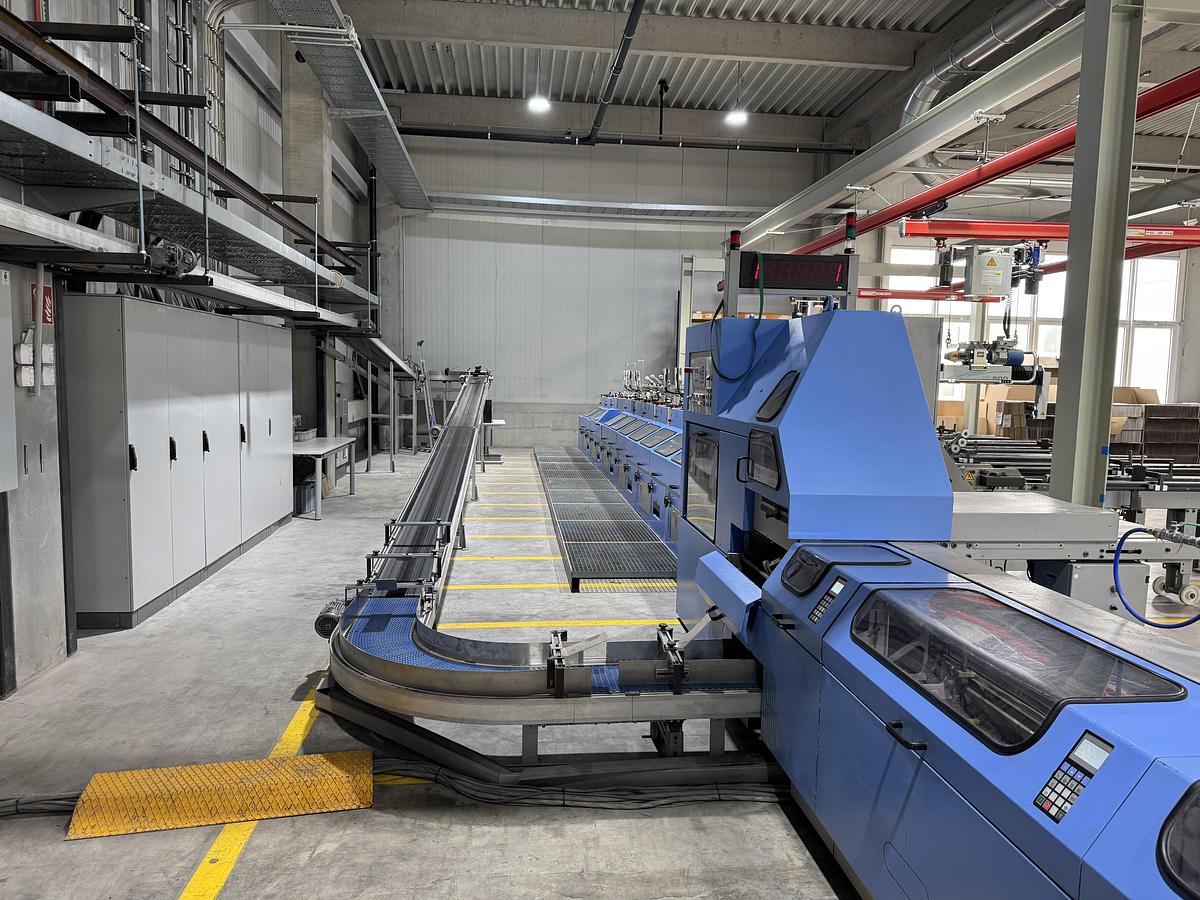

3520 transport and drying line

• incl. emergency delivery with delivery conveyor to the right

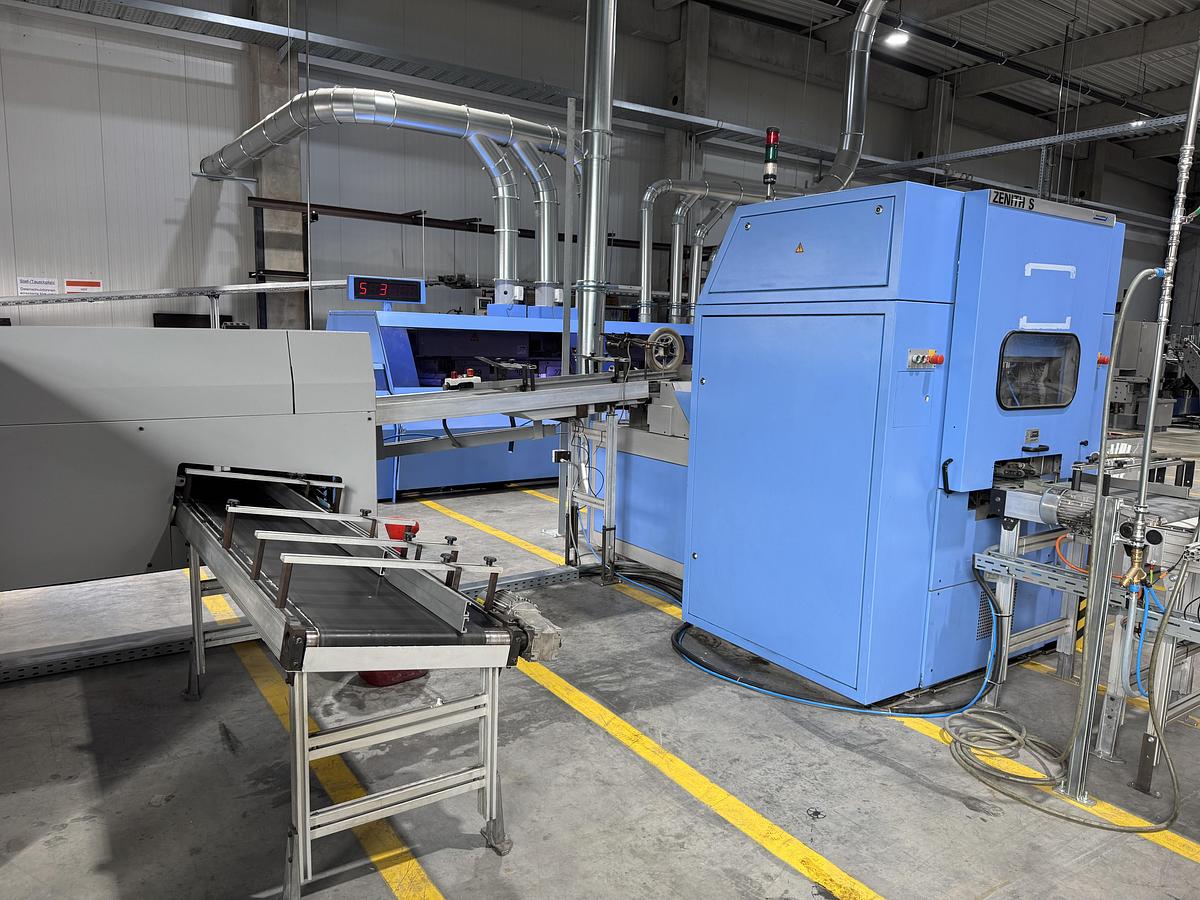

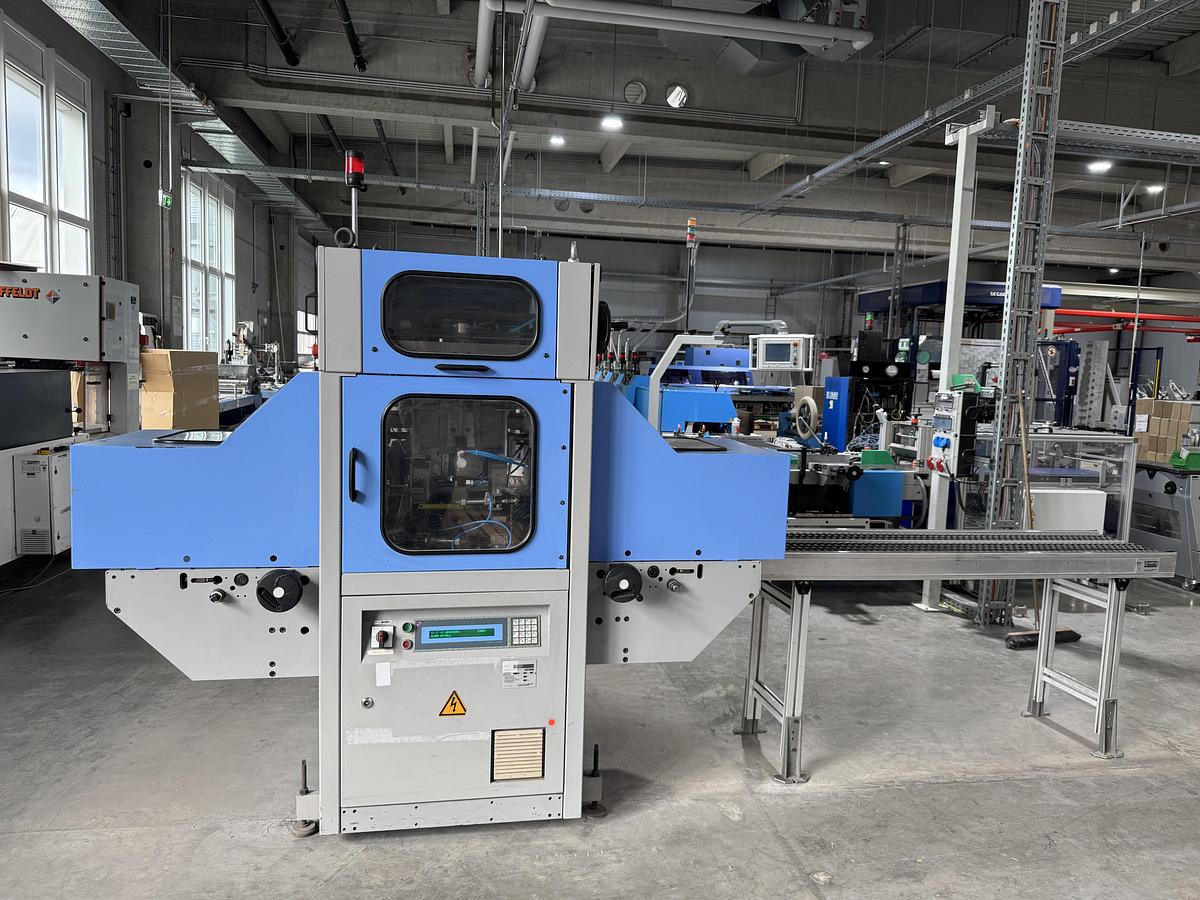

3672 ZENITH S three knife trimmer

• colour display with touch screen
• right hand infeed
• standard changeable cutting tables (no. 4 – 17)
• knife changing device

Special equipment:

• 2 set of knives

Technical specifications:

mechanical speed: up to 7.000 cycles/h

size range uncutted max.: 384 x 340 mm

size range uncutted min.: 140 x 73 mm

size range cutted max.: 304 x 310 mm

size range cuttes min.: 136 x 100 mm

book thickness: 2 - 70 mm

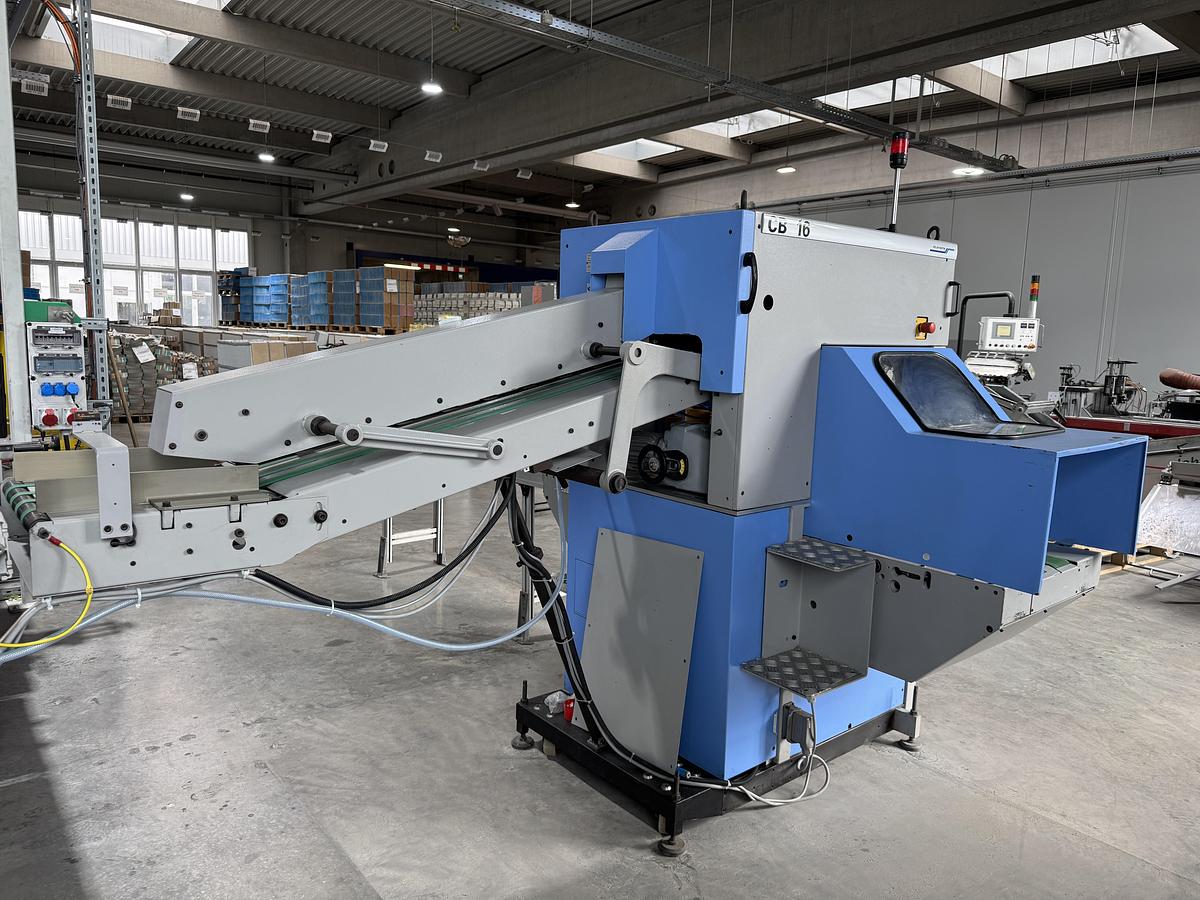

3631 CB 16 book counter stacker

• delivery belt to the right
• delivery belt to the left with roller conveyor

Technical specifications:

mechanical speed: up to 18.000 cycles/h

size range max.: 450 x 340 x 70 mm

size range min.: 140 x 100 x 3 mm
