MULLER MARTINI PRIMERA C140

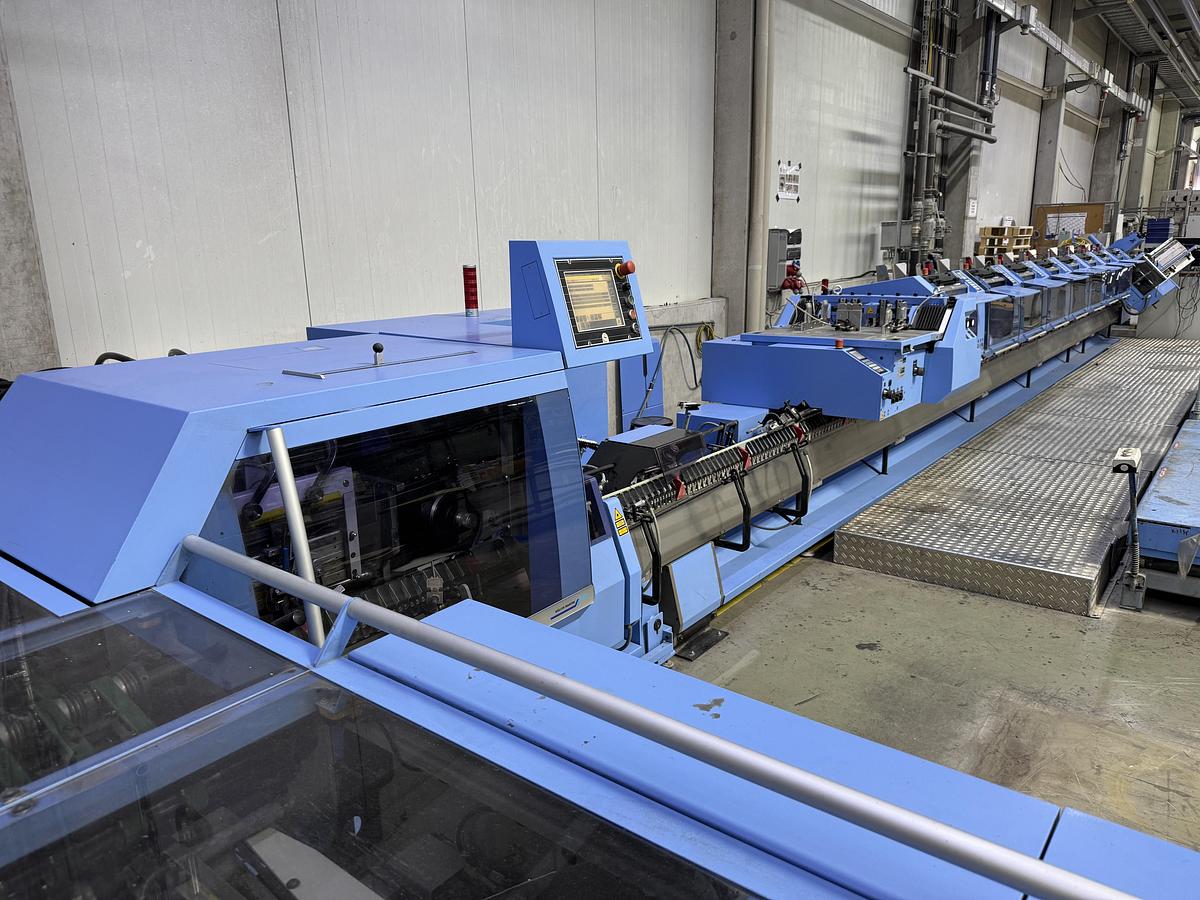

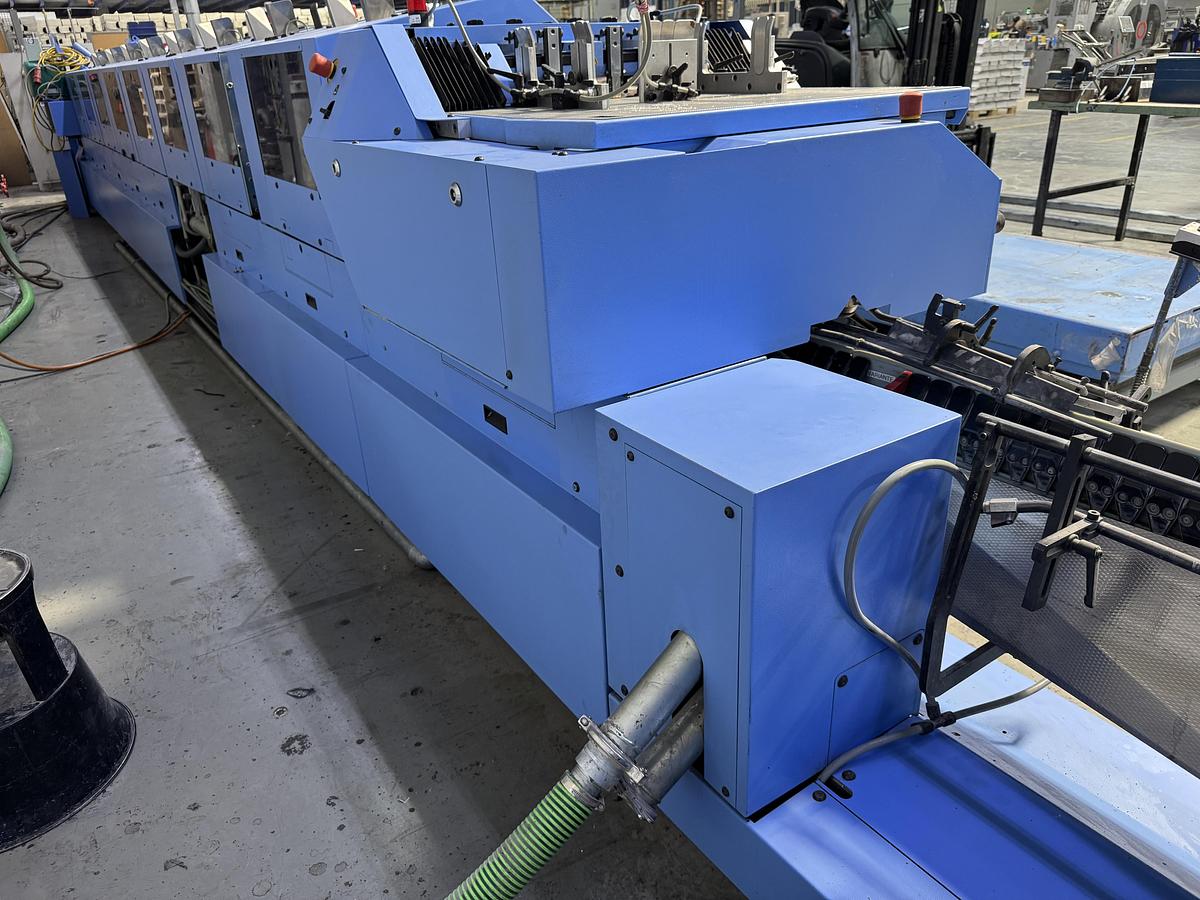

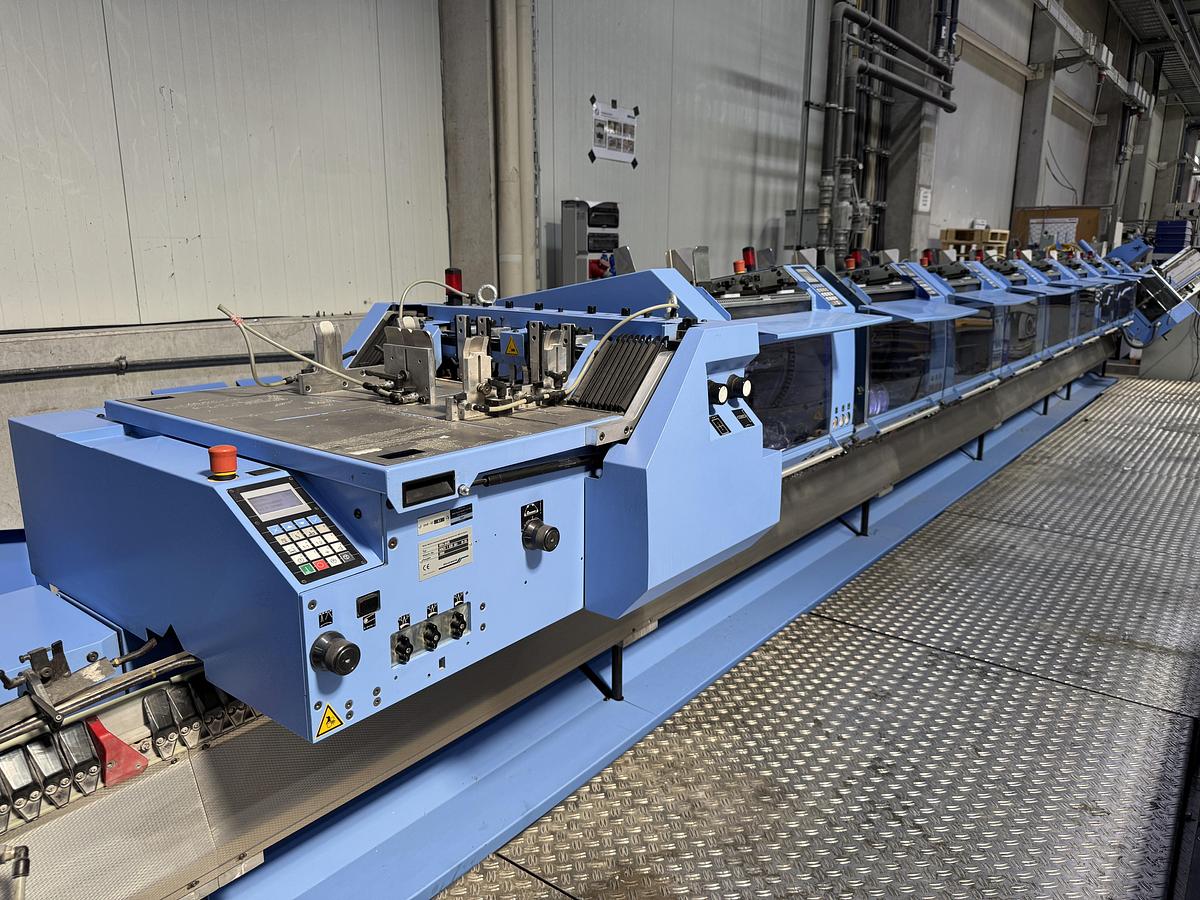

MULLER MARTINI Saddle Stitcher PRIMERA C140

year 2009

The PRIMERA 140 from MULLER MARTINI is a high-powered, highly efficient saddle stitcher

for medium-capacity performance.

Configuration:

• colour monitor with touch screen

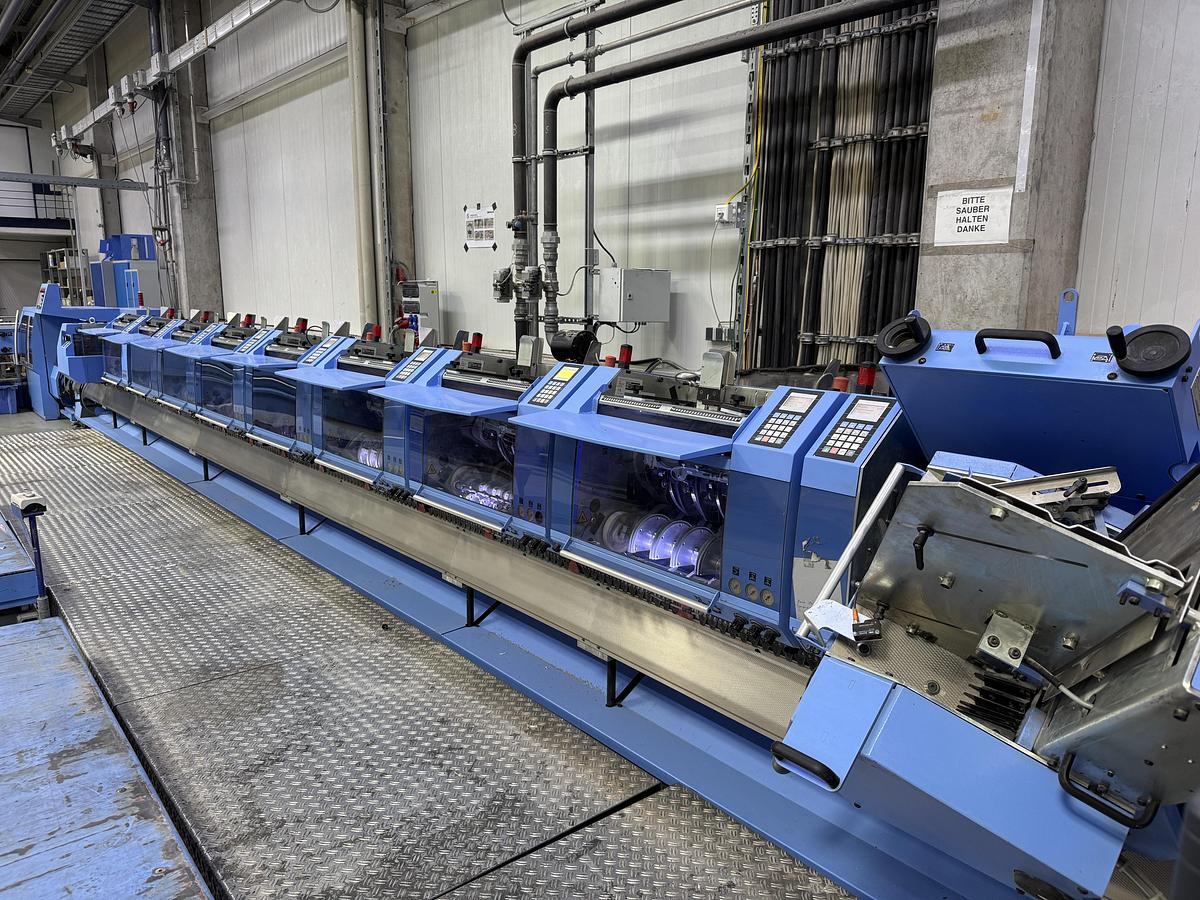

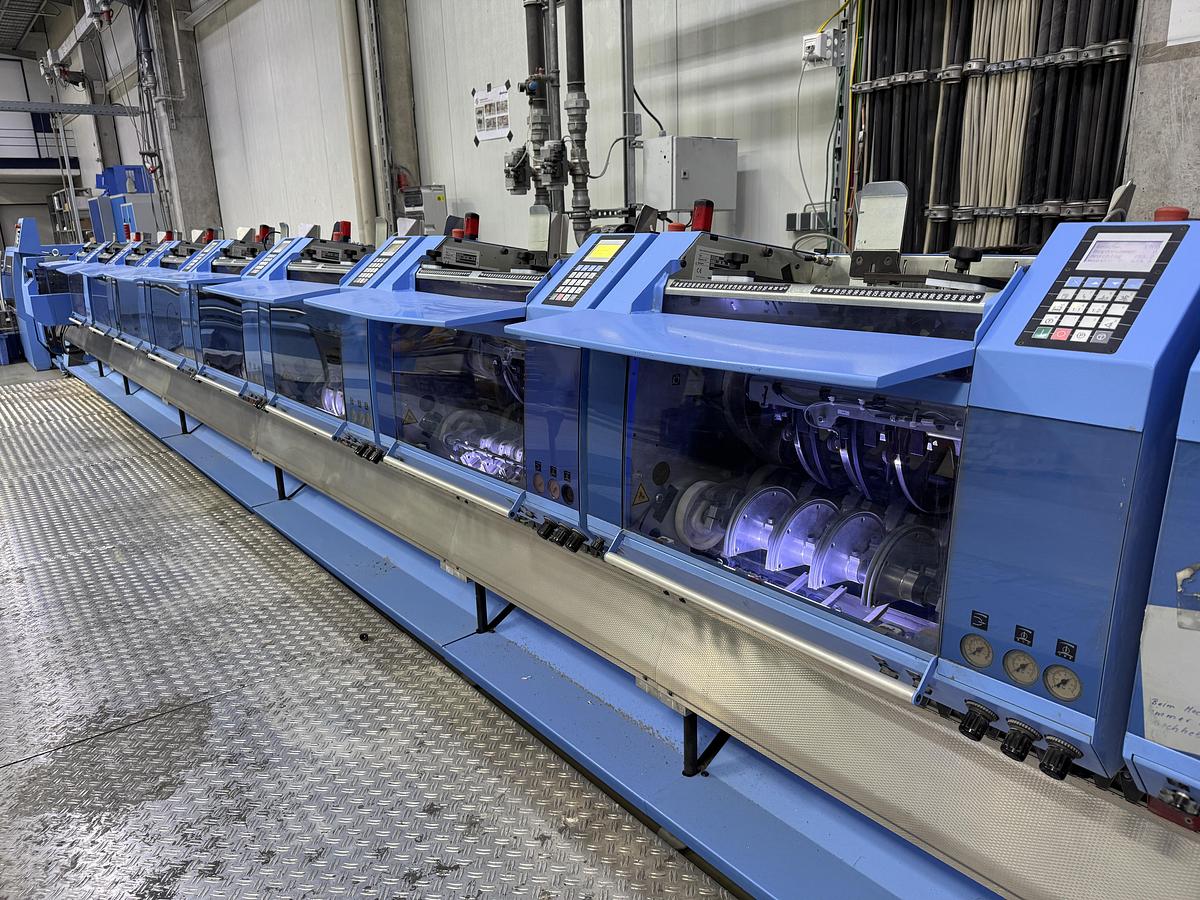

• 8 feeders horizontal type 0379.0401 with ASIR 3
• card gluer type 0423.0425 with ROBATECH premelter (year 2010)
• cover feeder type 0554.0405 with ASIR 3 (large format)
• SEMKO

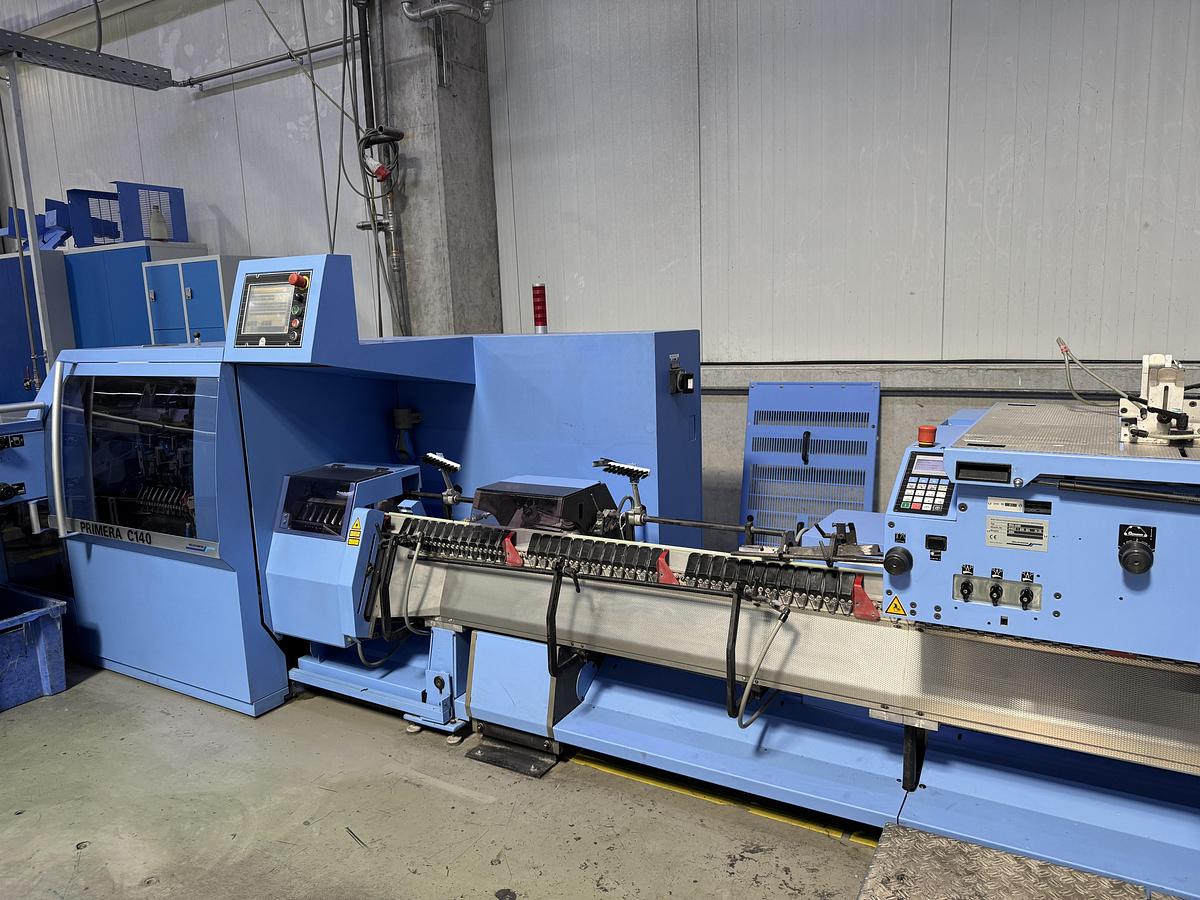

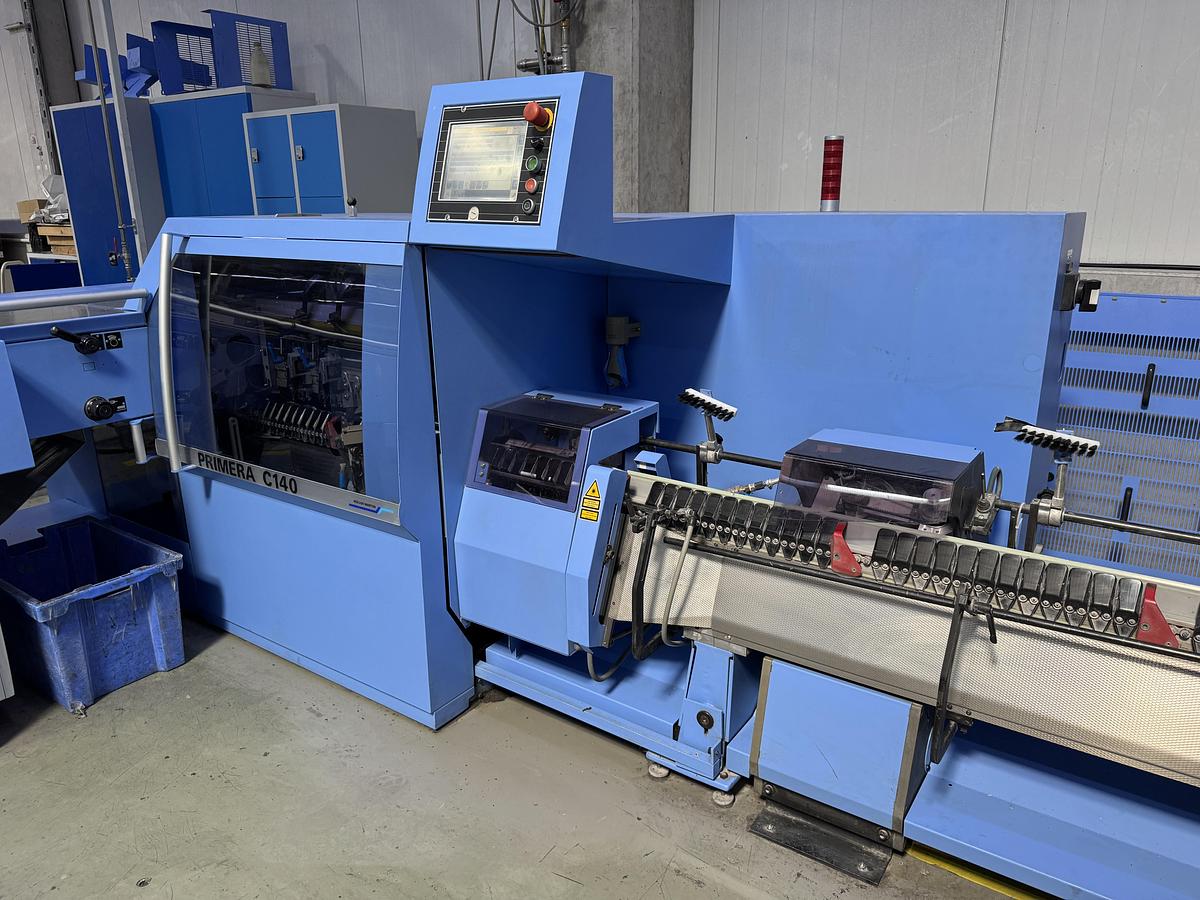

• stitching unit type 0383.0400
• 2 stitching heads

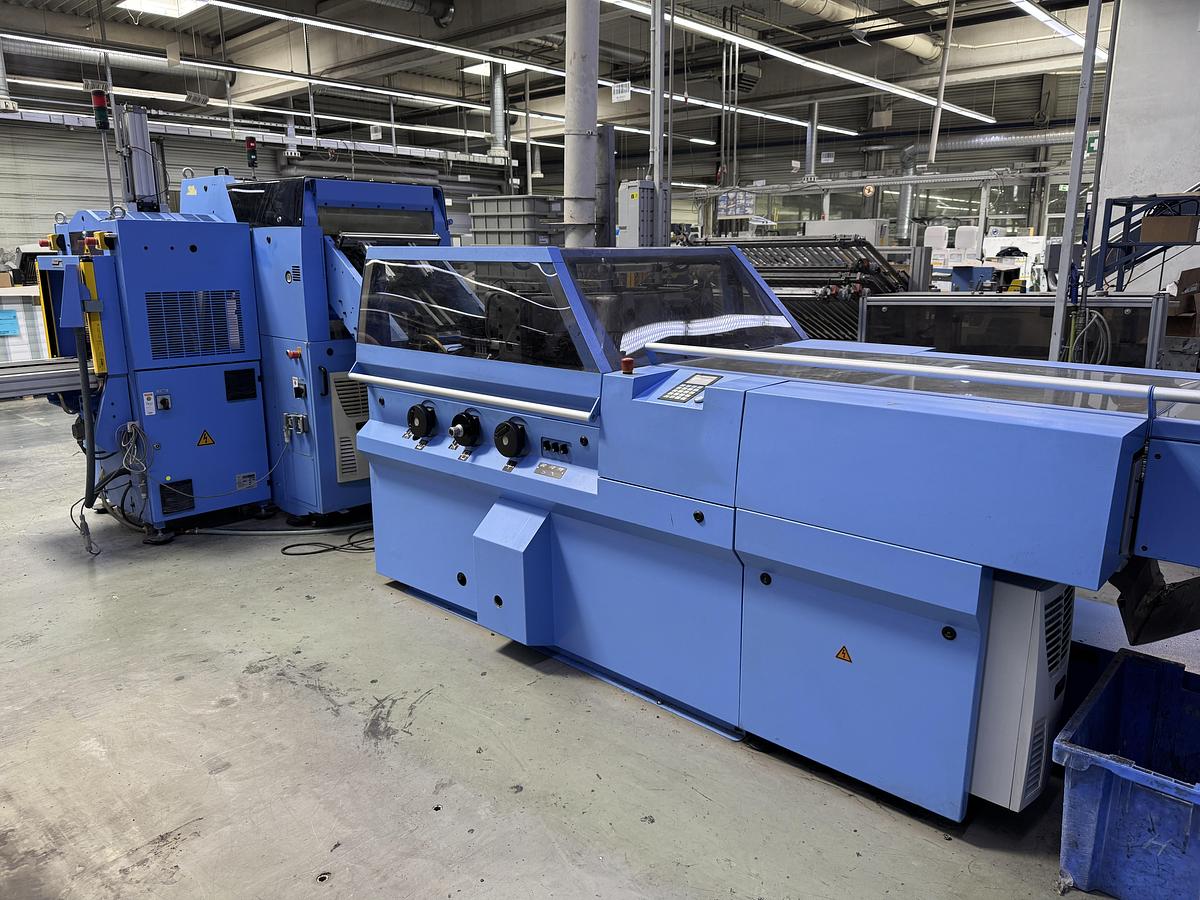

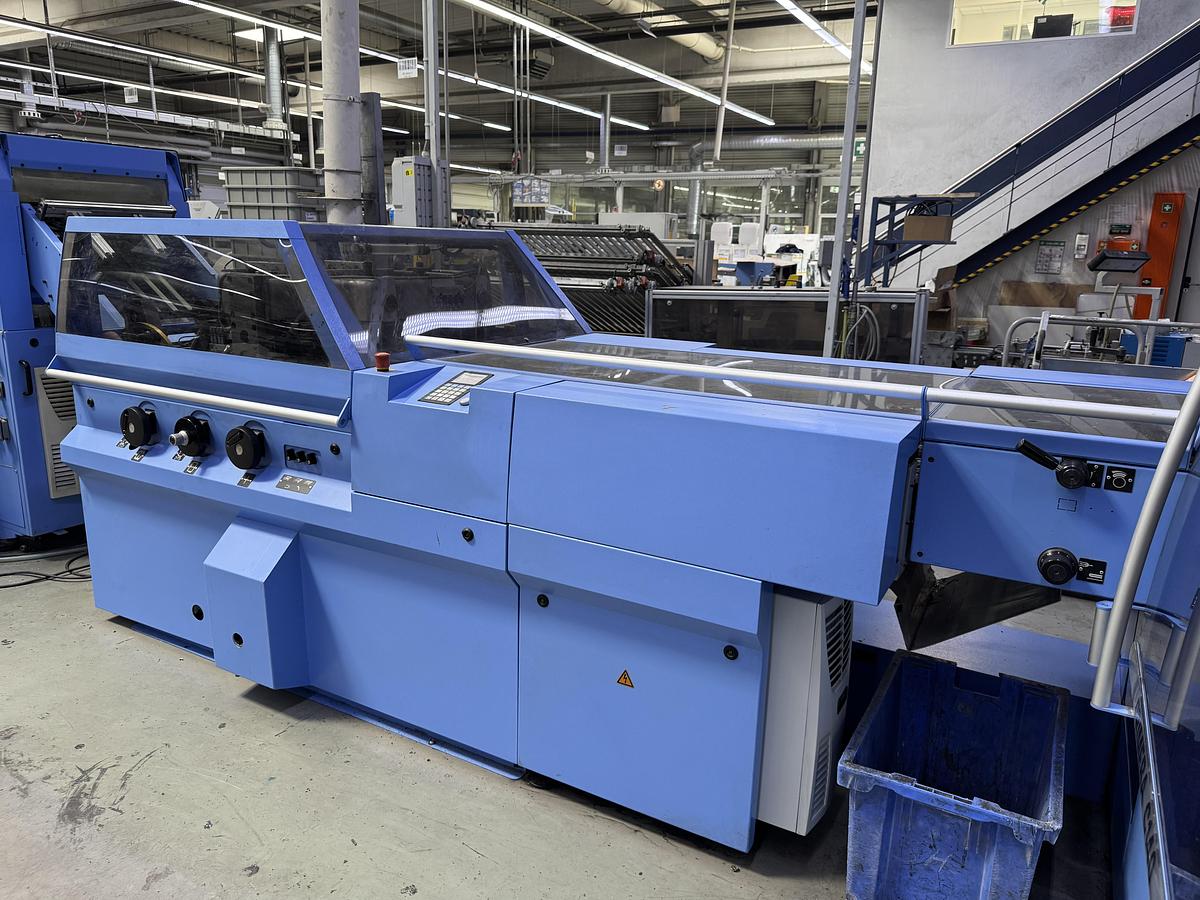

• trimmer type 0459.0401

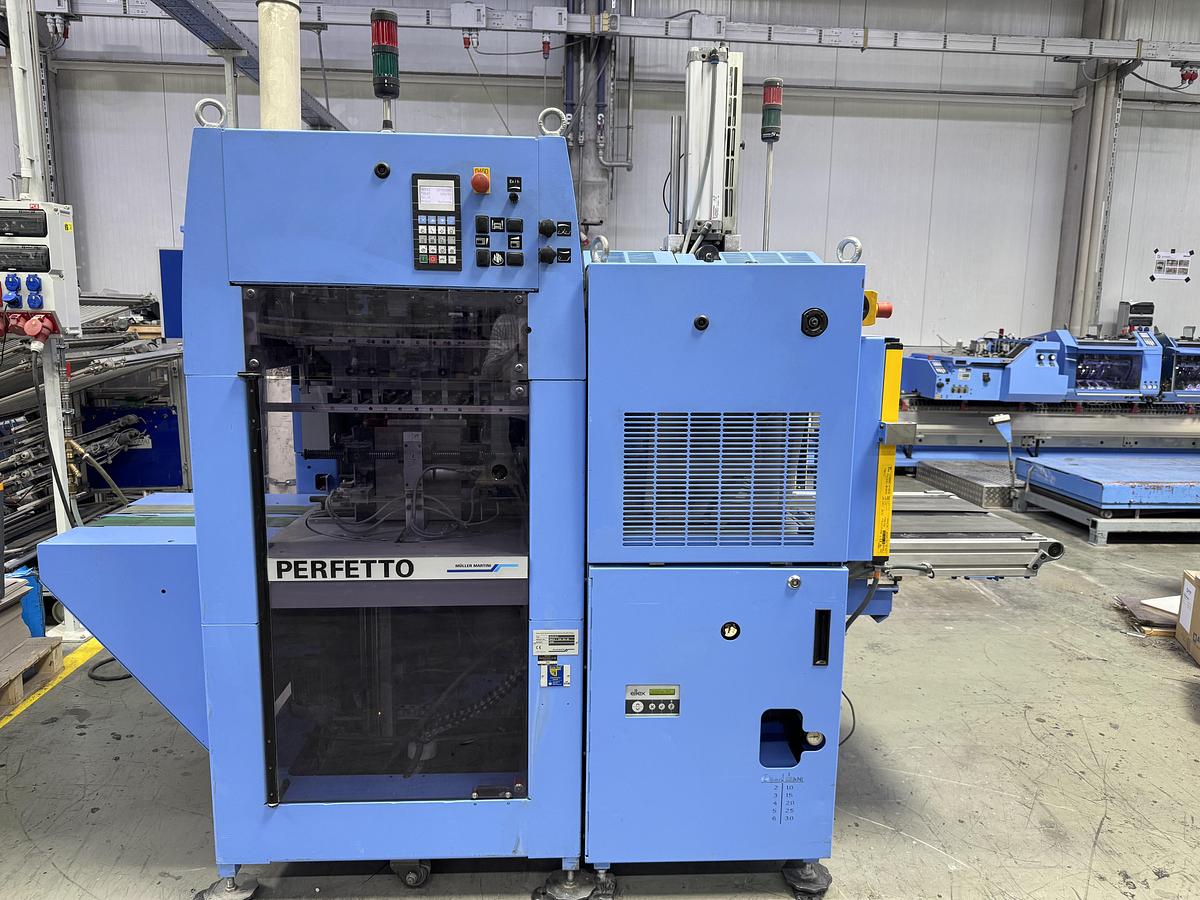

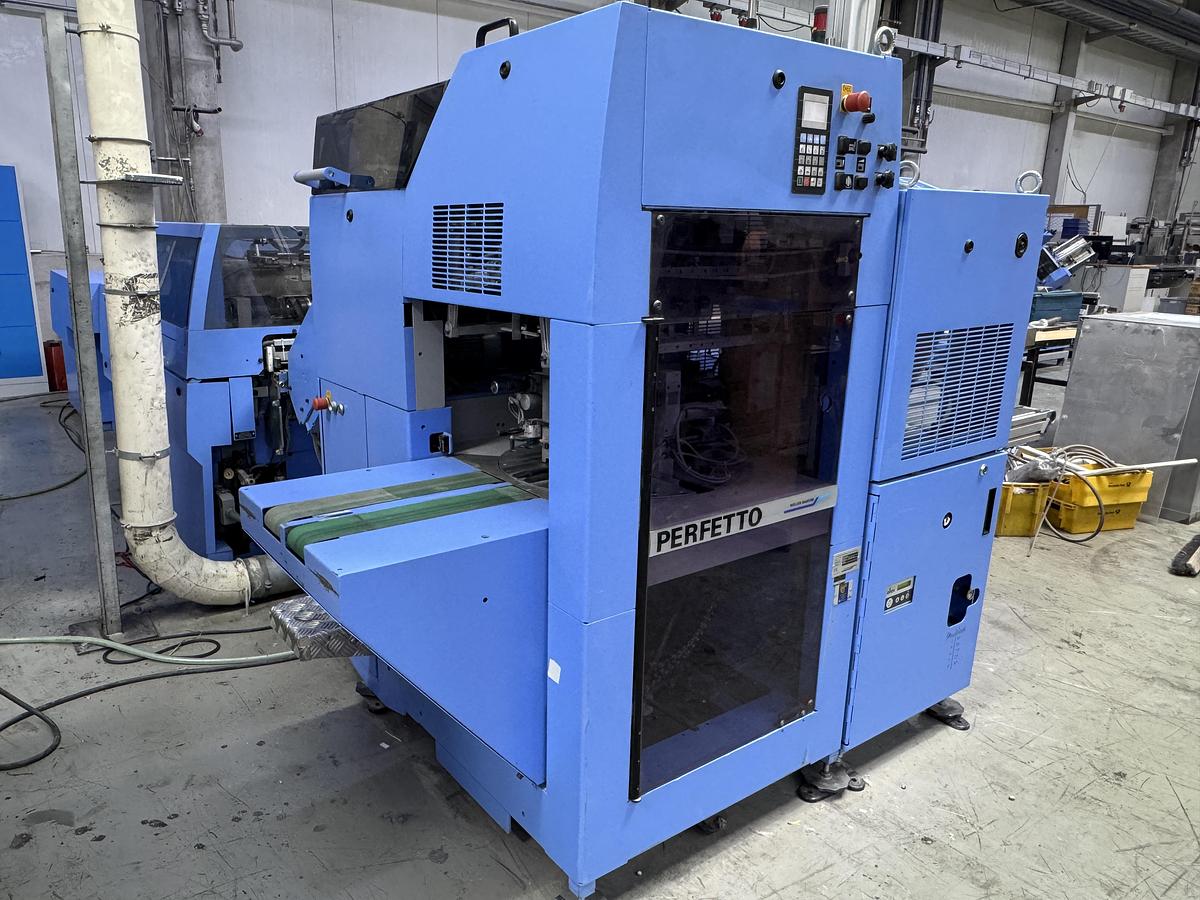

• compensating stacker PERFETTO type 0450.0401 with belt delivery to the right and delivery to the left
• static blocker type 0457.0400 (year 2008)
• prepared for connection to a central compressed air system

Technical specifications:

mechanical speed: up to 14.000 cycles/h

size range untrimmed (high folio lap) max.: 480 x 320 mm

size range untrimmed (high folio lap) min.: 90 x 80 mm

size range untrimmed (low folio lap) max.: 480 x 290 mm

size range untrimmed (low folio lap) min.: 90 x 80 mm

size range untrimmed (lap) max.: 18 mm

size range untrimmed (lap) min.: 6 mm

product thickness max.: 13 mm
