KOLBUS RF 700

KOLBUS Spine Gluing and Lining Machine RF 700

year 2018

For gluing and lining of thread-sewn book blocks. The machine is used in book production lines.

Overview:

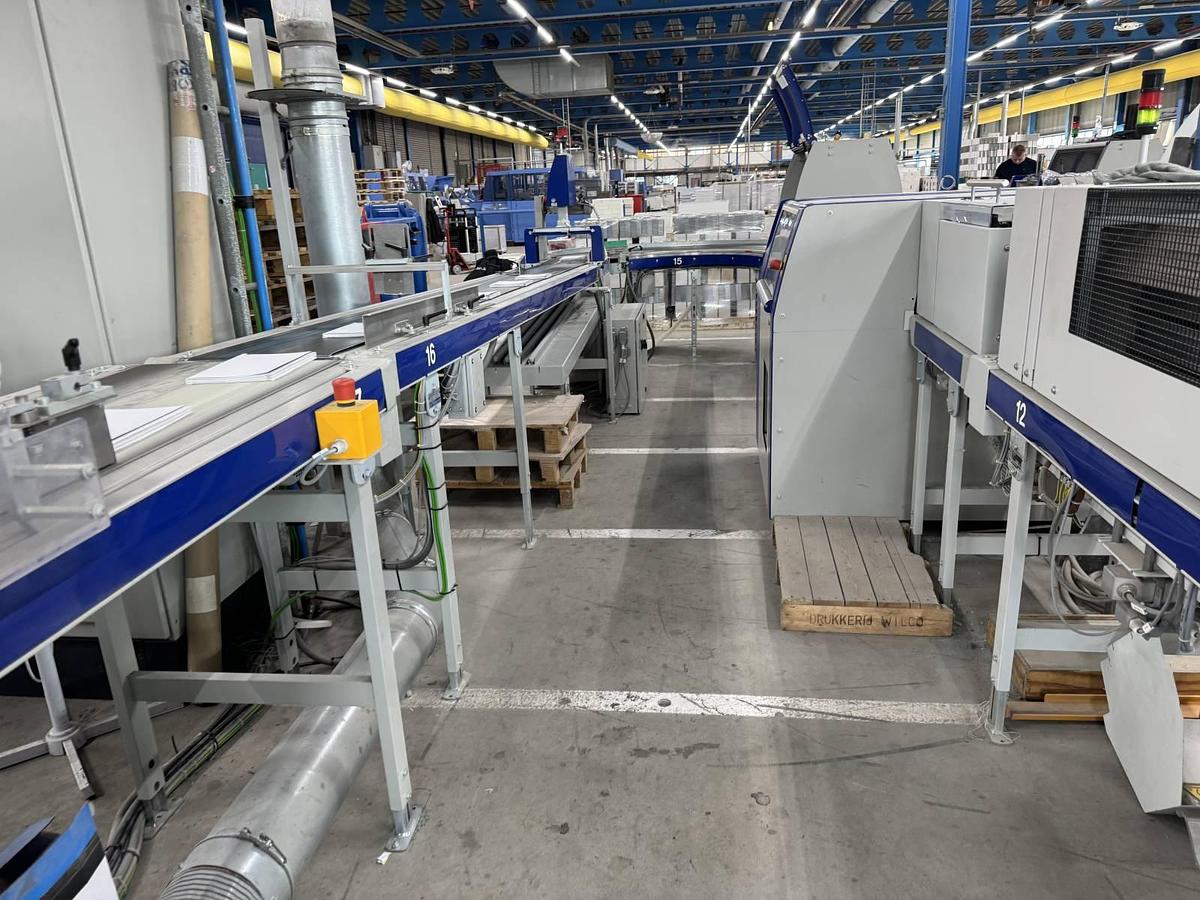

TS.A destacking conveyor incl. transport-, conveying system | 2016

RF 700 spine gluing and lining machine | 2018

FN 720 nipping press | 2016

Configuration:

TS.A destacking conveyor

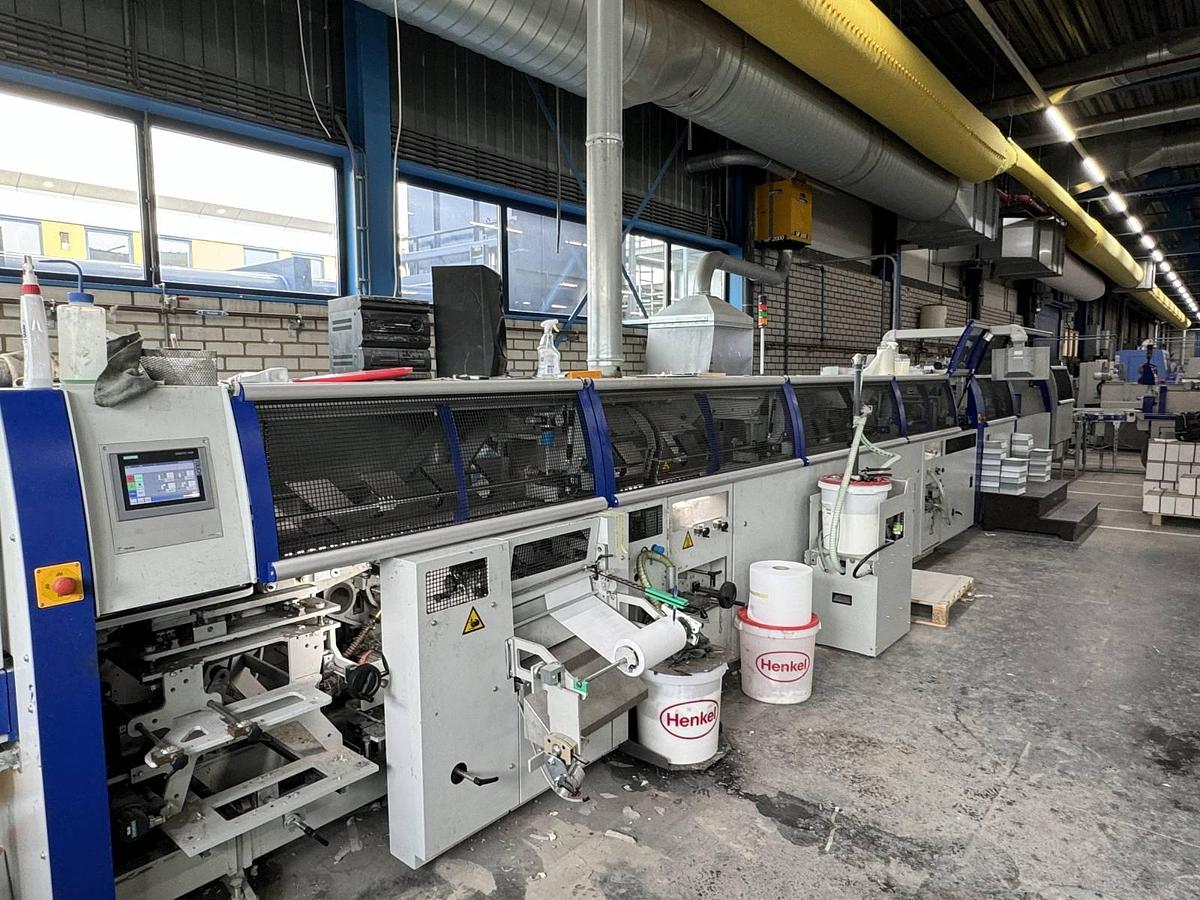

RF 700 spine gluing and lining machine

• copilot system with two touchscreens
• infeed with feeding conveyor ES
• block thickness control
• end sheet feeder with cold glue end sheet gluing unit with own drive
• basic machine for two-shot-gluing
• 1^st gluing station with “Twinflex”-cold glue spine gluing unit
• IR heater
• 2^nd gluing station with EVA-Hotmelt spine gluing unit (without premelter)
• cold glue side gluing unit
• cross lining and pressing station

Technical specifications:

mechanical speed: max. 70 cycles/min

size range untrimmed and pressed max: 400 x 320 x 80 mm

size range untrimmed and pressed min: 120 x 100 x 2 mm

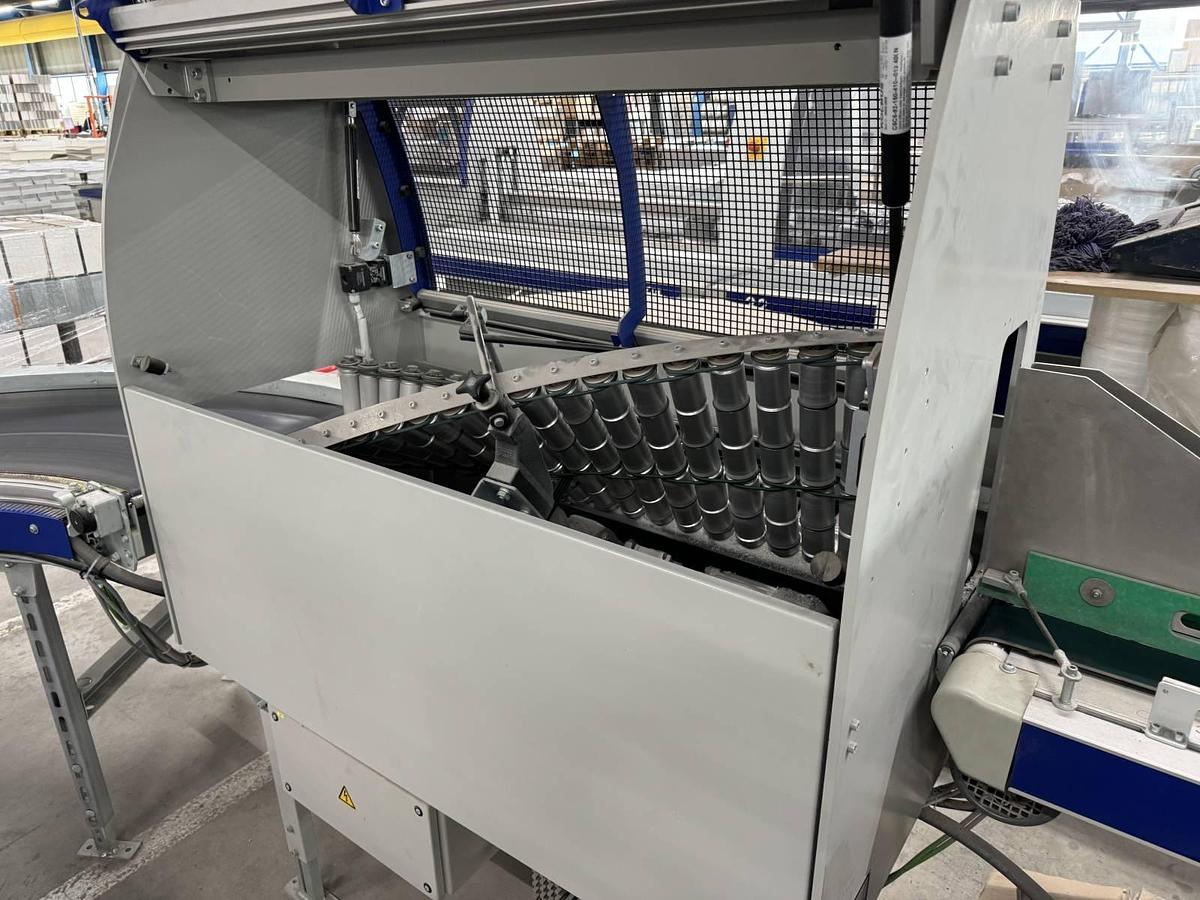

FN 720 nipping press

• copilot system with touchscreen
• automatic format adjustments
• product counter (job, shift and start/stop counter)
• motorized adjustment
• Control and drive technology based on Siemens SIMOTION D
• double line infeed/single line delivery
• 2 parallel pressing stations
• infeed height 900 mm

Technical specifications:

mechanical speed: max. 70 cycles/min

size range untrimmed max: 510 x 320 x 80 mm

size range untrimmed min: 120 x 100 x 2 mm

Transport-, conveying system
