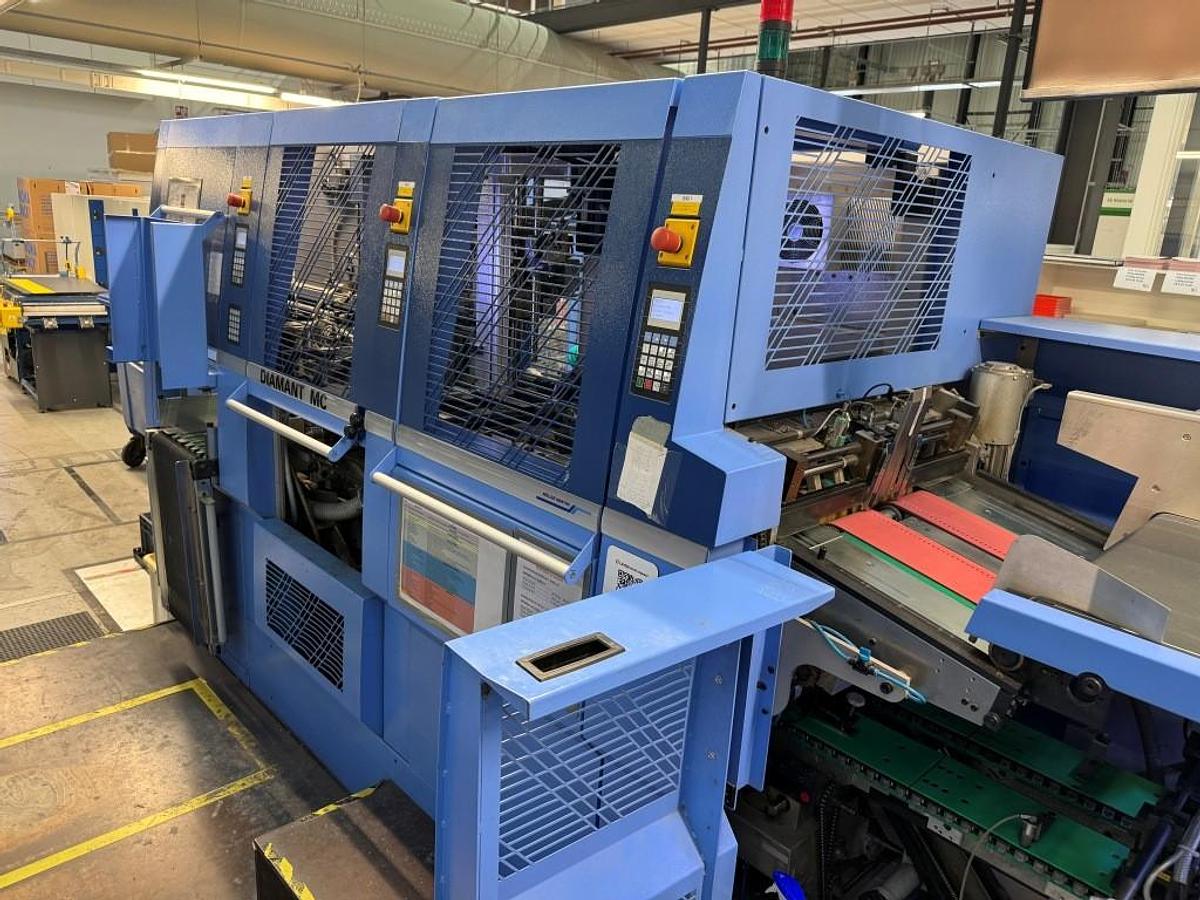

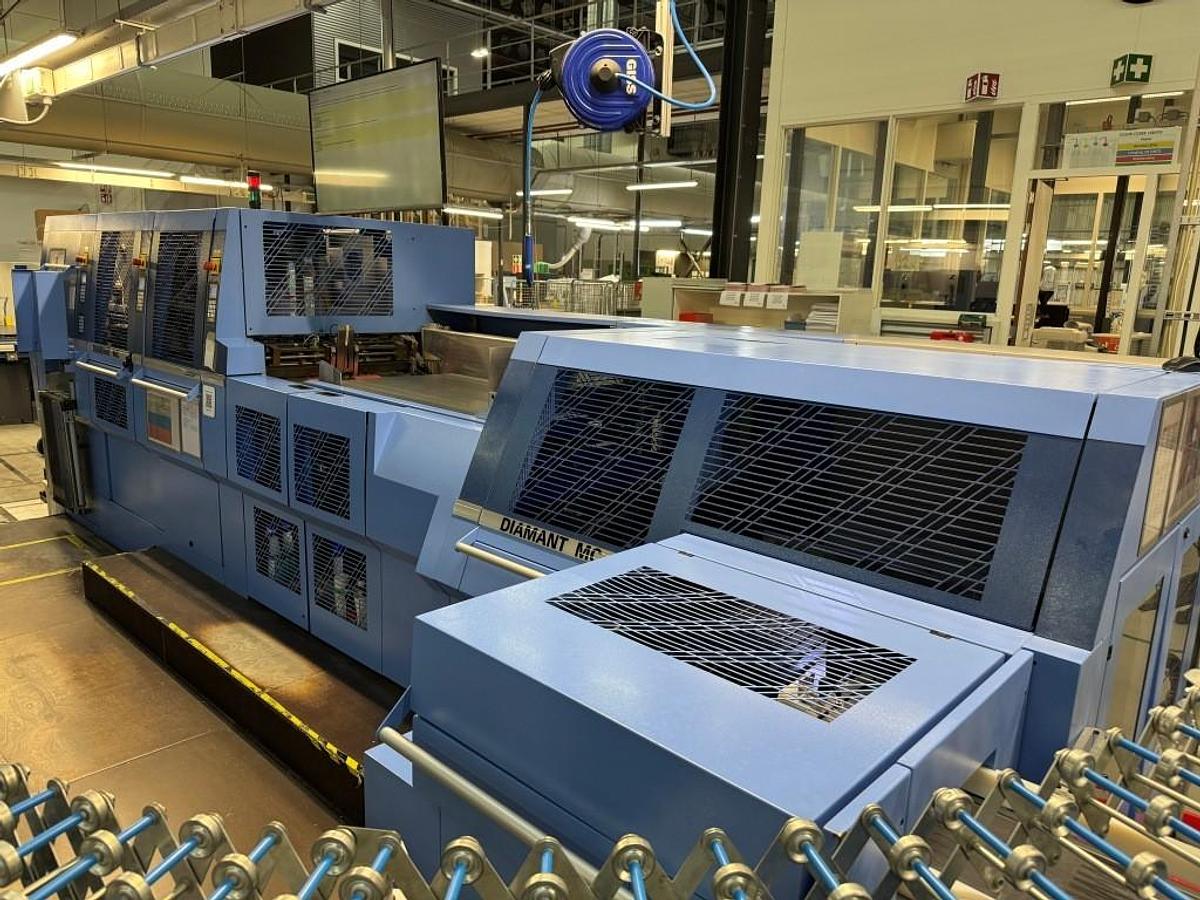

MULLER MARTINI DIAMANT MC 35 DIGITAL

MULLER MARTINI Book Production Line DIAMANT MC 35 DIGITAL

year 2010

Perfectly bound photo books, where each book block is reliably placed in the correct book cover despite high production speeds – that’s what the Diamant MC Digital delivers.

It ensures efficient production of digitally printed photo books or true photo books with layflat binding.

Overview:

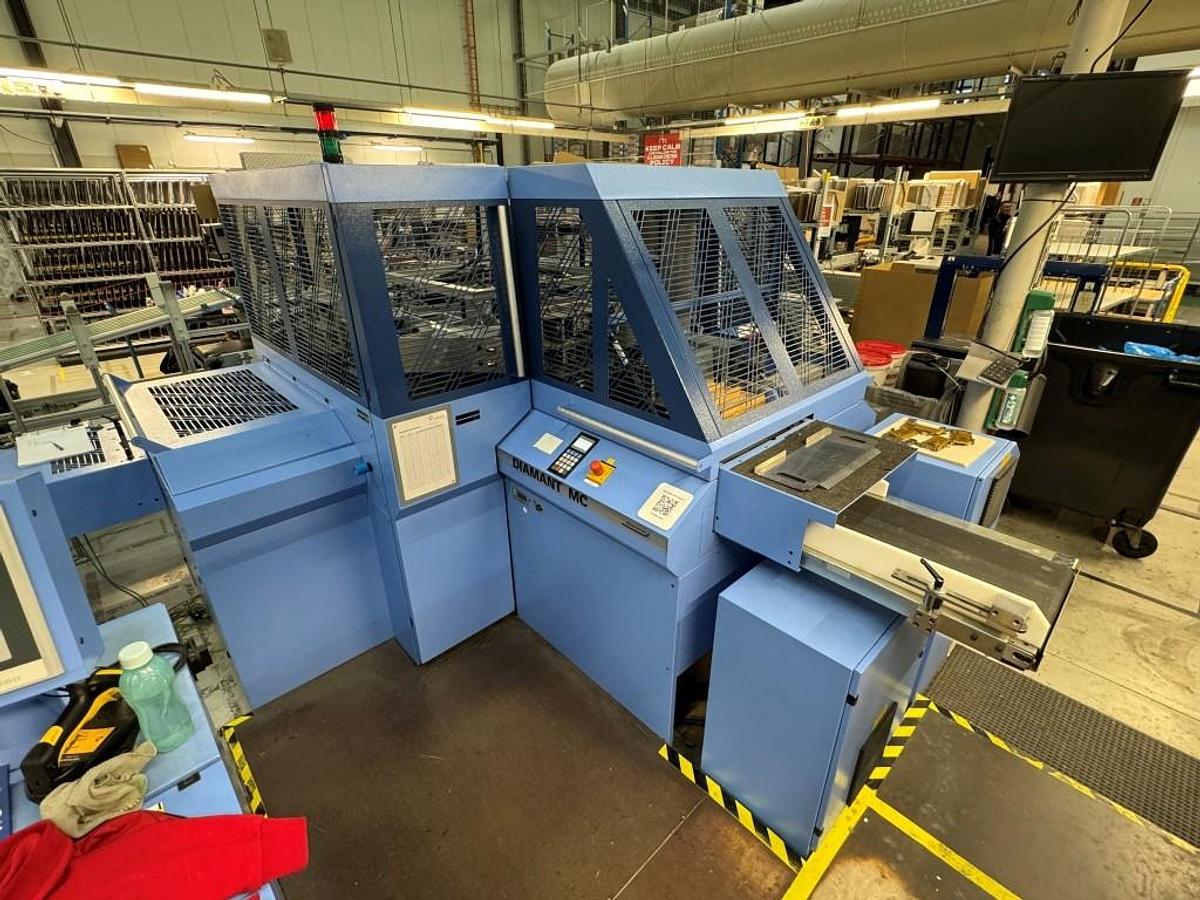

DIAMANT MC 35 Digital book production line

EP340/L forming and pressing machine

Configuration:

DIAMANT MC 35 Digital book produktion line - for flat spine

• AMRYS automatic adjustment system

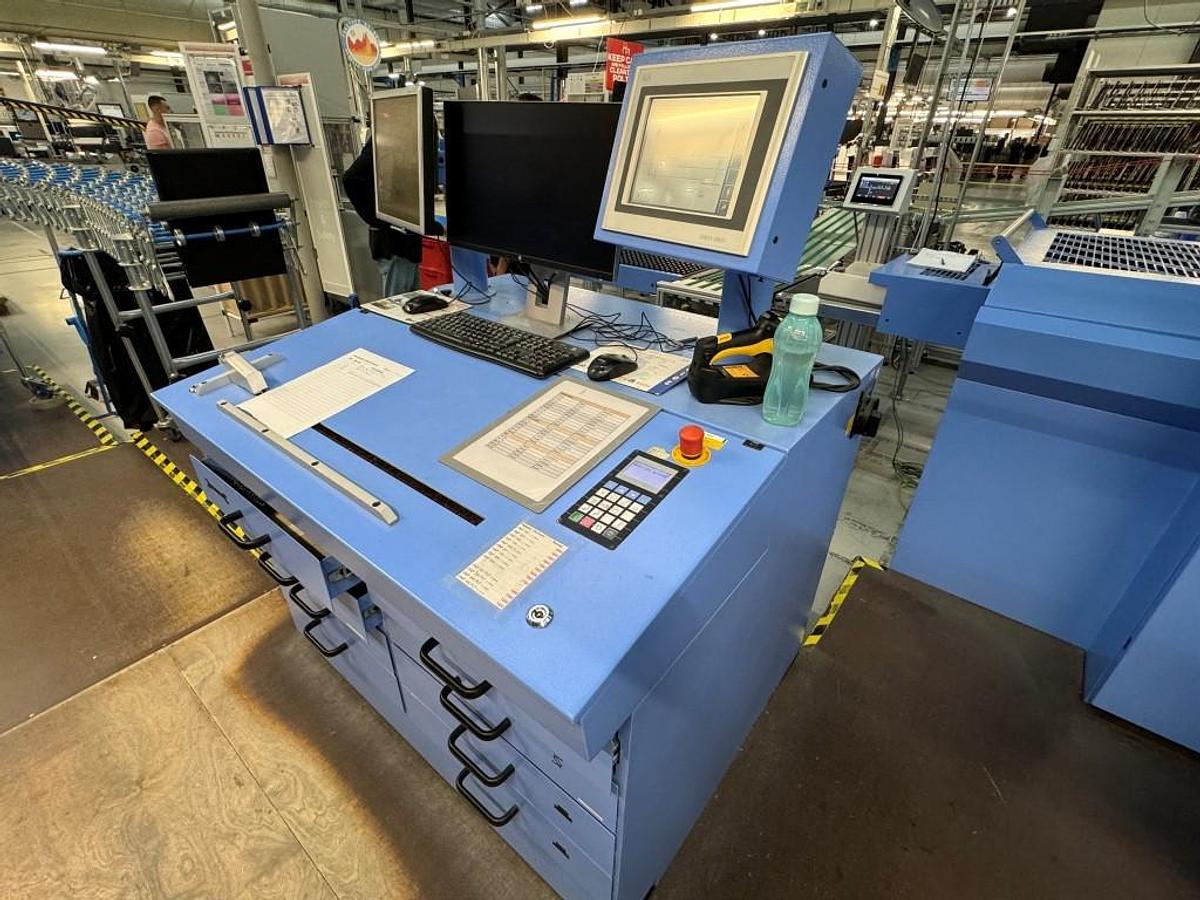

• commander with touchscreen monitor
• bookblock infeed with reject (barcode check)
• starwheel feeder
• cold glue gluing station with pump
• hotmelt nozzle gluing system for joint-gluing with ROBATECH premelter
• case prestacking conveyor
• case magazine
• case transport system with reject (barcode check)
• casing-in machine
• delivery to the left with tiltable conveyor

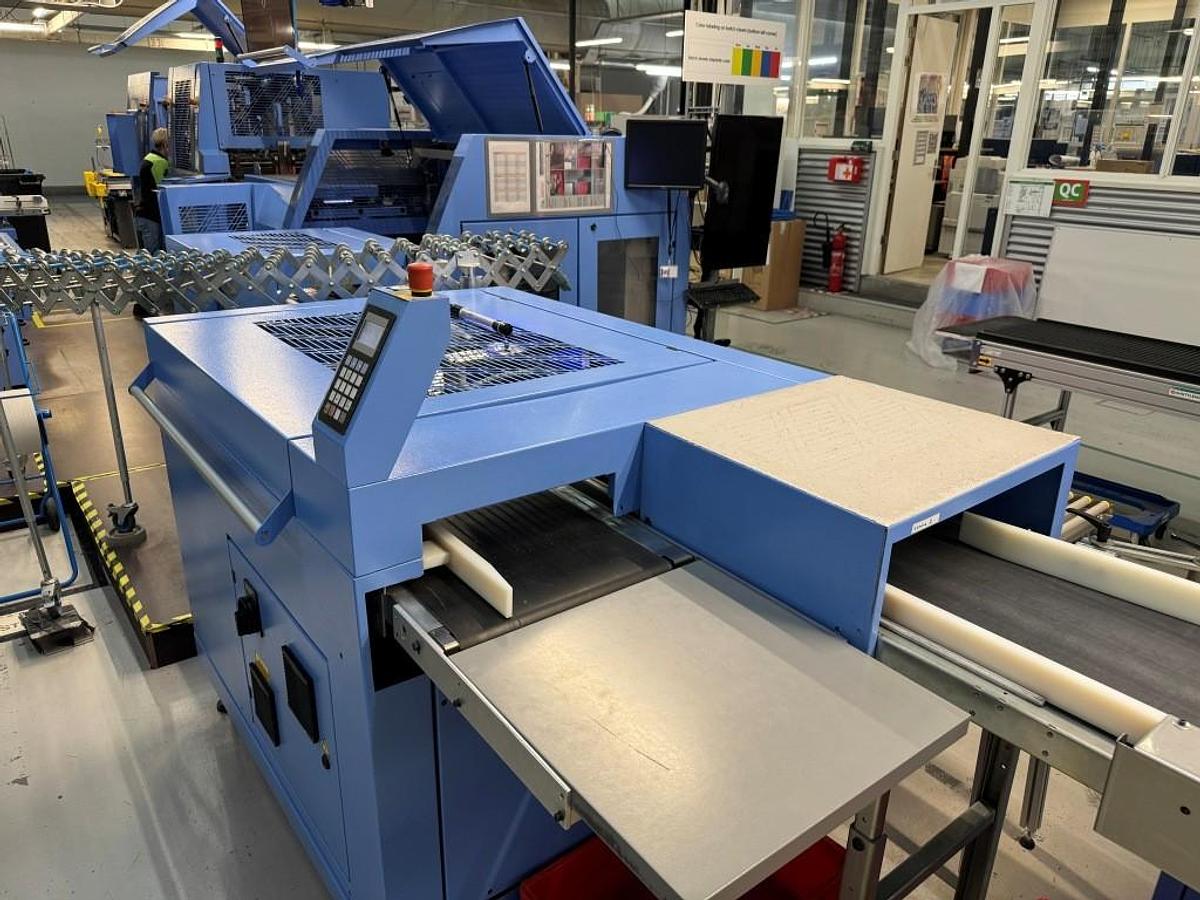

EP340/L forming and pressing machine

• AMRYS automatic adjustment system
• servo-controlled press for spine forming
• straight infeed
• delivery to the left with delivery conveyor

Technical specifications:

mechanical speed: up to 35 cycles/min

size range book block max.: 380 x 270 x 80 mm

size range book block min.: 100 x 100 x 4 mm

size range book case open max.: 390 x 670 x 5 mm

size range book case open min.: 105 x 156 x 1 mm
