MULLER MARTINI 3027-22 ACORO A7

MULLER MARTINI Perfect Binding Line 3027-22 ACORO A7

year 2007

Overview:

3693 gathering machine

3027-22 ACORO A7 perfect binder

transport and drying line

3671 MERIT S three knife trimmer (year 2000)

CB 16 book counter stacker (year 1999)

Configuration:

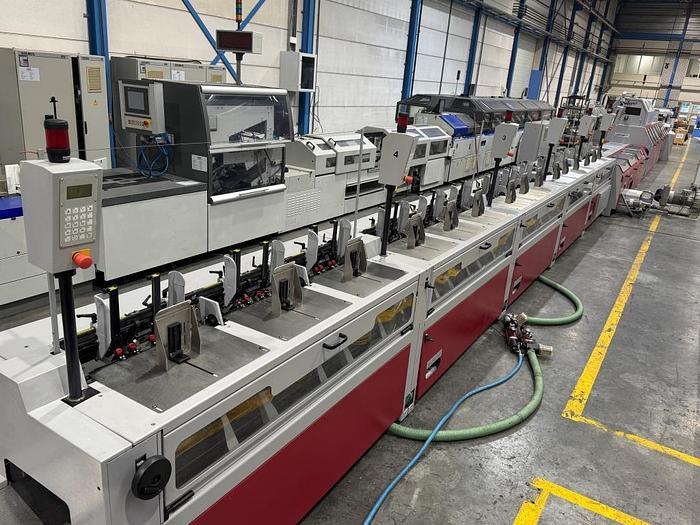

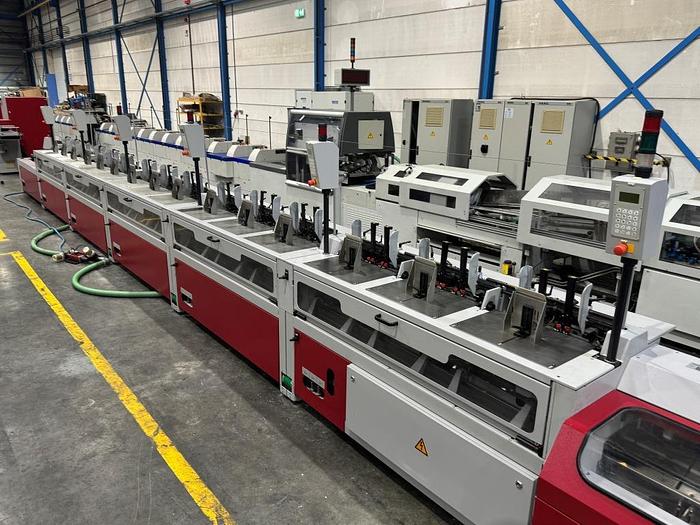

3693 gathering machine

• handfeeding
• 15 stations
• automatic signature thickness control ASAC and automatic signature type control ASIR 3
• reject unit 3715
• set-up element
• intermediate element
• book block feeder 3642
• transfer to the binder
• converter compressed air to vacuum PIAB

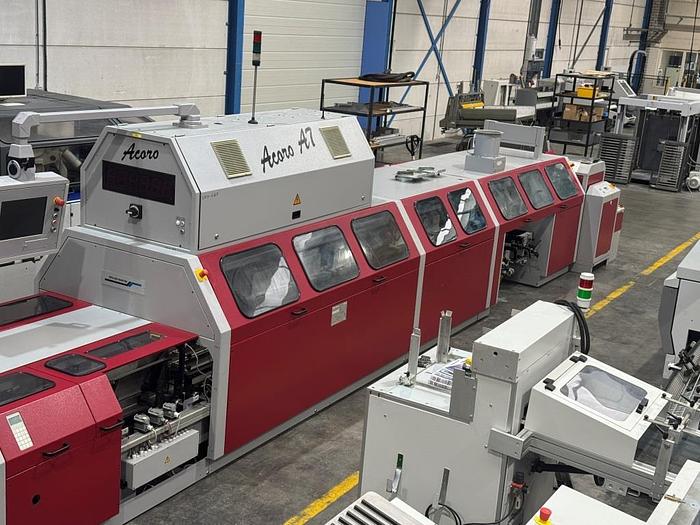

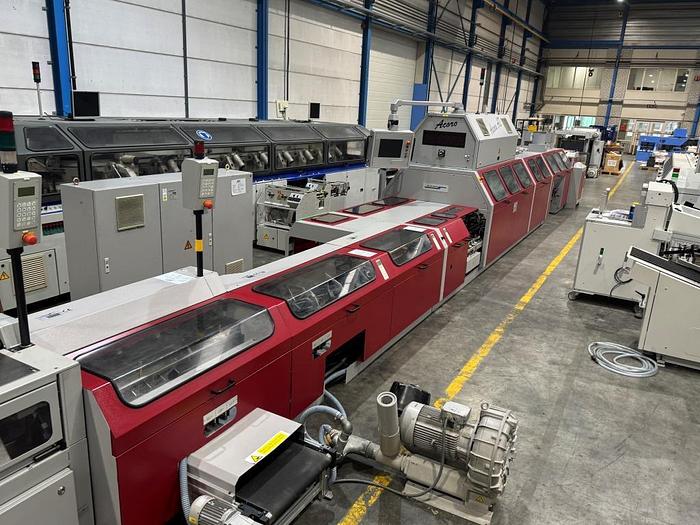

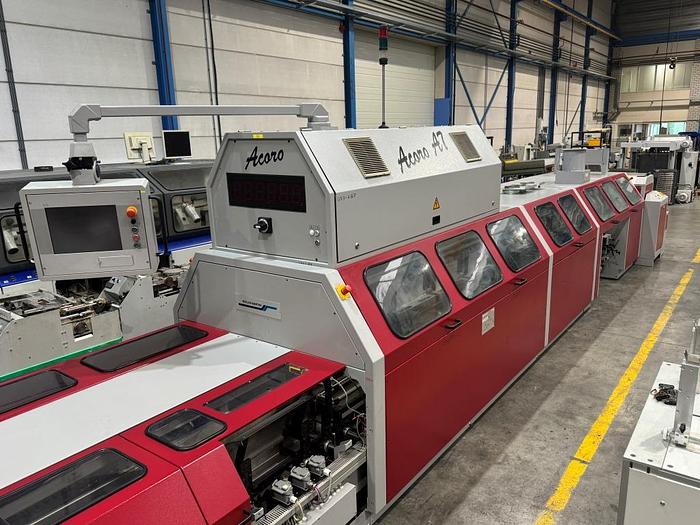

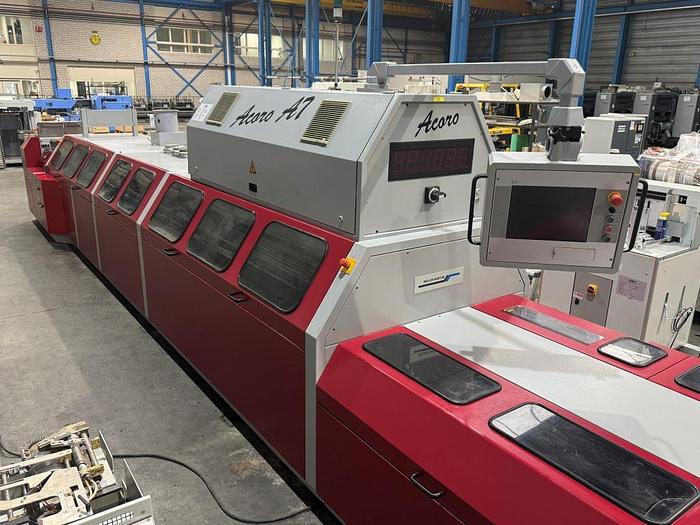

3027-22 ACORO A7 perfect binder

• 22 clamps
• colour monitor with touch screen
• book measuring table
• main milling station
• 2 separate spine preparing units (without dust exhaust system)
• 1^st Hotmelt spine gluing unit
• Premelter for spine gluing unit type ICS C80
• Hotmelt side gluing unit with
• premelter for side gluing unit
• 2^nd Hotmelt spine gluing unit (without premelter)
• interchangeable PUR spine nozzle gluing unit with premelter type Meler Micron Pur

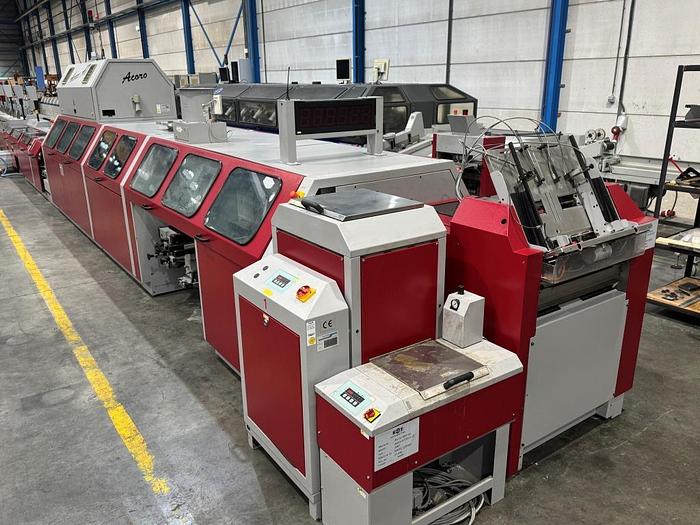

• drum cover feeder with vacuum pump
• scoring station
• 2 pressing stations
• lay down device

Technical specifications:

mechanical speed: up to 7.000 cycles/h

size range max.: 430 x 320 x 60 mm

size range min.: 140 x 100 x 3 mm

transport and drying line

• length: approx 60 meters
• incl. emergency delivery

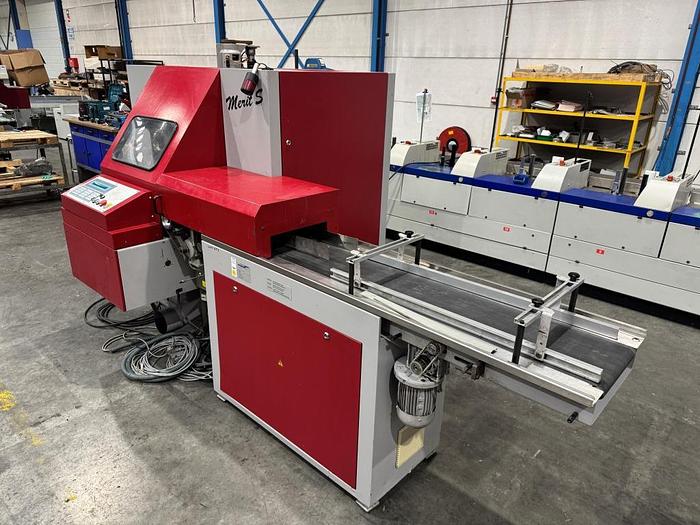

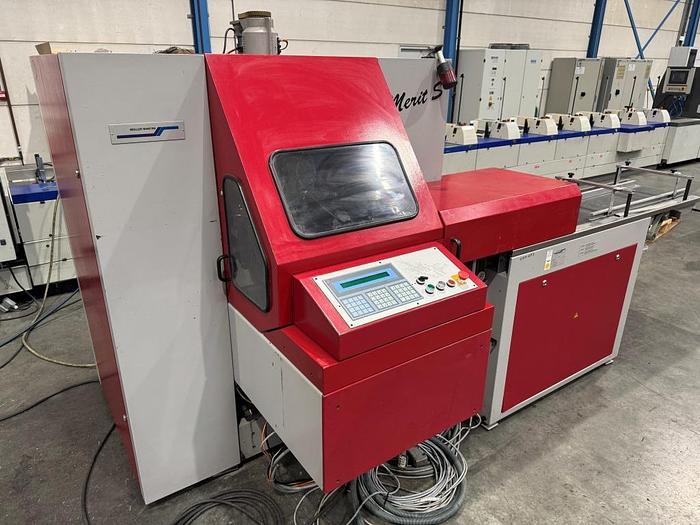

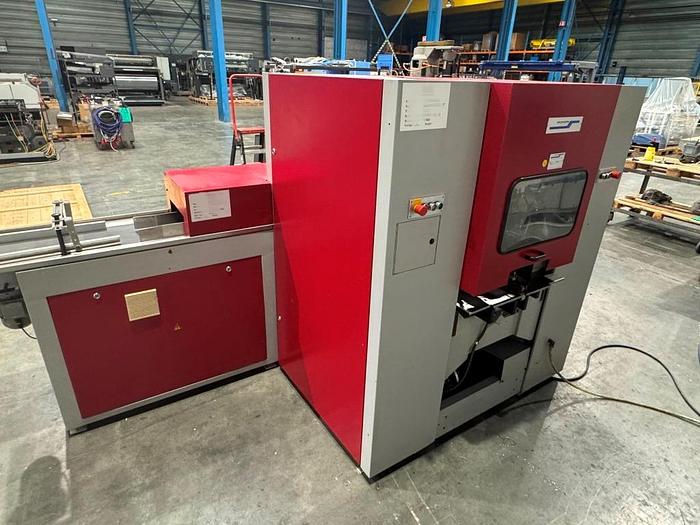

3671 MERIT S three knife trimmer (year 2000)

• right hand infeed
• standard cutting tables
• knife setting gauge

Special equipment:

• 2 set of knives

Technical specifications:

mechanical speed: up to 4.000 cycles/h

size range uncutted max.: 384 x 320 mm

size range uncutted min.: 140 x 73 mm

size range cutted max.: 304 x 310 mm

size range cuttes min.: 136 x 70 mm

book thickness: 2 - 80 mm

CB 16 book counter stacker (year 1999)

• with turning device
• delivery to the right

Technical specifications:

mechanical speed: up to 18.000 cycles/h

size range max.: 450 x 340 x 70 mm

size range min.: 140 x 100 x 3 mm
