KOLBUS KM 410.B

KOLBUS Perfect Binding Line KM 410.B

year 2003

Overview:

ZU 841.B gathering machine

KM 410.B perfect binder

transport and drying line

HD 150.B high capacity three knife trimmer (year 2005)

Configuration:

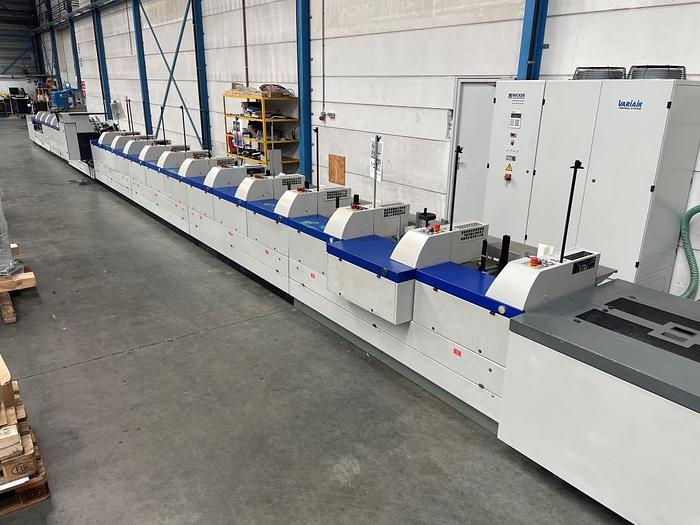

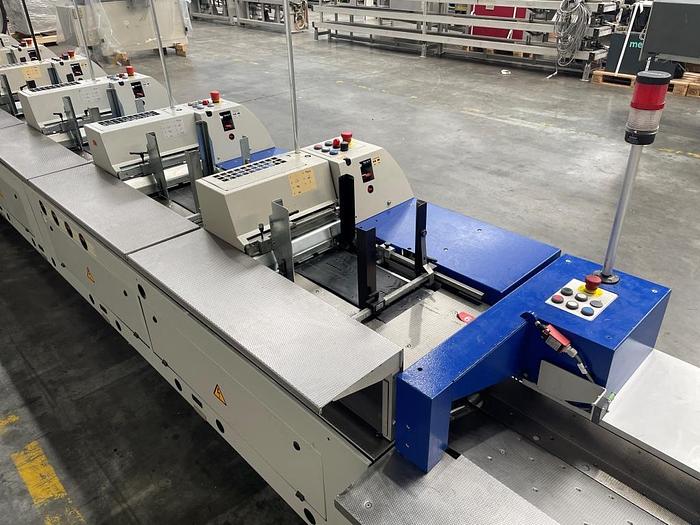

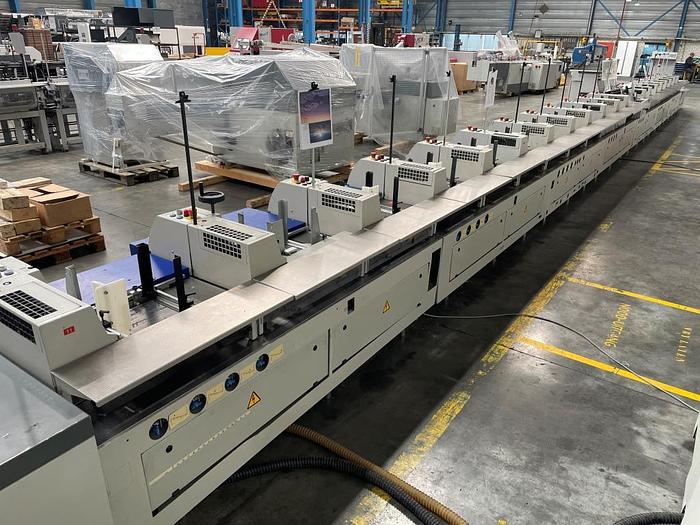

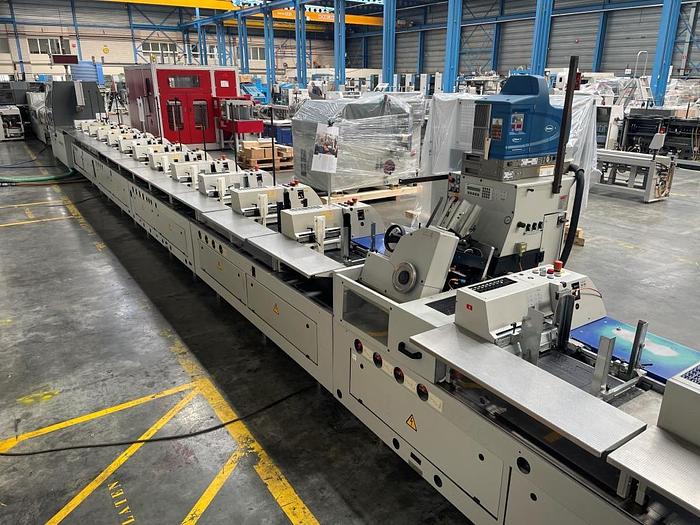

ZU 841.B gathering machine

• handfeeding one person
• 21 stations with optical sheet control
• 1 feeder for signatures with laps to be bound
• 1 card gluer with NORDSON PROBLUE 4 hotmelt gluing unit
• set up element
• reject unit AS 841 to the left
• transfer to the binder
• BECKER air-center VARIAIR (year 2005)

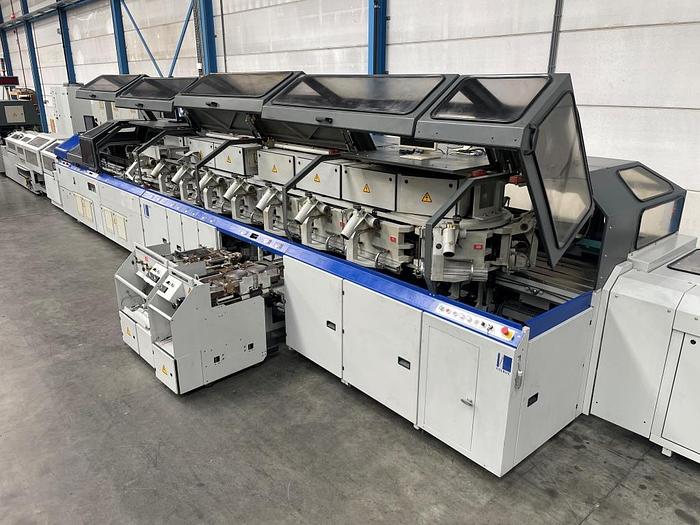

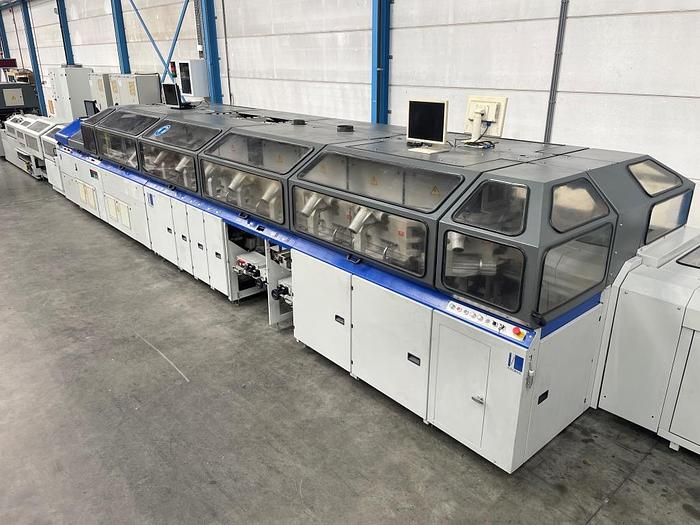

KM 410.B perfect binder

• Copilot system with touch screen

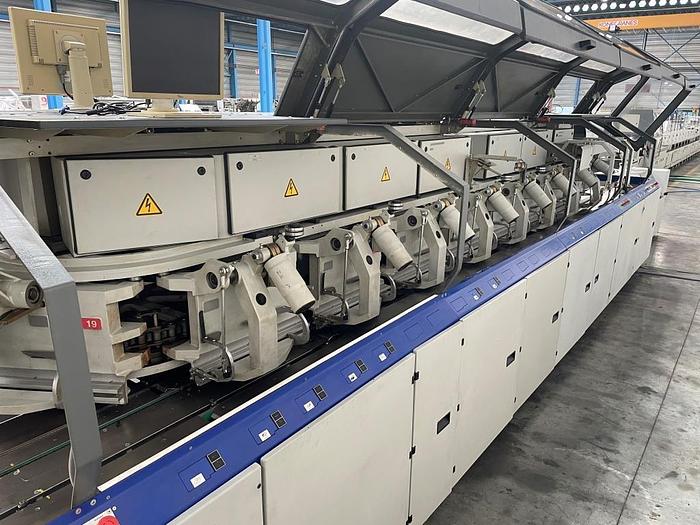

• 20 clamps
• main milling station
• 3 spine preparing units
• without dust extraction system (machine was connected to a central dust extraction system)

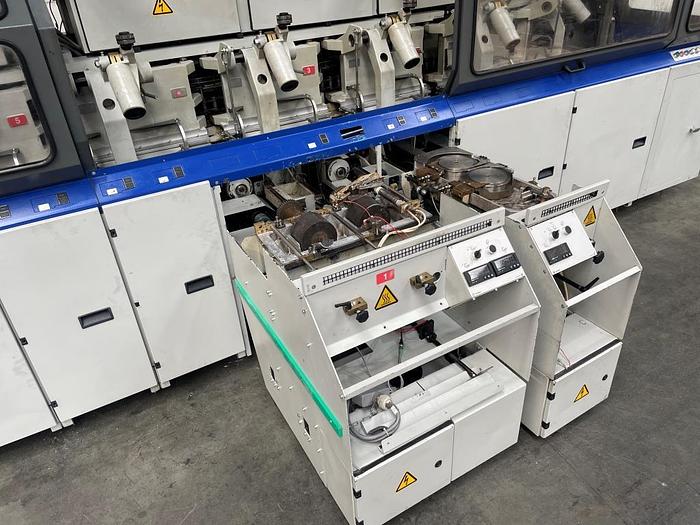

• interchangeable hotmelt spine gluing unit
• ROBATECH ICS C160 premelter
• interchangeable PUR nozzle spine gluing unit EP 48V (year 2008)
• NORDSON DURADRUM DK 200 PUR premelter spine gluing unit (year 2008)
• interchangeable hotmelt side gluing unit 3 mm
• ROBATECH ICS C30 premelter

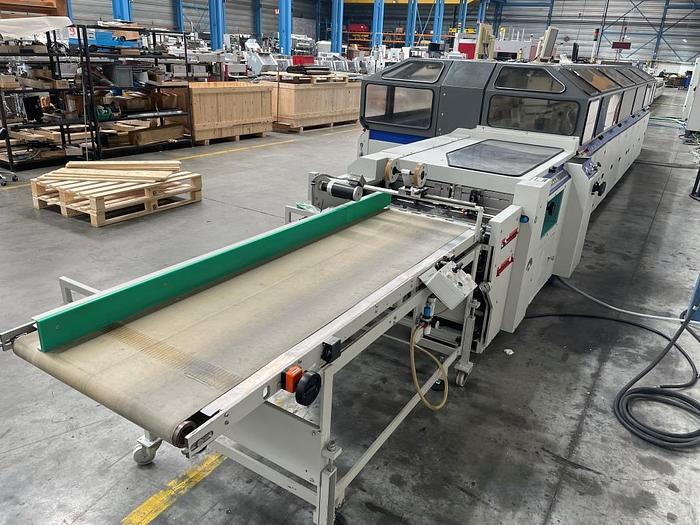

• non-stop stream cover feeder NA 400.B with feeding conveyor
• scoring station
• 2 pressing stations
• lay down device

Technical specifications:

mechanical speed: up to 12.000 cycles/h

size range max.: 510 x 290 x 65 mm

size range max.: 510 x 305 x 20 mm

size range min.: 105 x 100 x 3 mm

transport and drying line

• length: approx. 20 meters
• incl. emergency delivery

HD 150.B high capacity three knife trimmer (year 2005)

• right hand infeed
• standard cutting tables (no. 7 - 18)
• knife setting gauge
• cut counter

Special equipment:

• 2 sets of knives

Technical specifications:

mechanical speed: up to 6.000 cuts/h

feeding speed: up to 12.000 single products/h, thicker than 5 mm

size range untrimmed max.: 310 x 400 x 80 mm

size range trimmed max.: 300 x 388 x 80 mm

size range trimmed min.: 100 x 120 x 2 mm

stack height max.: 80 mm
