SIGLOCH SB 3000/2

SIGLOCH Book Block Production Line SB 3000/2

year 2004

For gluing and lining of thread sewn book blocks.

Overview:

VAM End Papering Machine

SB 3000/2 Book-Back Gluing and Back-Lining Machine

Drying System

DNH Double-Line Nipping Press

SOLEMA ADAGIATORE SX Lay-down Device

Configuration:

VAM End Papering Machine

• inline production
• cold glue gluing system
• straight delivery

Technical specifications:

mechanical speed: up to 70 cycles/min

size range untrimmed max.: 420 x 320 x 80 mm

size range untrimmed max.: 510 x 200 x 80 mm

size range untrimmed min.: 120 x  90 x  3 mm

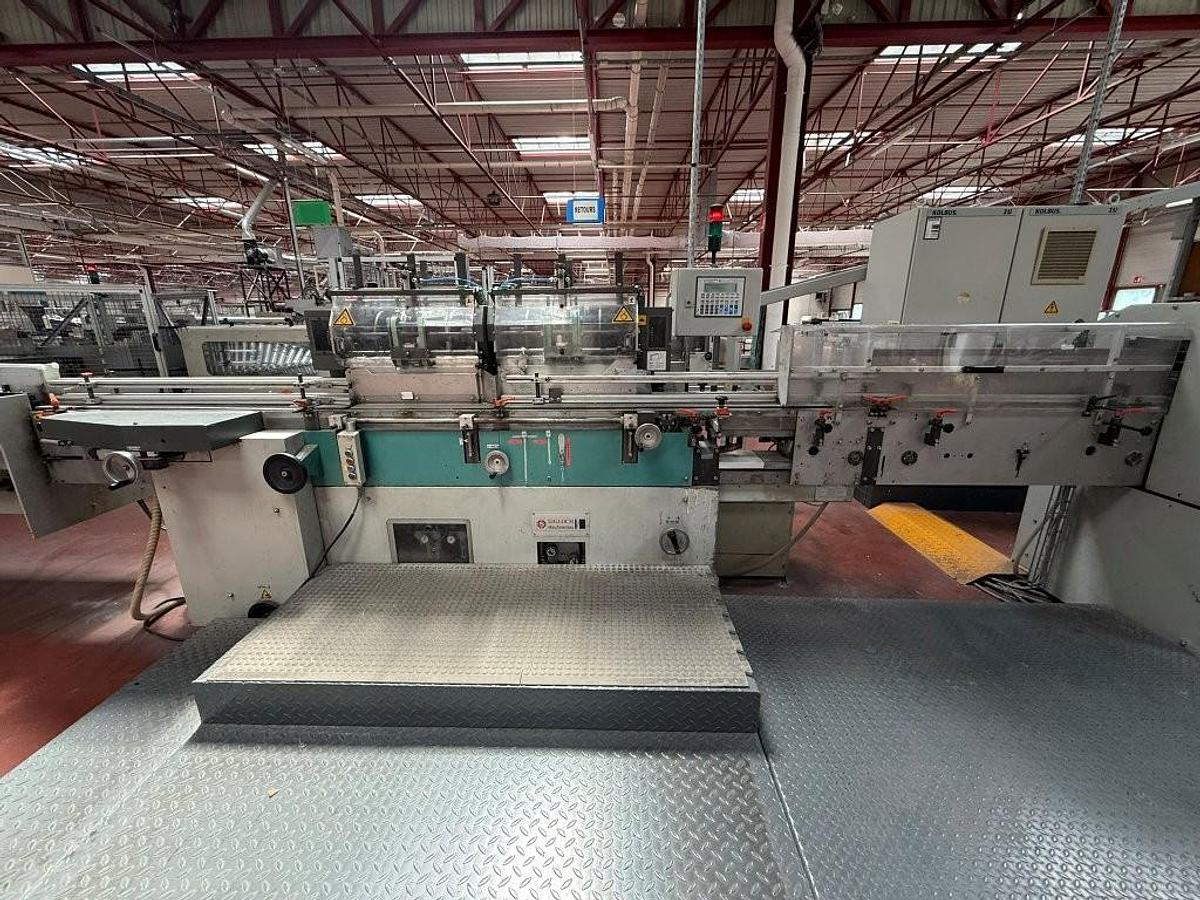

SB 3000/2 Book-Back Gluing and Back-Lining Machine

• feeding channel for handfeeding
• interleaved transport chain
• 1^st gluing station with cold glue spine gluing unit
• IR heating
• 2^nd gluing station with Hotmelt spine gluing unit and premelter
• lining strip forming and rub-down station

Technical specifications:

mechanical speed: up to 70 cycles/min

size range untrimmed and pressed max.: 510 x 320 x 80 mm

size range untrimmed and pressed min.: 100 x  90 x  3 mm

Drying System

• single-line vertical transport with IR-heater
• 180 degrees curve
• cycle-dividing switch

DNH Double-Line Nipping Press

• double-line throughfeed
• twin-line version permits double pressing duration
• straight delivery

Technical specifications:

mechanical speed: up to 2 x 40 = 80 cycles/min

size range untrimmed max.: 510 x 320 x 80 mm

size range untrimmed min.: 100 x  90 x  3 mm

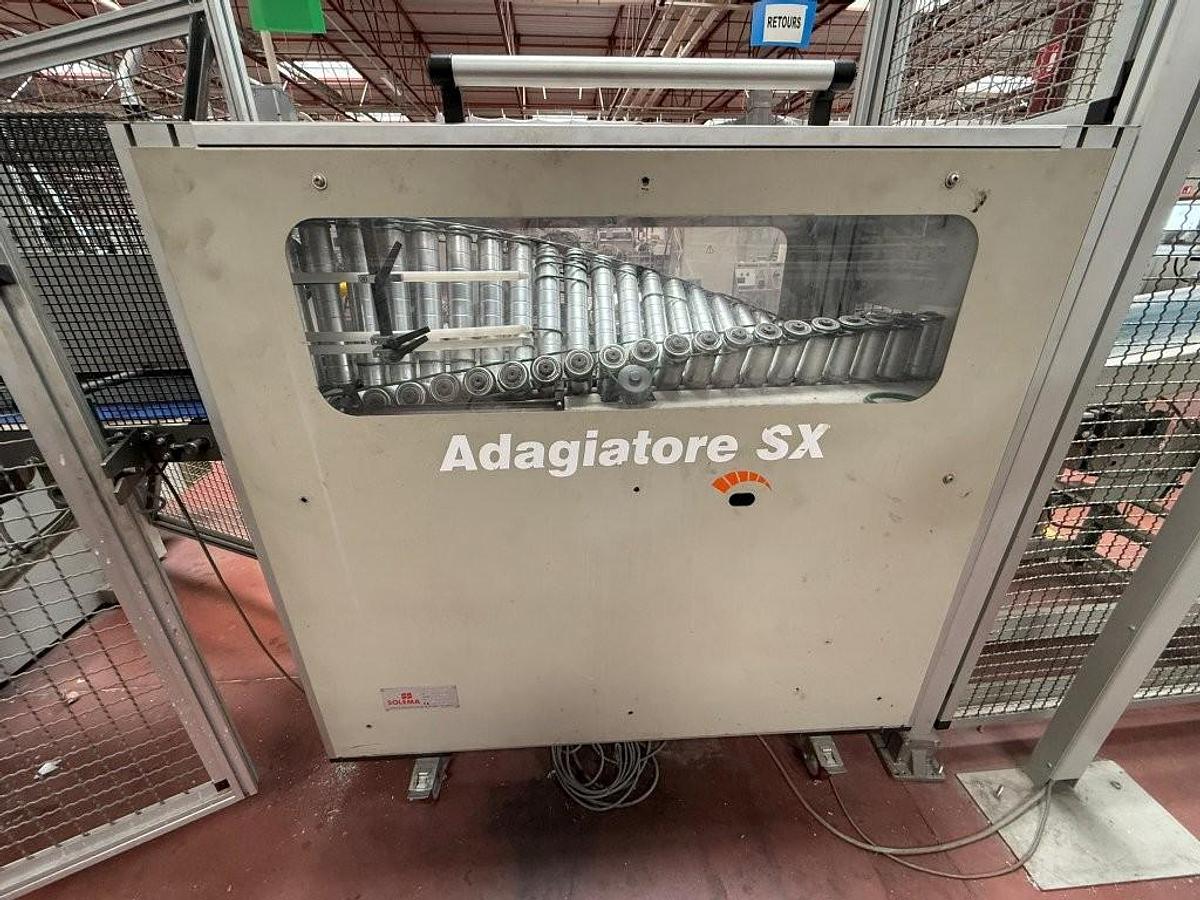

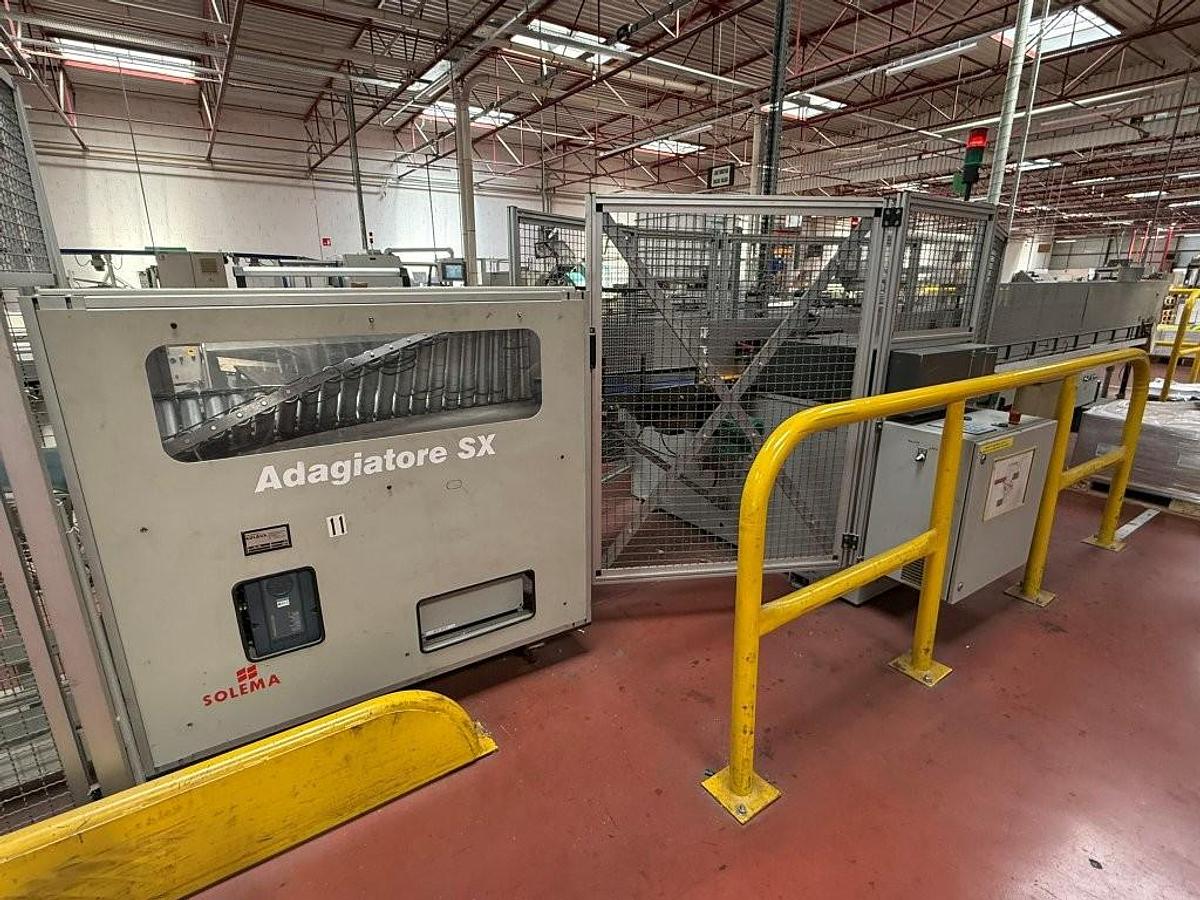

SOLEMA ADAGIATORE SX Lay-down Device

• lay-down to the left
