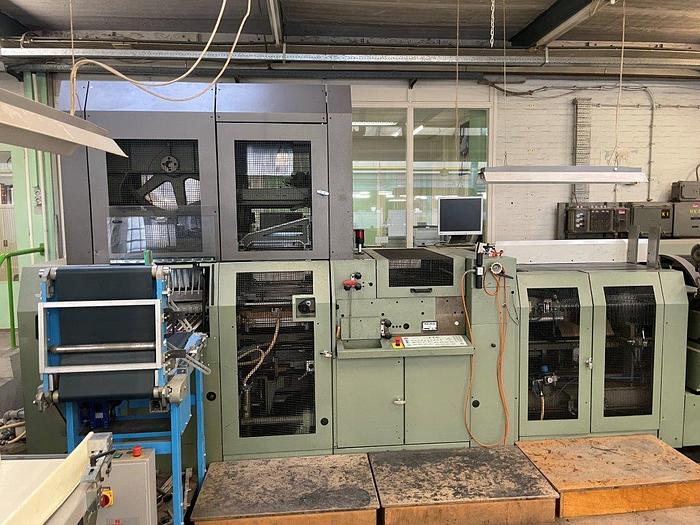

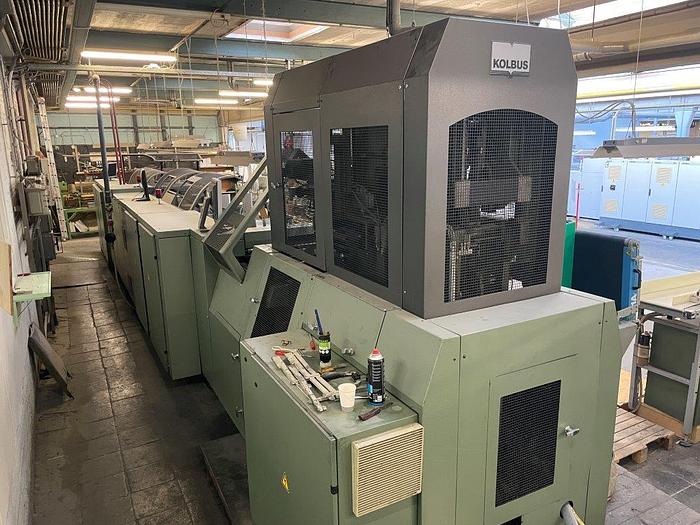

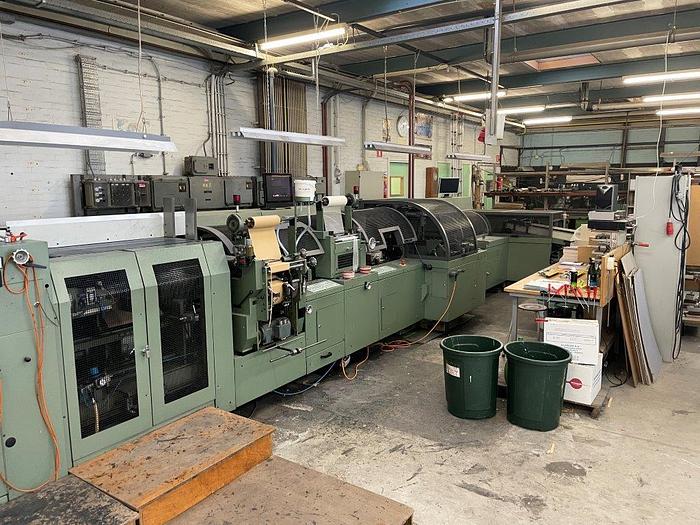

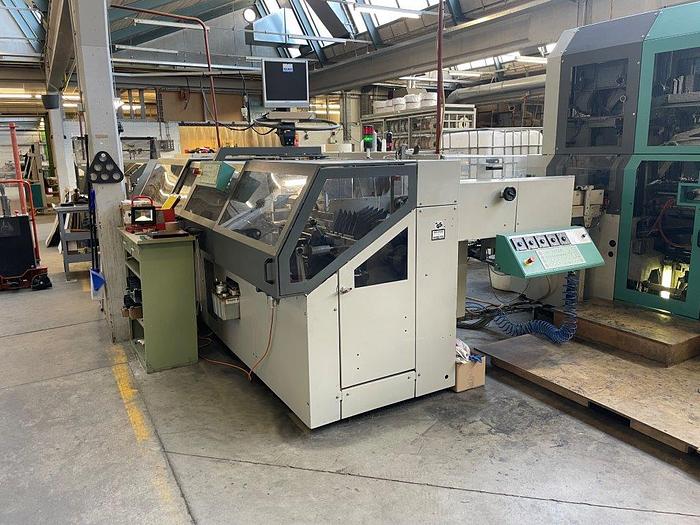

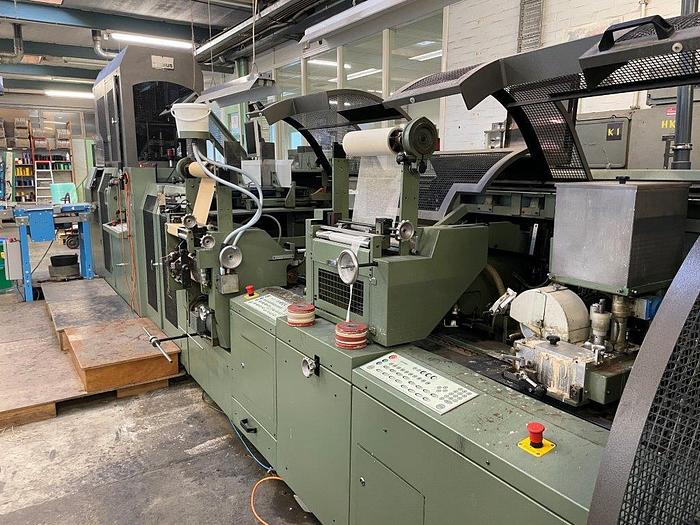

KOLBUS BF 525

KOLBUS Book Production Line BF 525

year 1996 / 2000 / 2002

For rounding, backing and casing-in of book block in hard, flexible or plastic cases.

Overview:

BF 525 book production line

FE 603 book forming and pressing machine (year 2000)

DS 391 stacker (year 2002)

Configuration:

BF 525 book production line

• copilot system
• infeed conveyor from the left, barrier and star feeder
• hot air heater
• automatic block thickness control
• rounding and backing station
• 5 stations-frame:

2 gluing stations

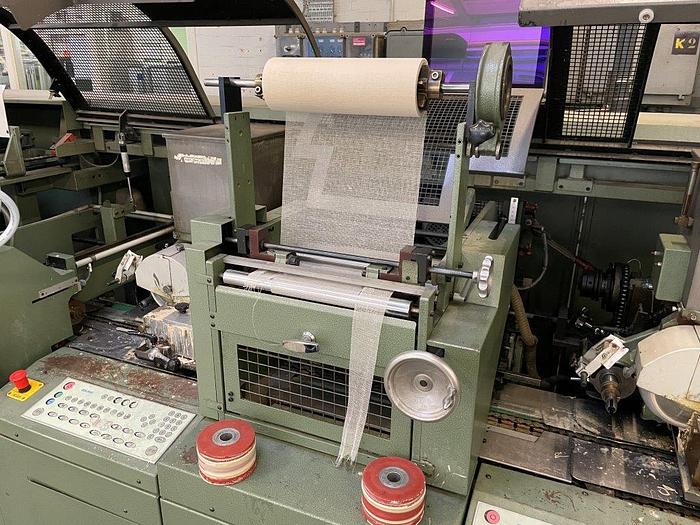

gauzing station

marker ribbon gluing device

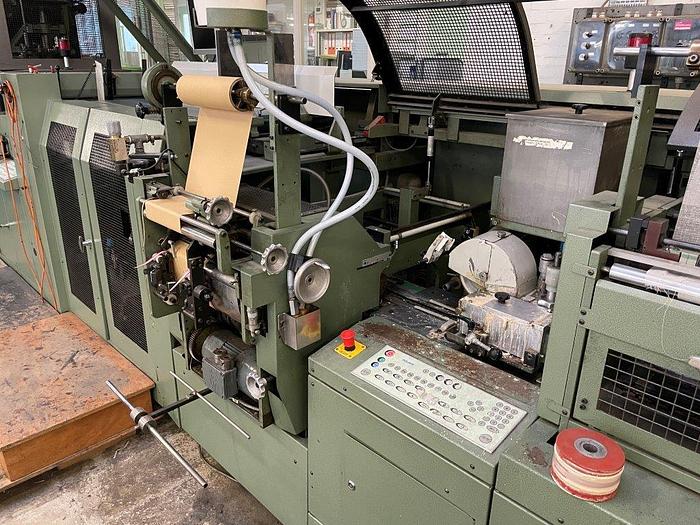

backlining and headbanding station

pressing station with teflon band with an integrated foam rubber rub-down element

• case prestacking conveyor
• case magazine
• case bending machine
• case forming station
• casing-in station
• delivery with delivery conveyor to the left

Technical specifications:

mechanical speed: up to 50 cycles/min

size range book block max.: 375 x 270 x 80 mm

size range book block min.: 125 x 100 x 4 mm

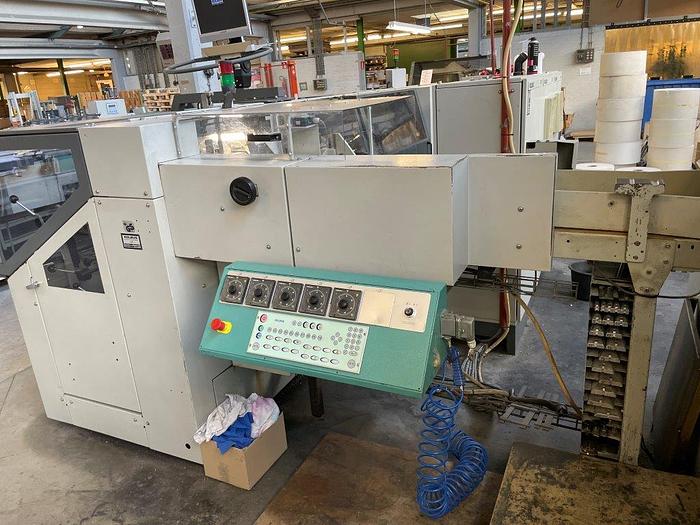

FE 603 book forming and pressing machine

• right hand infeed
• pressing station
• integrated hydraulic
• straight delivery

Technical specifications:

mechanical speed: up to 62 cycles/min

size range max.: 385 x 315 x 90 mm

size range min.: 100 x 70 x 6 mm

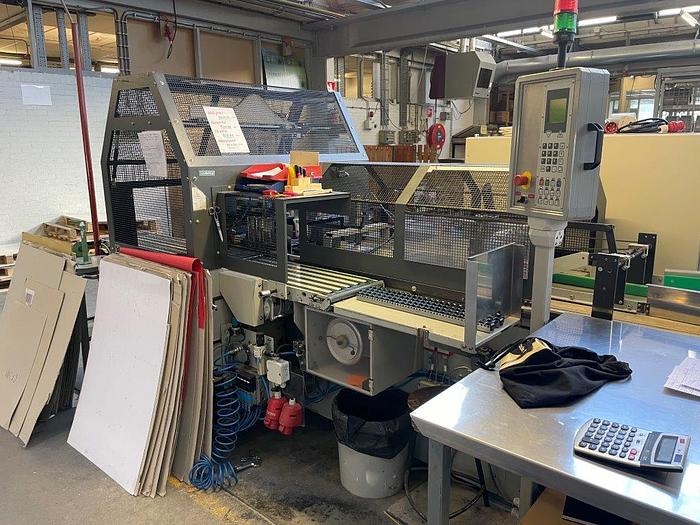

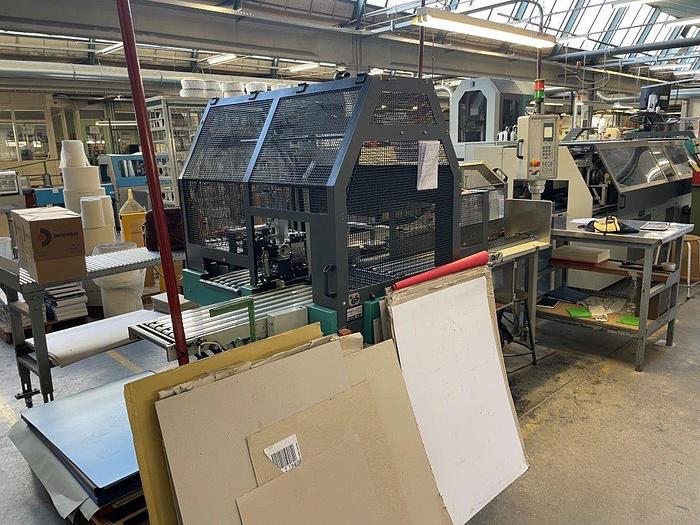

DS 391 stacker

• turning device
• pile delivery against moving direction
• pass through equipment with straight delivery

Technical specifications:

mechanical speed: up to 65 cycles/min

size range max.: 382 x 305 x 80 mm

size range min.: 100 x 100 x 4 mm

stack height max.: 325 mm
