SIGLOCH BBL 31/2

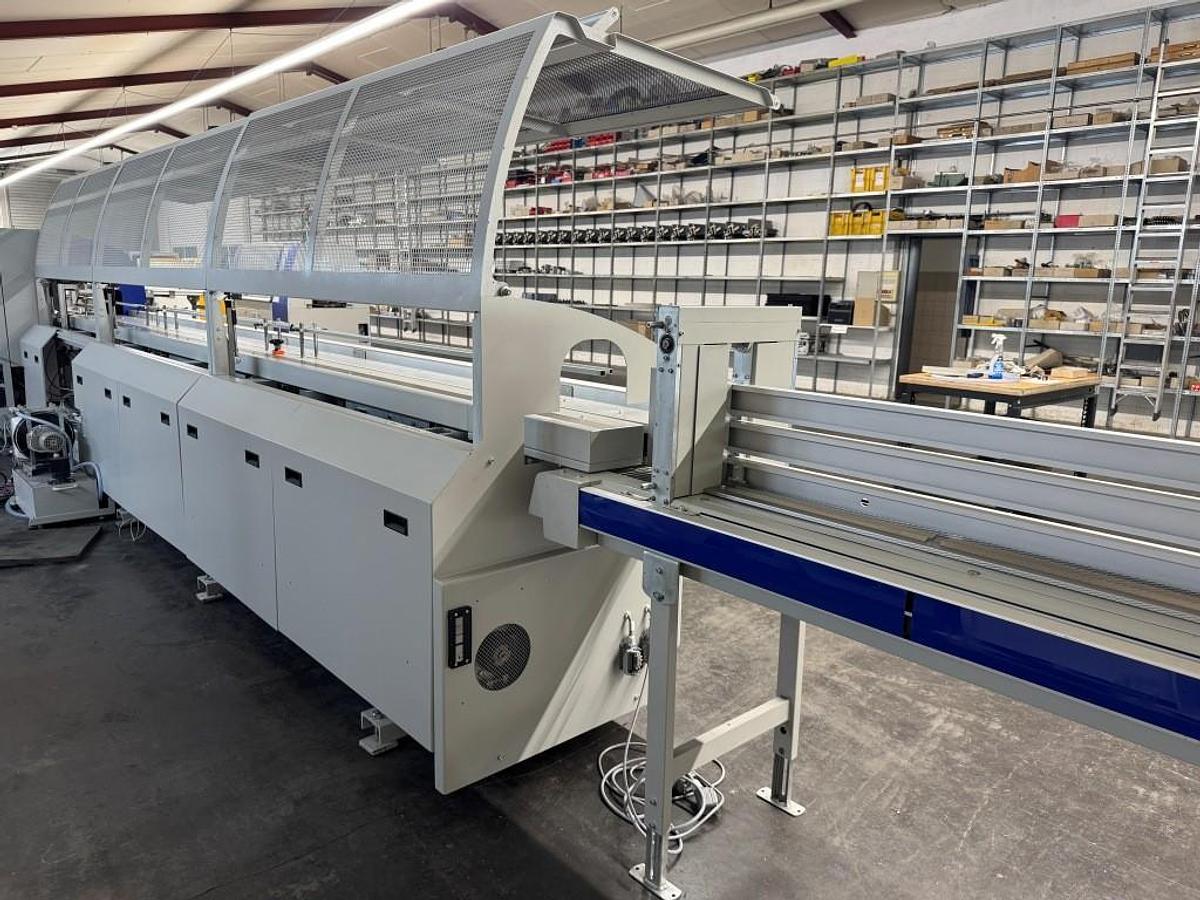

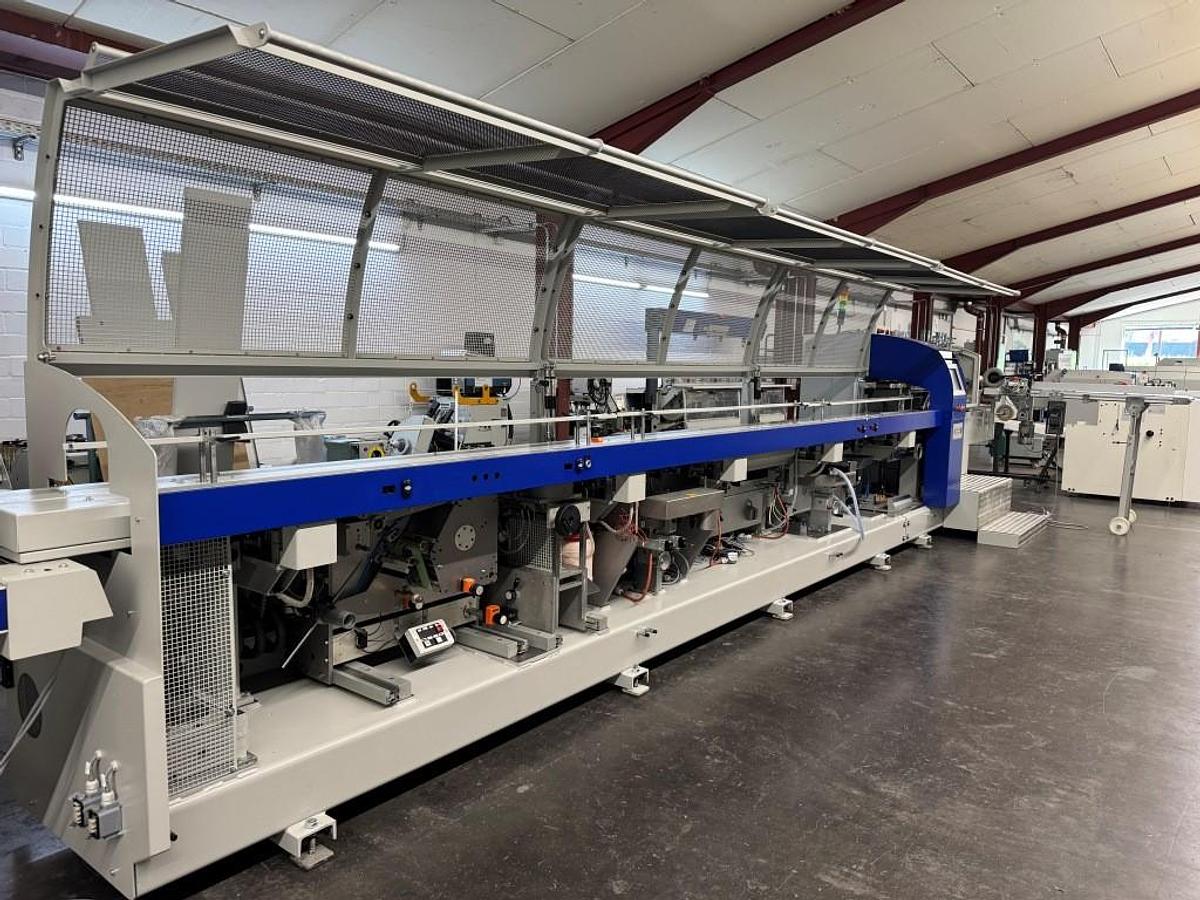

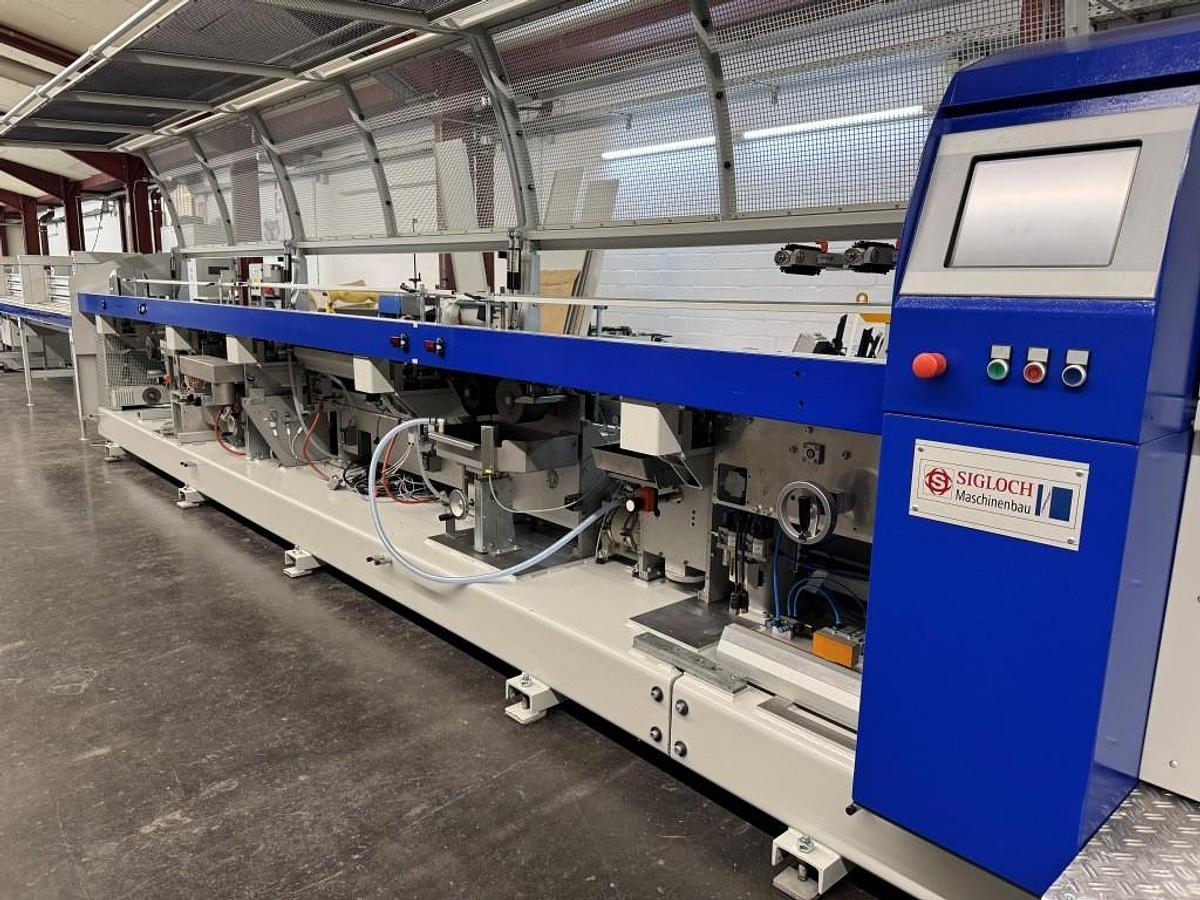

SIGLOCH Book Gluing and Lining Machine BBL 31/2

year 2007

The SIGLOCH guling lines are classics and bestsellers for gluing thread-sewn and thread-sealed book blocks. The compact design enables efficient and high-quality production of book blocks in the smallest of spaces. The maximum speed of 30 cycles/min is absolutely suitable for todays print run sizes.

Overview:

BBL 31/2 book gluing and lining machine

KOLBUS TS.TF vertical transport (year 2016)

NH-4 nipping press (year 2008)

SOLEMA RADDRIZZATORE DX lay-down device (year 2005)

Configuration:

BBL 31/2 book gluing and lining machine

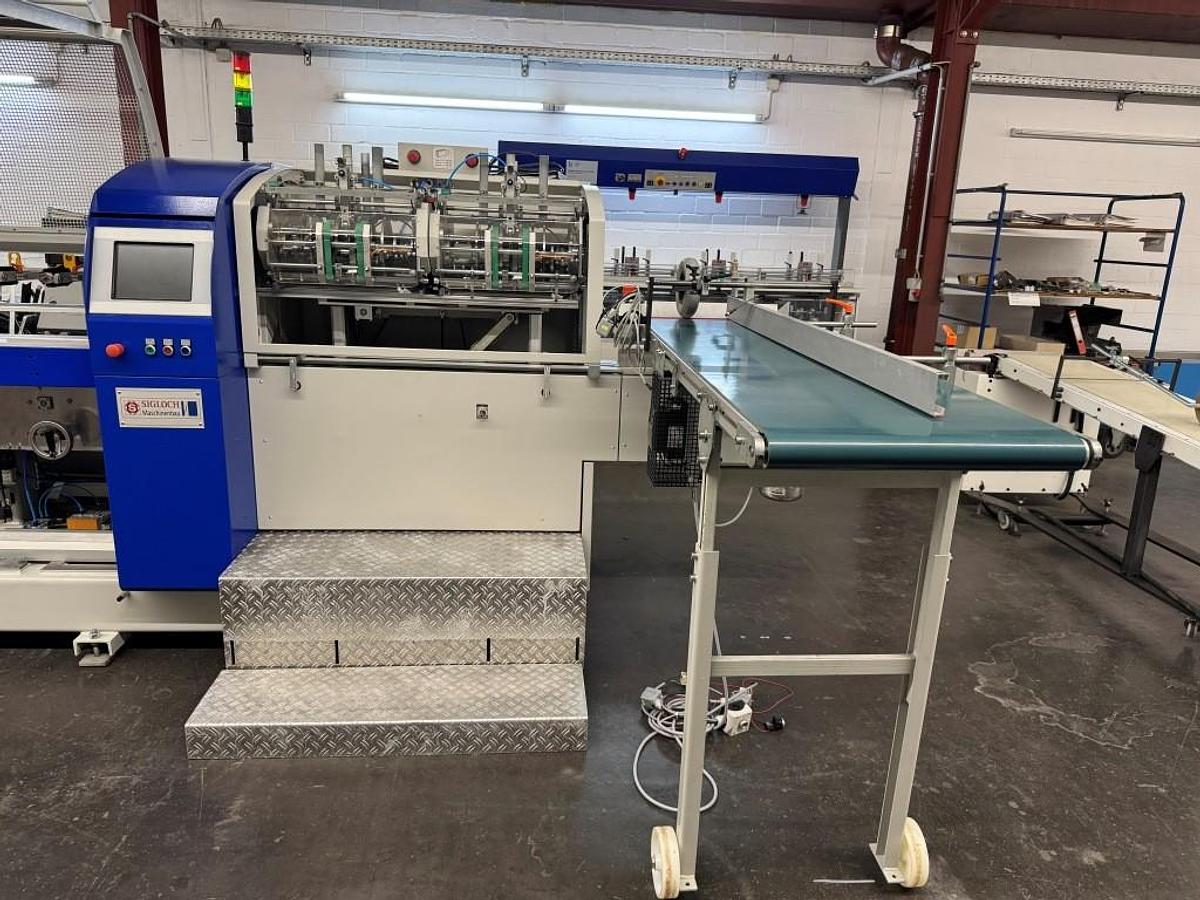

• infeed with feeding conveyor
• touchscreen
• VAS end sheet feeding station with cold glue
• 1st gluing station dispersion glue/cold glue
• IR intermediate drying
• 2nd gluing station EVA hotmelt incl. premelter PM-45
• side gluing
• lining station

Technical specifications:

mechanical speed: up to 30 cycles/min

size range max.: 300 x 400 x 80 mm

size range min.: 70 x 100 x 2 mm

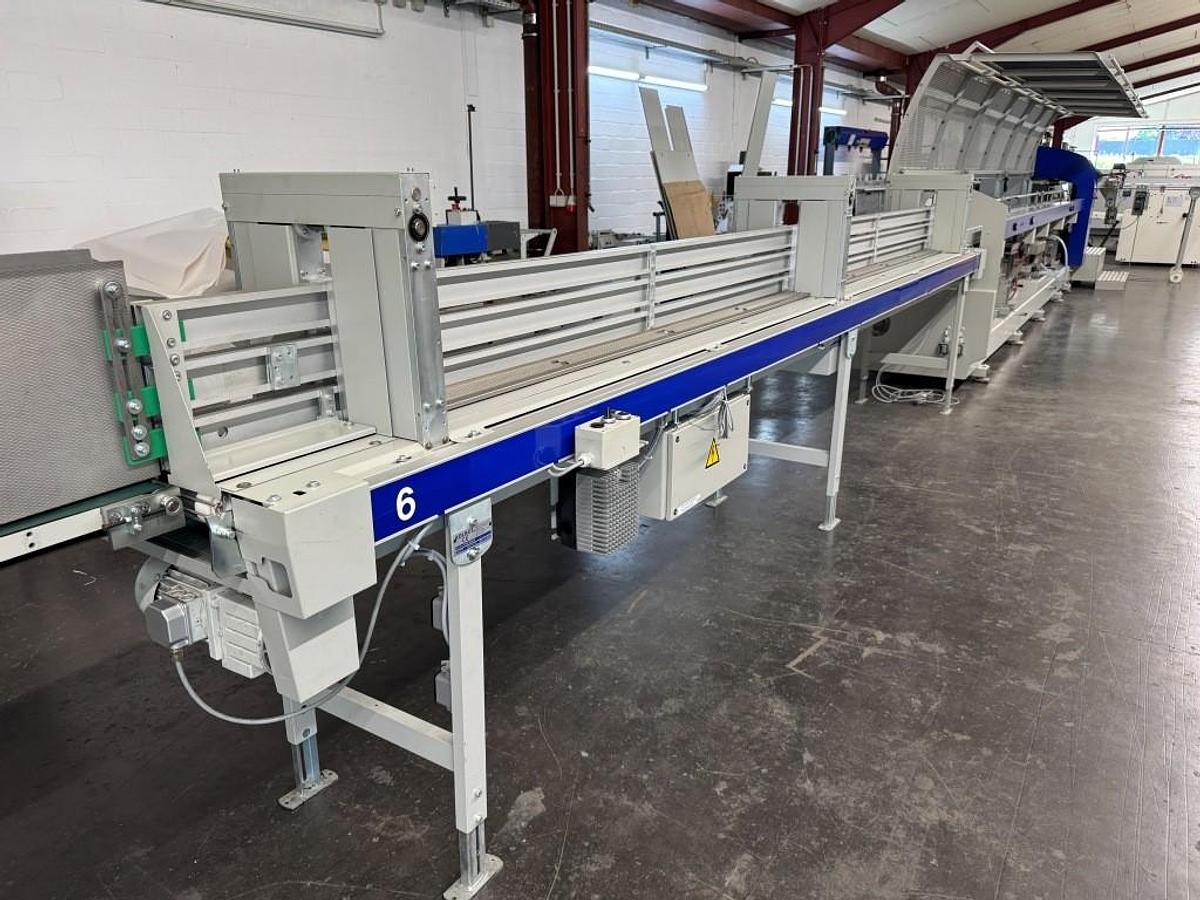

KOLBUS TS.TF vertical transport (year 2016)

• with cooling (3 x)
• length: 5.000 m

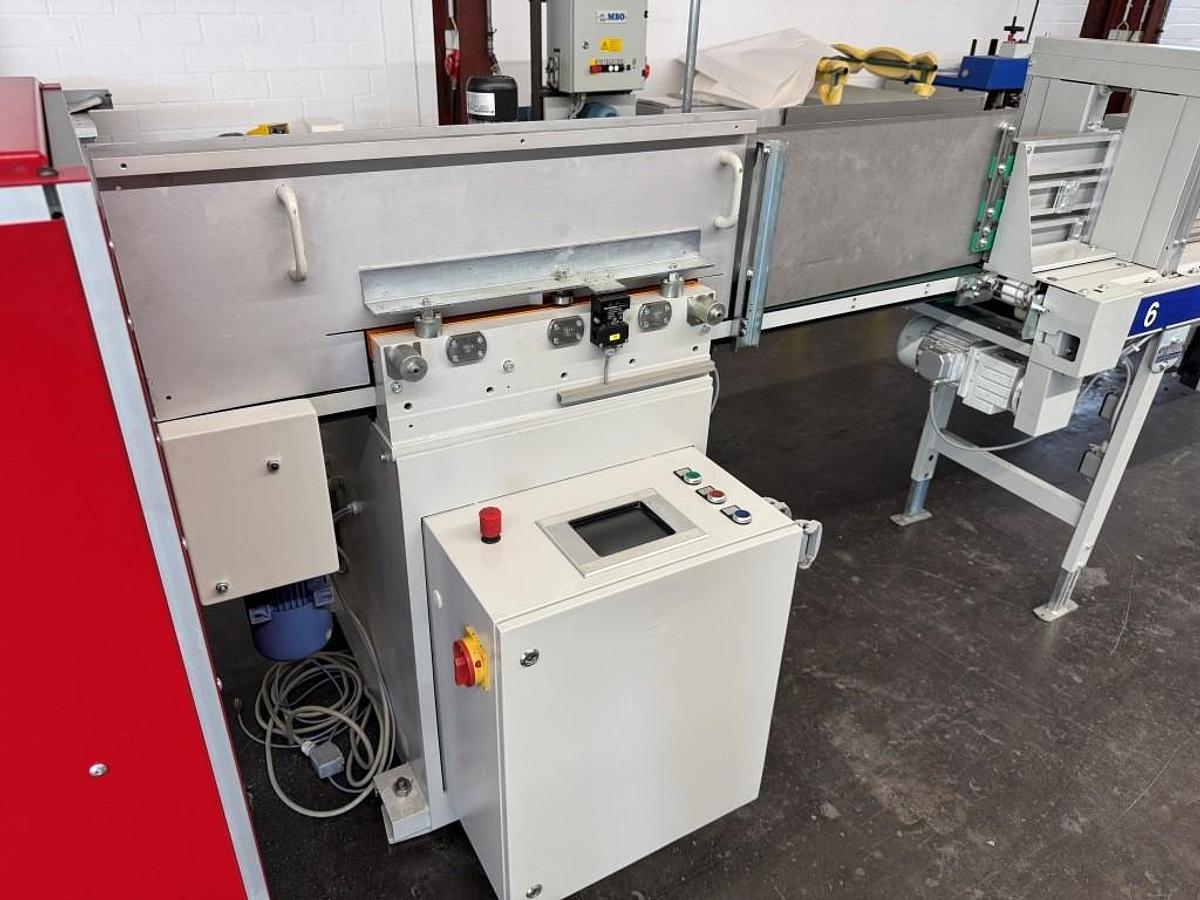

NH-4 nipping press (year 2008)

• cycled feeding conveyor
• single line throughfeed
• single-line pressing station
• automatic delivery out of the pressing station

SOLEMA RADDRIZZATORE DX lay-down device (year 2005)
